You are here: Home1 / Shop2 / RF Switches3 / 50 Ohm Electro-Mechanical RF Switches (Reflective)4 / 1P8T RF Switch DC-18 GHz | 50S-1317+XX-TTL SMA

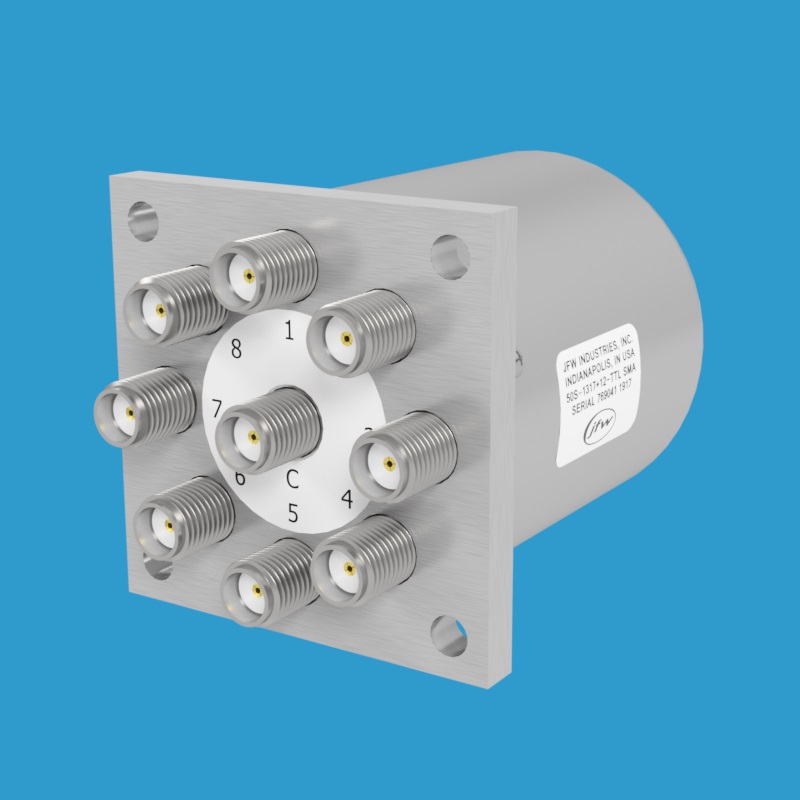

TTL controlled 1P8T reflective electro-mechanical RF switch with SMA female

1P8T RF Switch DC-18 GHz | 50S-1317+XX-TTL SMA

JFW Model #: 50S-1317+XX-TTL
Impedance: 50 Ohm
Switch Configuration: 1P8T
Switch Type: Normally Open, Reflective
Frequency Range: DC-18 GHz
Switching Speed: 15 mS
RF Connector: SMA female
DC Supply: +12, +15, +24, +28 Vdc
Control Logic: TTL
Documentation: Data Sheet |Drawing

Clear
Categories: 50 Ohm Electro-Mechanical RF Switches (Reflective), RF Switches
  • Description
  • Additional information

Description

Model 50S-1317+XX-TTL is a TTL controlled 50 Ohm electro-mechanical 1P8T RF switch operating DC-18 GHz with SMA female RF connectors.  This RF switch is normally open type and the unused ports are reflective.  The normally open design allows the switch to have an “all off” state.  This 1P8T RF switch has eight control lines.  Each control line is activated with TTL signal levels.  Only one control line can be active at a time.

Additional information

Control Voltages

+12 Vdc, +15 Vdc, +24 Vdc, +28 Vdc

Connector Type

SMA Female
