You are here: Home1 / Shop2 / RF Switches3 / 50 Ohm Electro-Mechanical RF Switches (Reflective)4 / RF Transfer Switch DC-18 GHz | 50S-1361+XX-TTL SMA
TTL controlled electro-mechanical RF transfer switch with SMA female

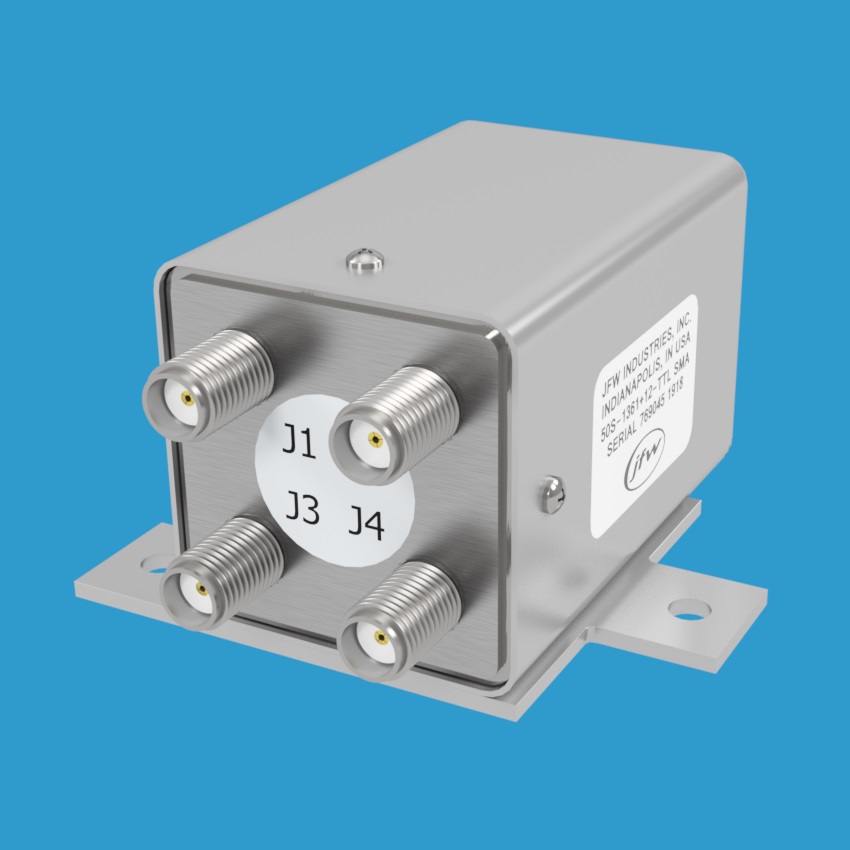

RF Transfer Switch DC-18 GHz | 50S-1361+XX-TTL SMA

JFW Model #: 50S-1361+XX-TTL SMA
Impedance: 50 Ohm
Switch Configuration: Transfer Switch
Switch Type: Failsafe
Frequency Range: DC-18 GHz
Switching Speed: 20 mS
RF Connector: SMA female
DC Supply: +12 Vdc, +15 Vdc, +24 Vdc, +28 Vdc
Control Logic: TTL
Documentation: Data Sheet | Drawing

Clear
Categories: 50 Ohm Electro-Mechanical RF Switches (Reflective), RF Switches
  • Description
  • Additional information

Description

Model 50S-1361+XX-TTL is a TTL controlled 50 Ohm electro-mechanical RF transfer switch operating DC-18 GHz with SMA female RF connectors.  This RF switch is failsafe type. This transfer switch has one control line.  The control line is activated with TTL signal levels.

Additional information

Weight 0.08 lbs
Connector Type

SMA Female

DC Supply

+12 Vdc, +15 Vdc, +24 Vdc, +28 Vdc
