You are here: Home1 / Shop2 / RF Switches3 / High Power Solid-State RF Switches4 / 1P3T RF Switch 100-500 MHz | 50S-1407

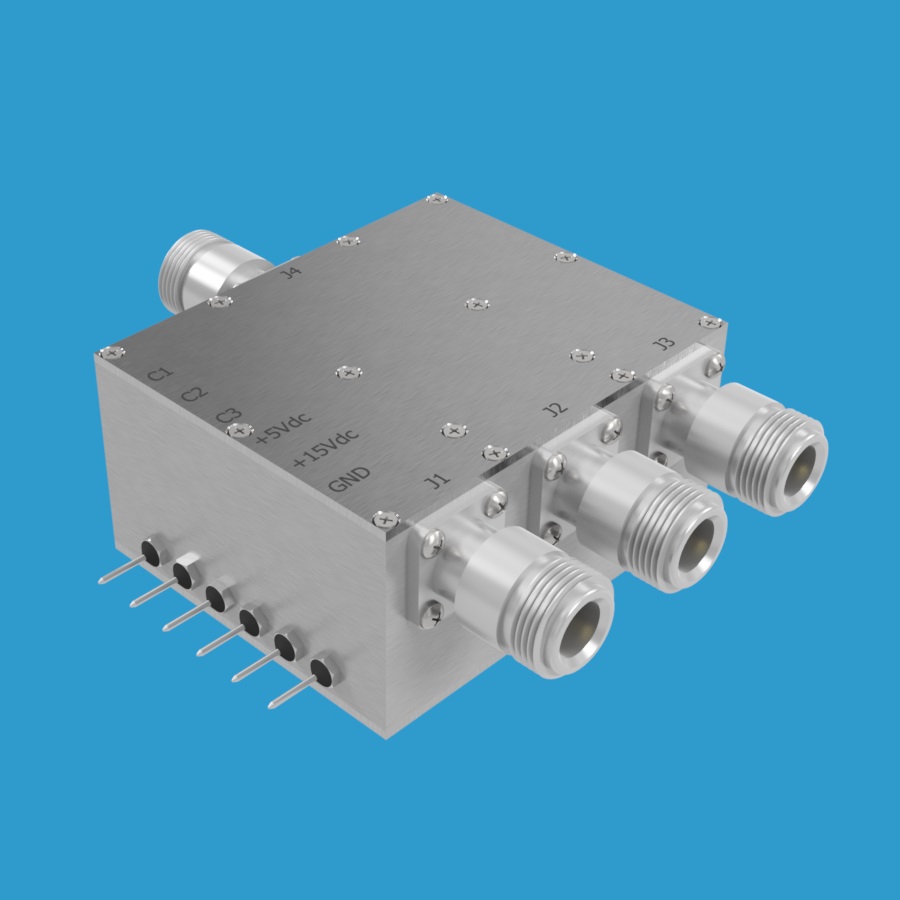

1P3T high power solid-state RF switch with N female

1P3T RF Switch 100-500 MHz | 50S-1407

JFW Model #: 50S-1407
Impedance: 50 Ohm
Configuration: 1P3T solid-state RF switch
Type: Reflective
Frequency Range: 100-500 MHz
Switching Speed: 40 uS
RF Input Power:
250 Watts (cold switch)
20 Watts (hot switch)
Documentation: Data Sheet | Drawing

Clear
Categories: High Power Solid-State RF Switches, RF Switches
  • Description
  • Additional information

Description

Model 50S-1407 is a 50 Ohm solid-state reflective 1P3T RF switch operating 100-500 MHz.  The RF power rating for this 1P3T is 250 Watts (cold switch) and 20 Watts (hot switch).  The unused ports are reflective.  It is available with 50 Ohm RF connectors:  SMA, TNC, or N female.  This 1P3T has three control lines.  Each control line is activated with TTL signal levels.

Additional information

Connector Type

N Female, SMA Female, TNC Female
