You are here: Home1 / Shop2 / RF Switches3 / High Power Solid-State RF Switches4 / 1P2T RF Switch 10-1000 MHz 30 Watts | 50S-1463

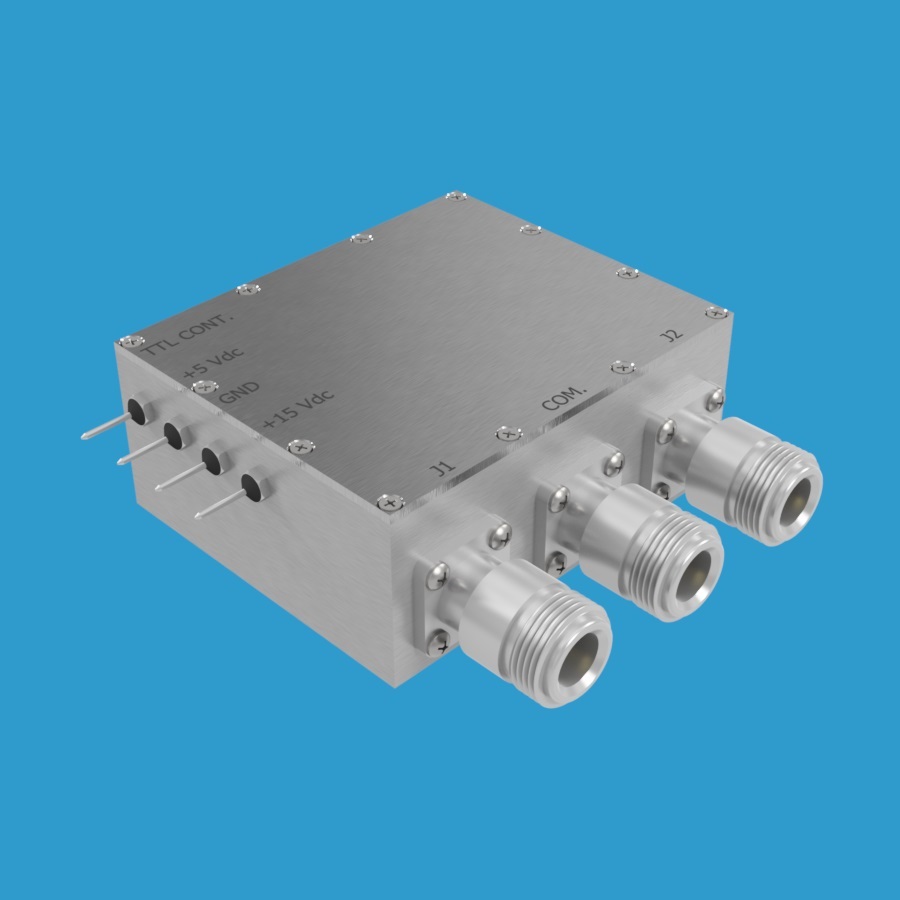

1P2T solid-state RF switch with N female

1P2T RF Switch 10-1000 MHz 30 Watts | 50S-1463

JFW Model #: 50S-1463
Impedance: 50 Ohms
Switch Configuration: 1P2T
Switch Type: Reflective
Frequency Start: 10 MHz
Frequency Stop: 1000 MHz
Switching Speed: 40 uS
RF Input Power: 30 Watts (cold switch)  30 Watts (hot switch)
Isolation: 40 dB
Control Logic: TTL
DC Supply: +5 Vdc, +15 Vdc
Documentation: Data Sheet | Drawing

Clear
Categories: High Power Solid-State RF Switches, RF Switches
  • Description
  • Additional information

Description

Model 50S-1463 is a 50 Ohm solid-state reflective 1P2T RF switch operating 10-1000 MHz.  The RF power rating for this 1P2T is 30 Watts (cold switch) and 30 Watts (hot switch).  The unused port is reflective.  It is available with 50 Ohm RF connectors:  BNC, SMA, TNC or N female.  This 1P2T has one control line.  The control line is activated with TTL signal levels.

Additional information

Connector Type

BNC Female, N Female, SMA Female, TNC Female
