You are here: Home1 / Shop2 / RF Switches3 / High Power Solid-State RF Switches4 / 1P2T RF Switch 20-2500 MHz 25 Watt | 50S-1505

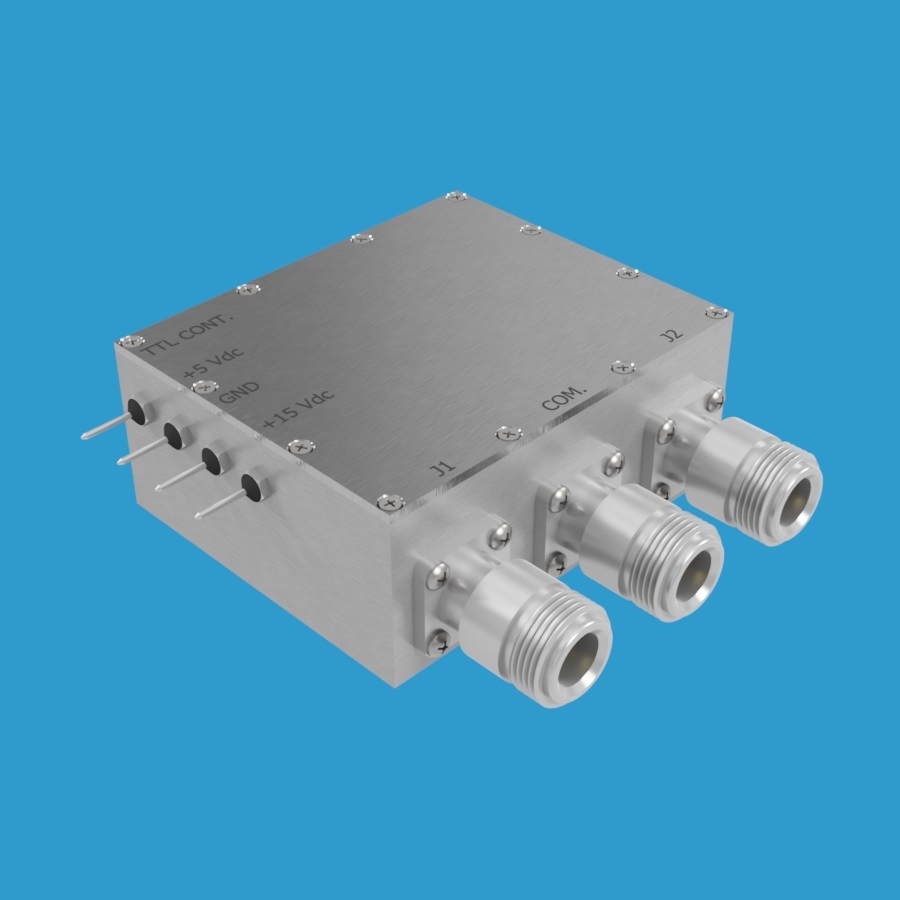

1P2T solid-state RF switch with N female

1P2T RF Switch 20-2500 MHz 25 Watt | 50S-1505

JFW Model #: 50S-1505
Impedance: 50 Ohms
Switch Configuration: 1P2T
Switch Type: Reflective
Frequency Start: 20 MHz
Frequency Stop: 2500 MHz
Switching Speed: 10 uS
RF Input Power: 25 Watts (cold switch)
Isolation: 45 dB
Control Logic: TTL
DC Supply: +5 Vdc, +12/15 Vdc
Documentation: Data Sheet | Drawing

Clear
Categories: High Power Solid-State RF Switches, RF Switches
  • Description
  • Additional information

Description

Model 50S-1505 is a 50 Ohm solid-state reflective 1P2T RF switch operating 20-2500 MHz.  The RF power rating for this 1P2T is 25 Watts (cold switch).  The unused port is reflective.  It is available with 50 Ohm RF connectors:  SMA, TNC or N female.  This 1P2T has one control line.  The control line is activated with TTL signal levels.

Additional information

Connector Type

N Female, SMA Female, TNC Female
