You are here: Home1 / Shop2 / RF Switches3 / 50 Ohm Electro-Mechanical RF Switches (Absorptive)4 / 1P2T RF Switch DC-18 GHz | 50S-1603+XX-TTL SMA

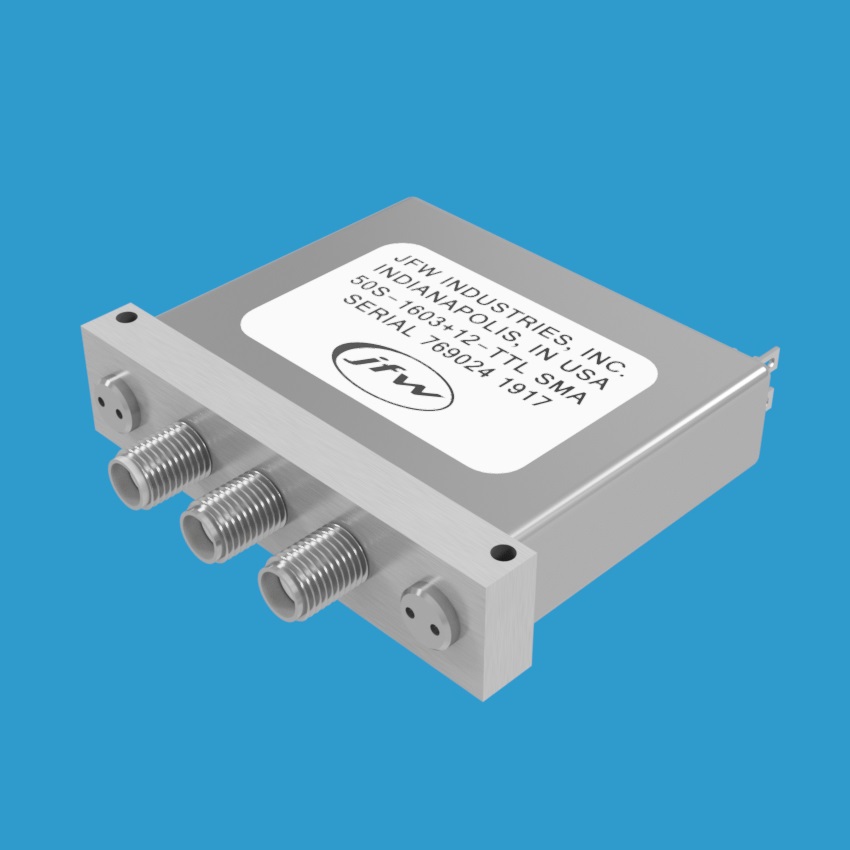

TTL controlled 1P2T failsafe absorptive electro-mechanical RF switch with SMA female

1P2T RF Switch DC-18 GHz | 50S-1603+XX-TTL SMA

JFW Model #: 50S-1603+XX-TTL
Impedance: 50 Ohm
Switch Configuration: 1P2T
Switch Type: Failsafe Absorptive
Frequency Range: DC-18 GHz
Switching Speed: 20 mS
RF Connector: SMA female
DC Supply: +12, +15, +24, +28 Vdc
Control Logic: TTL
Documentation: Data Sheet | Drawing

Clear
Categories: 50 Ohm Electro-Mechanical RF Switches (Absorptive), RF Switches
  • Description
  • Additional information

Description

Model 50S-1603+XX-TTL is a TTL controlled electro-mechanical 1P2T RF switch operating DC-18 GHz with SMA female RF connectors.  This model is failsafe and absorptive (i.e. self-terminating).  The unused port will self-terminate at 50 Ohm impedance.  The failsafe path is COM to NC.  This 1P2T has three RF ports:  COM (common port), NC (normally closed port), NO (normally open port).  This 1P2T RF switch has one control line.  The control line is activated with TTL signal levels.

Additional information

Connector Type

SMA Female

DC Supply

+12 Vdc, +15 Vdc, +24 Vdc, +28 Vdc
