You are here: Home1 / Shop2 / RF Switches3 / 50 Ohm Electro-Mechanical RF Switches (Absorptive)4 / 1P4T RF Switch DC-18 GHz | 50S-1650+XX-TTL SMA

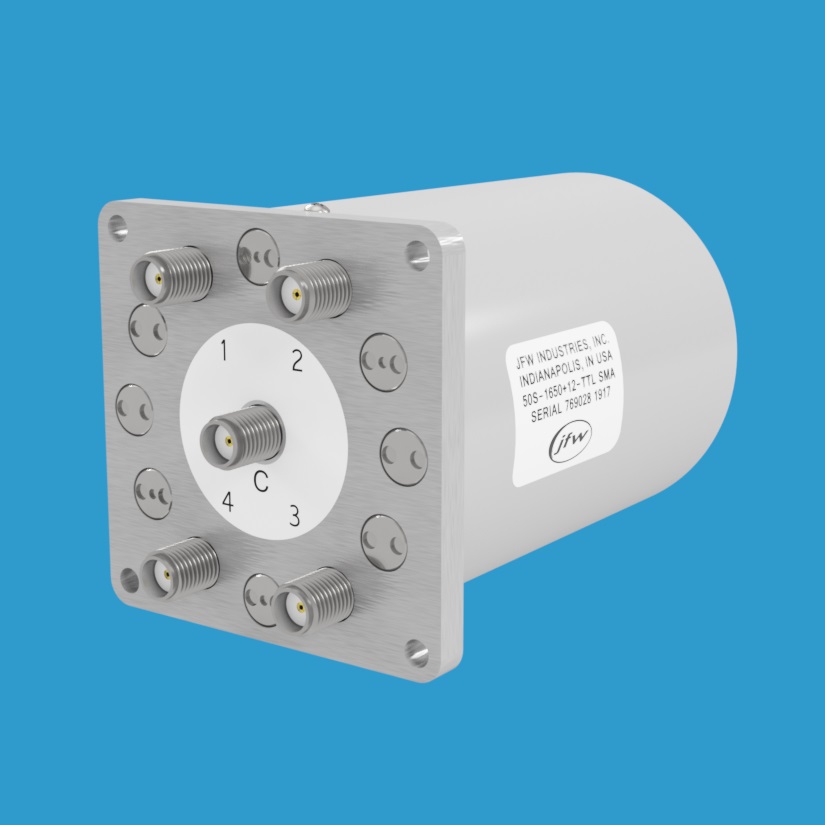

TTL controlled 1P4T absorptive electro-mechanical RF switch with SMA female

1P4T RF Switch DC-18 GHz | 50S-1650+XX-TTL SMA

JFW Model #: 50S-1650+XX-TTL
Impedance: 50 Ohm
Switch Configuration: 1P4T
Switch Type: Normally Open Absorptive
Frequency Range: DC-18 GHz
Switching Speed: 15 mS
RF Connector: SMA female
DC Supply: +12, +15, +24 Vdc, +28 Vdc
Control Logic: TTL
Documentation: Data Sheet | Drawing

Clear
Categories: 50 Ohm Electro-Mechanical RF Switches (Absorptive), RF Switches
  • Description
  • Additional information

Description

Model 50S-1650+XX-TTL is a TTL controlled 50 Ohm electro-mechanical 1P4T RF switch operating DC-18 GHz with SMA female RF connectors.  This RF switch is normally open type and absorptive (i.e. self-terminating).  All unused ports will self-terminate at 50 Ohm impedance.  The normally open design allows the switch to have an “all off” state.  This 1P4T RF switch has four control lines.  Each control line is activated with TTL signal levels.  Only one control line can be active at a time.

Additional information

Connector Type

SMA Female

DC Supply

+12 Vdc, +15 Vdc, +24 Vdc, +28 Vdc
