You are here: Home1 / Shop2 / RF Switches3 / 50 Ohm Electro-Mechanical RF Switches (Absorptive)4 / 1P3T RF Switch DC-18 GHz | 50S-1657+XX SMA

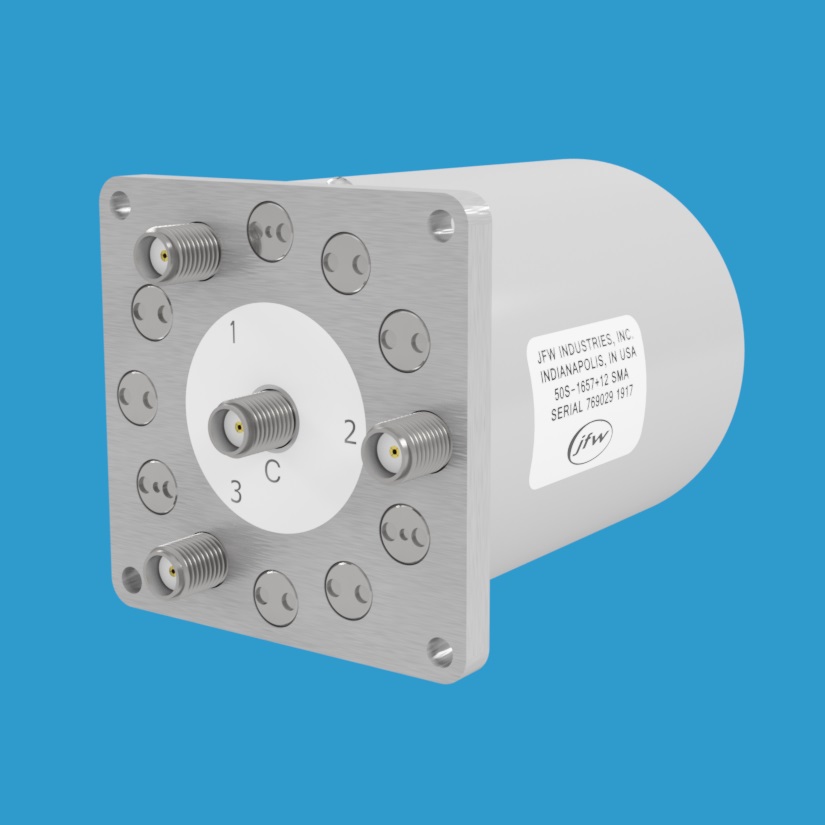

1P3T absorptive electro-mechanical RF switch with SMA female

1P3T RF Switch DC-18 GHz | 50S-1657+XX SMA

JFW Model #: 50S-1657+XX
Impedance: 50 Ohm
Switch Configuration: 1P3T
Switch Type: Normally Open Absorptive
Frequency Range: DC-18 GHz
Switching Speed: 15 mS
RF Connector: SMA female
Control Voltage +12 Vdc, +15 Vdc, 28 Vdc
Documentation: Data Sheet | Drawing

Clear
Categories: 50 Ohm Electro-Mechanical RF Switches (Absorptive), RF Switches
  • Description
  • Additional information

Description

Model 50S-1657+XX is a 50 Ohm electro-mechanical 1P3T RF switch operating DC-18 GHz with SMA female RF connectors.  This RF switch is normally open type and absorptive (i.e. self-terminating).  All unused ports will self-terminate at 50 Ohm impedance.  The normally open design allows the switch to have an “all off” state.  This 1P3T RF switch has three control lines.  Each control line is activated with +XX Vdc signal levels (i.e. +12Vdc, +24Vdc).  Only one control line can be active at a time.

Additional information

Connector Type

SMA Female

Control Voltages

+12 Vdc, +15 Vdc, +28 Vdc
