You are here: Home1 / Shop2 / RF Switches3 / 50 Ohm Electro-Mechanical RF Switches (Absorptive)4 / 1P4T RF Switch DC-40 GHz | 50S-1756+XX 2.9MM

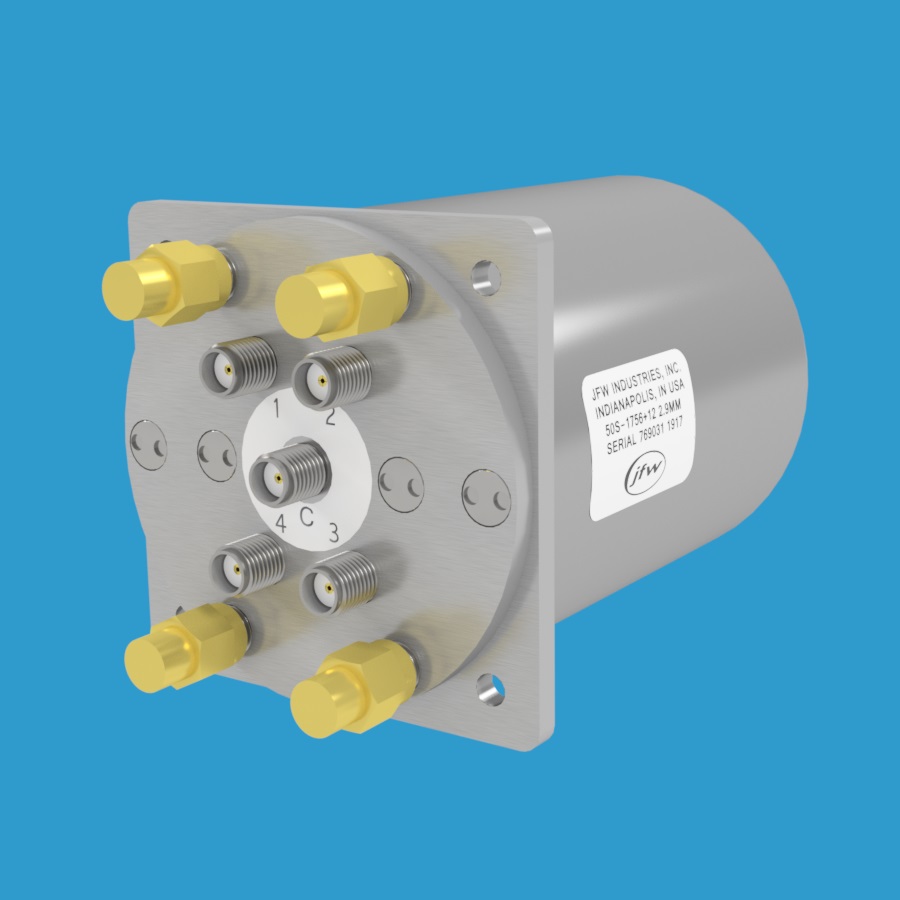

1P4T latching absorptive electro-mechanical 40GHz RF switch with 2.9mm female

1P4T RF Switch DC-40 GHz | 50S-1756+XX 2.9MM

JFW Model #: 50S-1756+XX
Impedance: 50 Ohm
Switch Configuration: 1P4T
Switch Type: Latching Absorptive
Frequency Range: DC-40 GHz
Switching Speed: 20 mS
RF Connector: 2.9 mm female
Control Voltage +12 Vdc, +24 Vdc, 28 Vdc
Control Logic: GND Activated
Documentation: Data Sheet | Drawing

Clear
Categories: 50 Ohm Electro-Mechanical RF Switches (Absorptive), RF Switches
  • Description
  • Additional information

Description

Model 50S-1756+XX is a 50 Ohm electro-mechanical 1P4T RF switch operating DC-40 GHz with 2.9mm female RF connectors.  This RF switch is latching type and absorptive (i.e. self-terminating).  All unused ports will self-terminate at 50 Ohm impedance.  The latching design means there will always be one RF path set.  There is no “all off” state.  This 1P4T RF switch has four control lines.  Each control line is activated with +XX Vdc signal levels (i.e. +12Vdc, +24Vdc).  Only one control line can be active at a time.

Additional information

Connector Type

2.92mm Female

Control Voltages

+12 Vdc, +24 Vdc, +28 Vdc
