You are here: Home1 / Shop2 / RF Switches3 / 50 Ohm Electro-Mechanical RF Switches (Absorptive)4 / 1P2T RF Switch DC-40 GHz | 50S-1770+XX-TTL 2.9MM

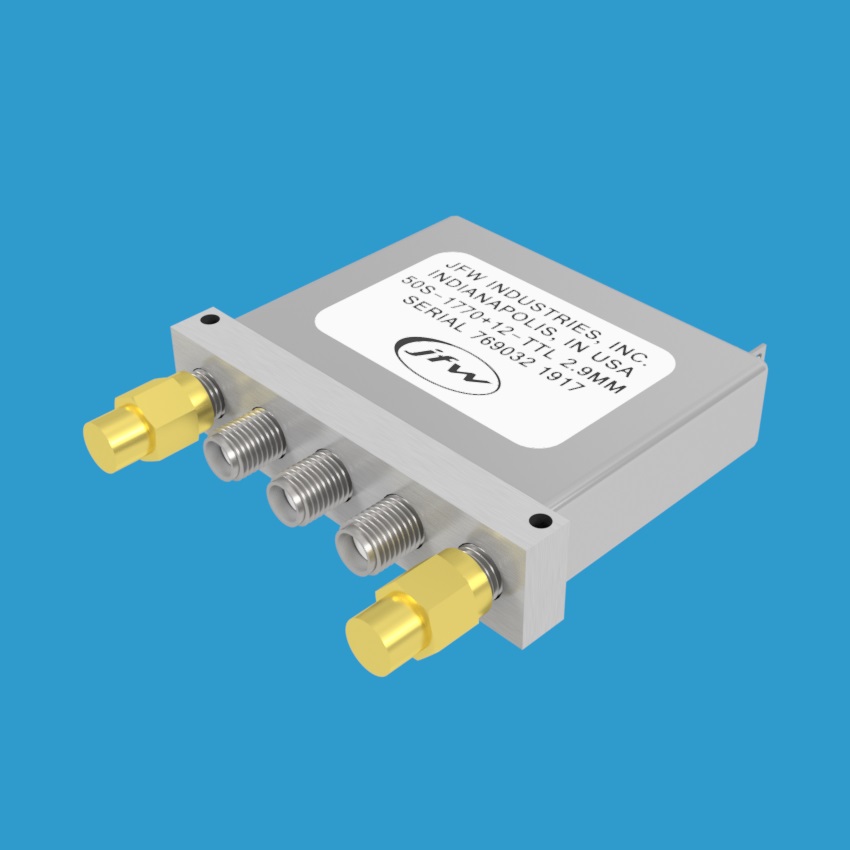

1P2T latching absorptive electro-mechanical 40GHz RF switch with 2.9mm female

1P2T RF Switch DC-40 GHz | 50S-1770+XX-TTL 2.9MM

JFW Model #: 50S-1770+XX-TTL
Impedance: 50 Ohm
Switch Configuration: 1P2T
Switch Type: Latching Absorptive
Frequency Range: DC-40 GHz
Switching Speed: 20 mS
RF Connector: 2.9 mm female
DC Supply: +12, +15, +24 Vdc, +28 Vdc
Control Logic: TTL
Documentation: Data Sheet | Drawing

Clear
Categories: 50 Ohm Electro-Mechanical RF Switches (Absorptive), RF Switches
  • Description
  • Additional information

Description

Model 50S-1770+XX-TTL is a 50 Ohm electro-mechanical 1P2T RF switch operating DC-40 GHz with 2.9mm female RF connectors.  This RF switch is latching type and absorptive (i.e. self-terminating).  The unused port will self-terminate at 50 Ohm impedance.  The latching design means there will always be one RF path set.  There is no “all off” state.  This 1P2T RF switch has two control lines.  Each control line is activated with TTL signal levels.  Only one control line can be active at a time.

Additional information

Connector Type

2.92mm Female

DC Supply

+12 Vdc, +15 Vdc, +24 Vdc, +28 Vdc
