You are here: Home1 / Shop2 / RF Switches3 / 50 Ohm Solid-State RF Switches (Absorptive)4 / 1P2T RF Switch 0.5-18 GHz | 50S-1781
50 Ohm absorptive 1P2T solid-state 18GHz RF switch with SMA female

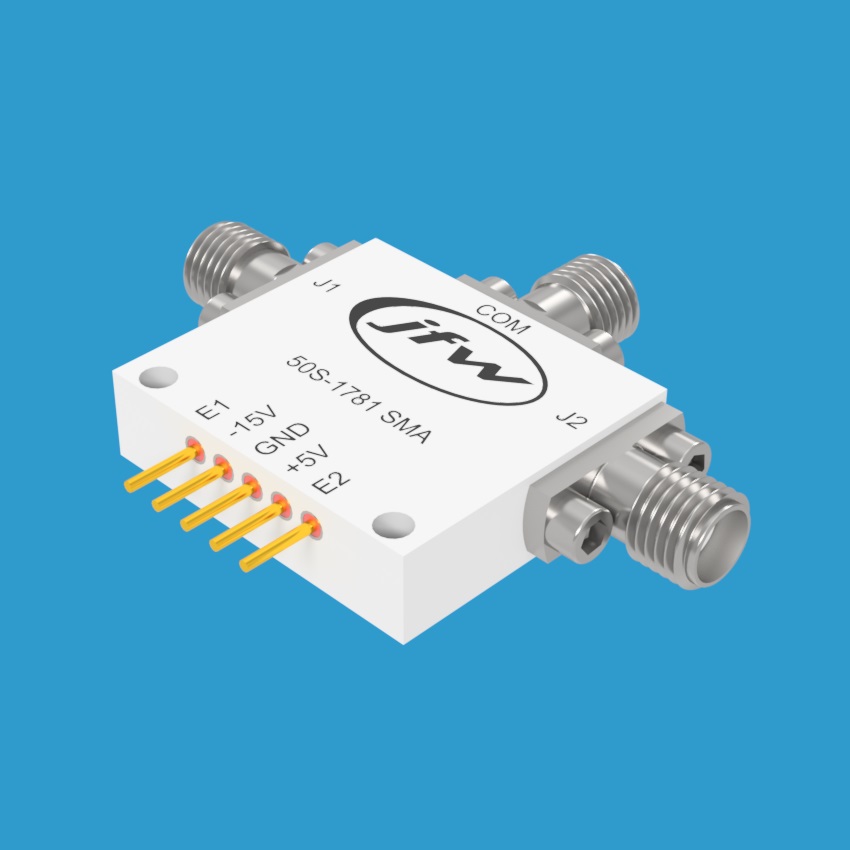

1P2T RF Switch 0.5-18 GHz | 50S-1781

JFW Model #: 50S-1781
Impedance: 50 Ohm
Configuration: 1P2T solid-state RF switch
Type: Absorptive (i.e. Self-Terminating)
Frequency Start: 500 MHz
Frequency Stop: 18 GHz
Switching Speed: 100 nS
RF Connectors: SMA female
Control Logic: TTL
Documentation: Data Sheet | Drawing

Categories: 50 Ohm Solid-State RF Switches (Absorptive), RF Switches
  • Description
  • Additional information

Description

Model 50S-1781 is a 50 Ohm solid-state 1P2T RF switch operating 500 MHz to 18 GHz rated at +27dBm of RF input power.  This RF switch is absorptive type (i.e. self-terminating).  The unused port will self-terminate at 50 Ohm impedance.  It is available with 50 Ohm SMA female RF connectors.  This 1P2T RF switch has two control lines.  Each control line is activated with TTL signal levels.

Additional information

Connector Type

SMA Female
