You are here: Home1 / Shop2 / RF Switches3 / High Power Solid-State RF Switches4 / 1P2T RF Switch 800-2700 MHz | 50S-1820

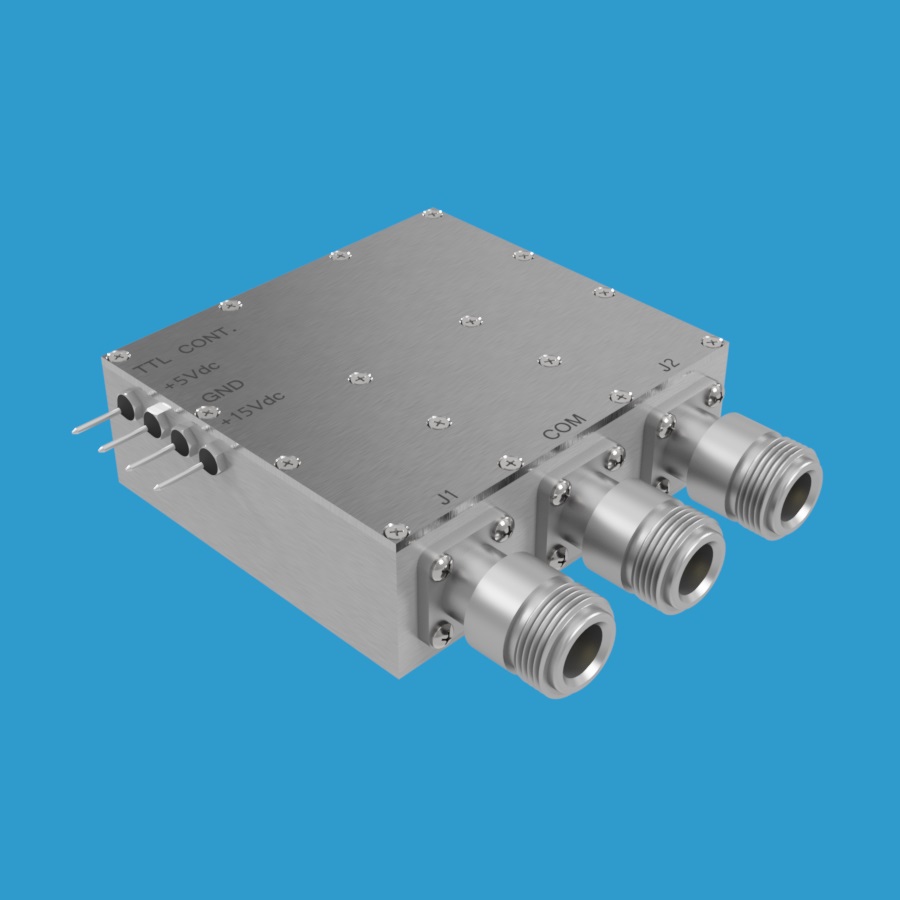

1P2T high power solid-state RF switch with SMA female

1P2T RF Switch 800-2700 MHz | 50S-1820

JFW Model #: 50S-1820
Impedance: 50 Ohm
Configuration: 1P2T solid-state RF switch
Type: Reflective
Frequency Range: 800-2700 MHz
Switching Speed: 10 uS
RF Input Power:
100 Watts (cold switch)
30 Watts (hot switch)
Documentation: Data Sheet | Drawing

Clear
Categories: High Power Solid-State RF Switches, RF Switches
  • Description
  • Additional information

Description

Model 50S-1820 is a 50 Ohm solid-state reflective 1P2T RF switch operating 800-2700 MHz.  The RF power rating for this 1P2T is 100 Watts (cold switch) and 30 Watts (hot switch).  The unused port is reflective.  It is available with 50 Ohm RF connectors:  BNC, SMA, TNC or N female.  This 1P2T has one control line.  The control line is activated with TTL signal levels.

Additional information

Connector Type

BNC Female, N Female, SMA Female, TNC Female
