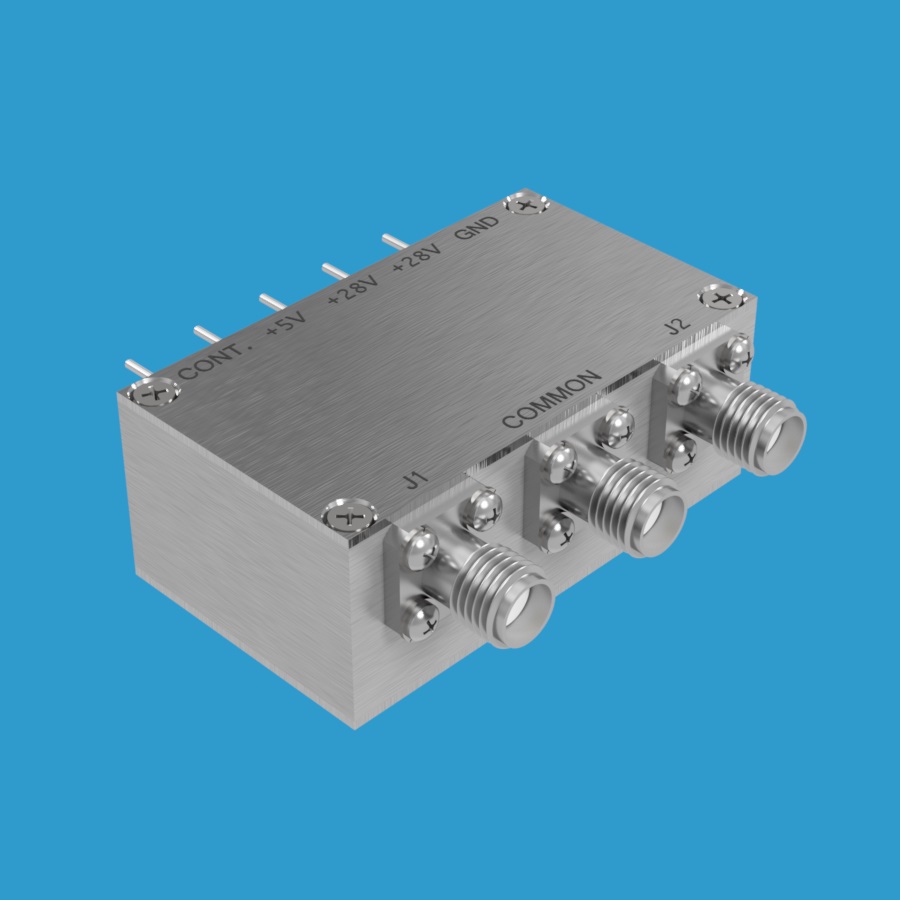

1P2T solid-state RF switch with SMA female

1P2T RF Switch 20-500 MHz 5 Watt | 50S-1872

JFW Model #: 50S-1872
Impedance: 50 Ohms
Switch Configuration: 1P2T
Switch Type: Reflective
Frequency Start: 20 MHz
Frequency Stop: 500 MHz
Switching Speed: 10 uS
RF Input Power: 5 Watts (cold switch) 5 Watts (hot switch)
Isolation: 50 dB
Control Logic: TTL
DC Supply: +5 Vdc, +28 Vdc
Documentation: Data Sheet | Drawing

Categories: High Power Solid-State RF Switches, RF Switches
  • Description
  • Additional information

Description

Model 50S-1872 is a 50 Ohm solid-state reflective 1P2T RF switch operating 20-500 MHz.  The RF power rating for this 1P2T is 5 Watts (cold switch) and 5 Watts (hot switch).  The unused port is reflective.  It is available with 50 Ohm SMA female RF connectors.  This 1P2T has one control line.  The control line is activated with TTL signal levels.

Additional information

Connector Type

SMA Female
