You are here: Home1 / Shop2 / RF Switches3 / 50 Ohm Solid-State RF Switches (Absorptive)4 / 1P2T RF Switch 20-6000 MHz | 50S-1876

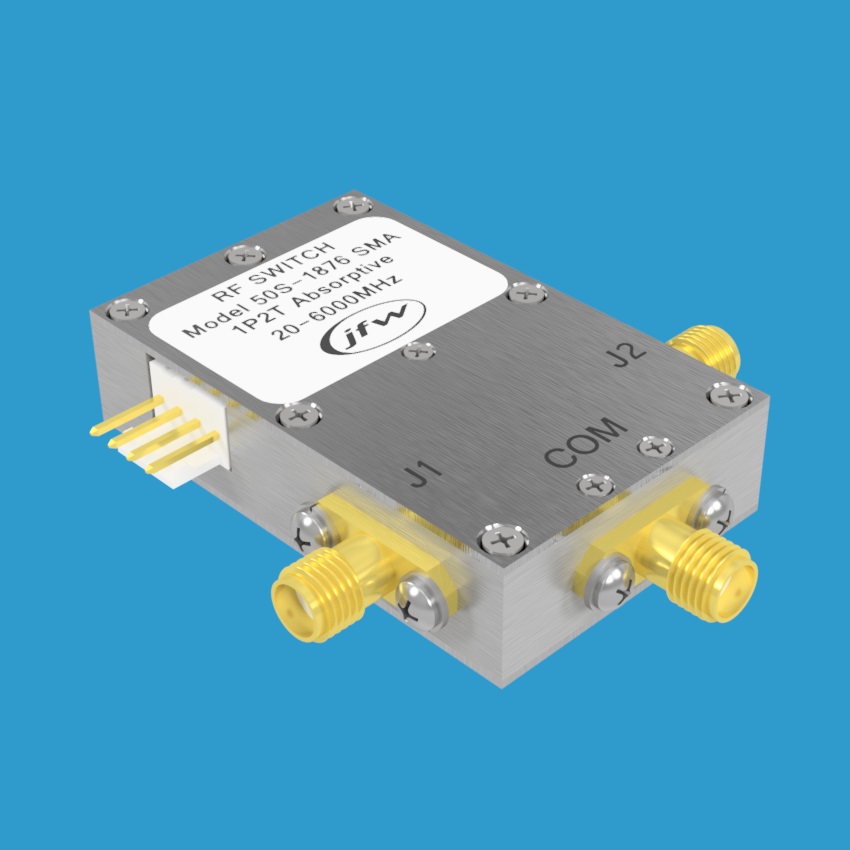

JFW model 50S-1876 SMA absorptive 1P2T solid-state RF switch

1P2T RF Switch 20-6000 MHz | 50S-1876

JFW Model #: 50S-1876
Impedance: 50 Ohm
Configuration: 1P2T solid-state RF switch
Type: Absorptive (i.e. self-terminating)
Frequency Range: 20-6000 MHz
Switching Speed: 10 uS
RF Connectors: SMA female
Control Logic: TTL
Documentation: Data Sheet | Drawing

Categories: 50 Ohm Solid-State RF Switches (Absorptive), RF Switches
  • Description
  • Additional information

Description

Model 50S-1876 is a 50 Ohm solid-state 1P2T RF switch operating 20-6000 MHz rated at +26dBm of RF input power.  This RF switch is absorptive type (i.e. self-terminating).  The unused port will self-terminate at 50 Ohm impedance.  It is available with 50 Ohm SMA female RF connectors.  This 1P2T RF switch has one control line.  The control line is activated with TTL signal levels.
