50 Ohm absorptive 1P4T solid-state RF switch

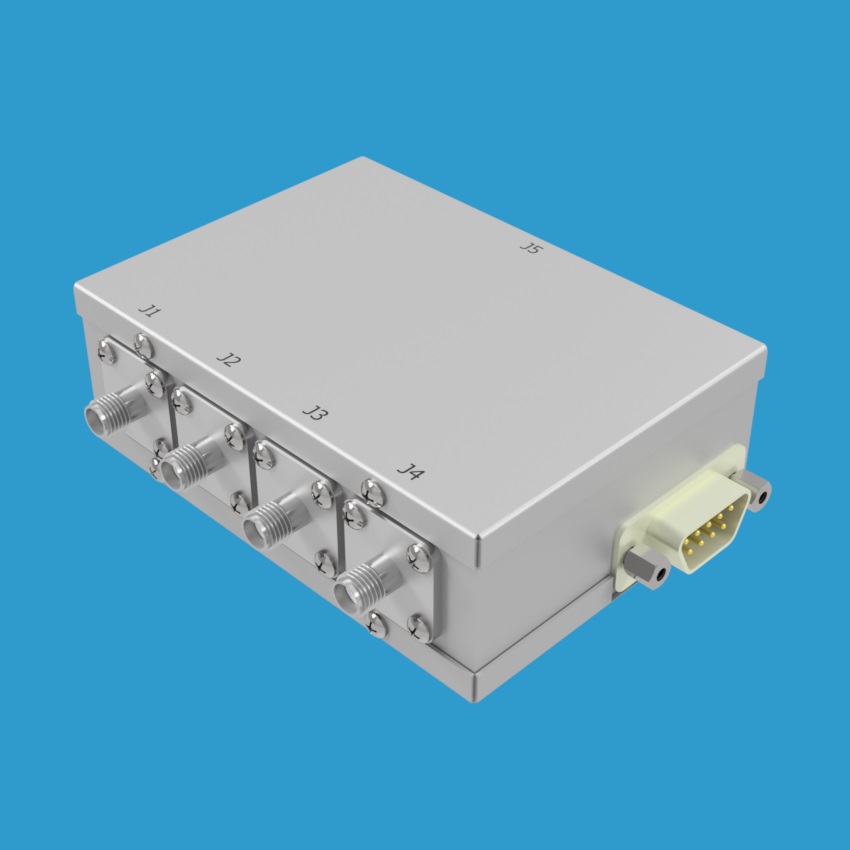

1P4T RF Switch 5-3000 MHz | 50S-1971

JFW Model #: 50S-1971
Impedance: 50 Ohm
Configuration: 1P4T solid-state RF switch
Type: Absorptive (i.e. self-terminating)
Frequency Range: 5-3000 MHz
Switching Speed: 10 uS
RF Connectors: SMA female
Control Logic: TTL
Documentation: Data Sheet | Drawing

Categories: 50 Ohm Solid-State RF Switches (Absorptive), RF Switches
  • Description
  • Additional information

Description

Model 50S-1971 is a 50 Ohm solid-state 1P4T RF switch operating 5-3000 MHz.  It is rated for +10dBm of RF input power at 5 MHz and +30dBm (i.e. 1 Watt) at 100 MHz and above.  This RF switch is absorptive type (i.e. self-terminating).  The unused ports will self-terminate at 50 Ohm impedance.  It is available with 50 Ohm SMA female RF connectors.  This 1P4T RF switch has four control lines.  Each control line is activated with TTL signal levels.
