You are here: Home1 / Shop2 / Test Systems3 / RF Switch Assemblies4 / 19 Inch Rack RF Switch Assemblies (50 Ohm)5 / Assembly with 4 RF Switches 1P3T DC-18 GHz | 50SA-423 SMA

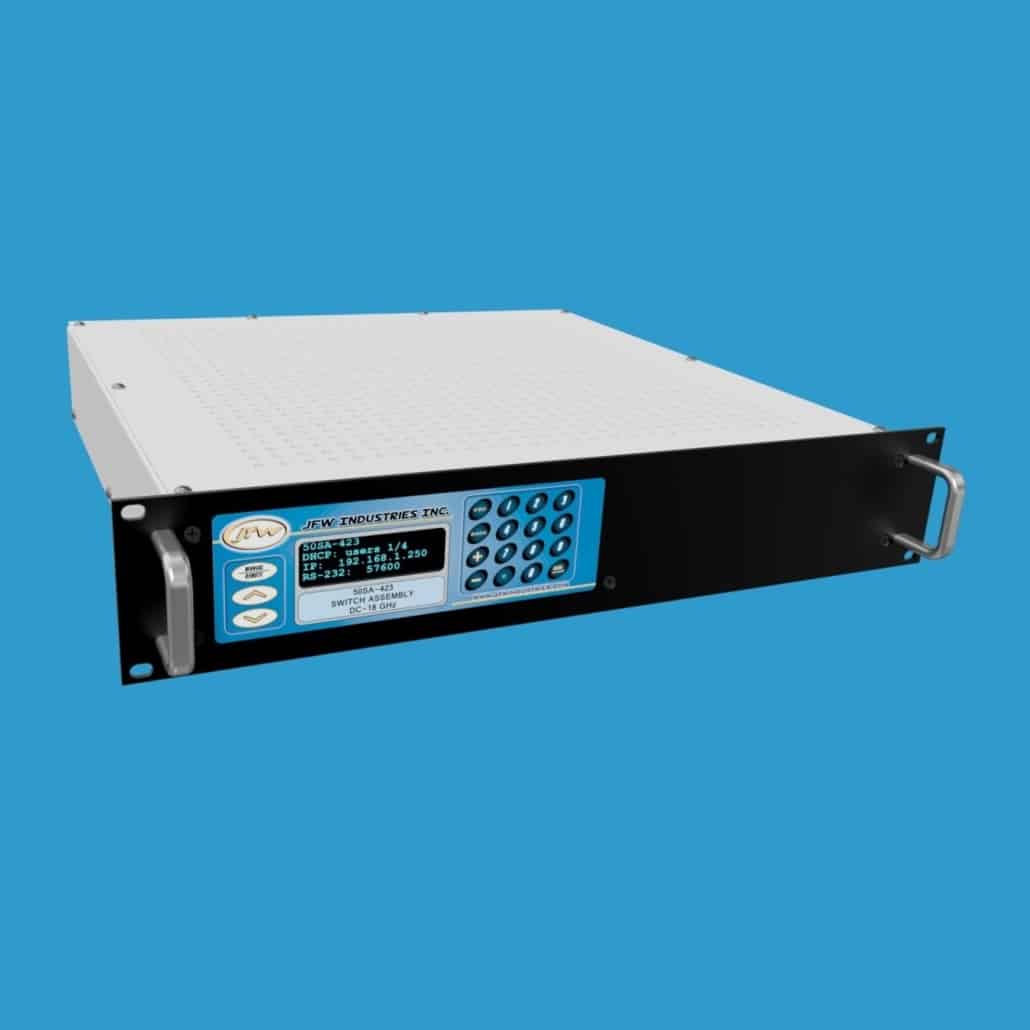

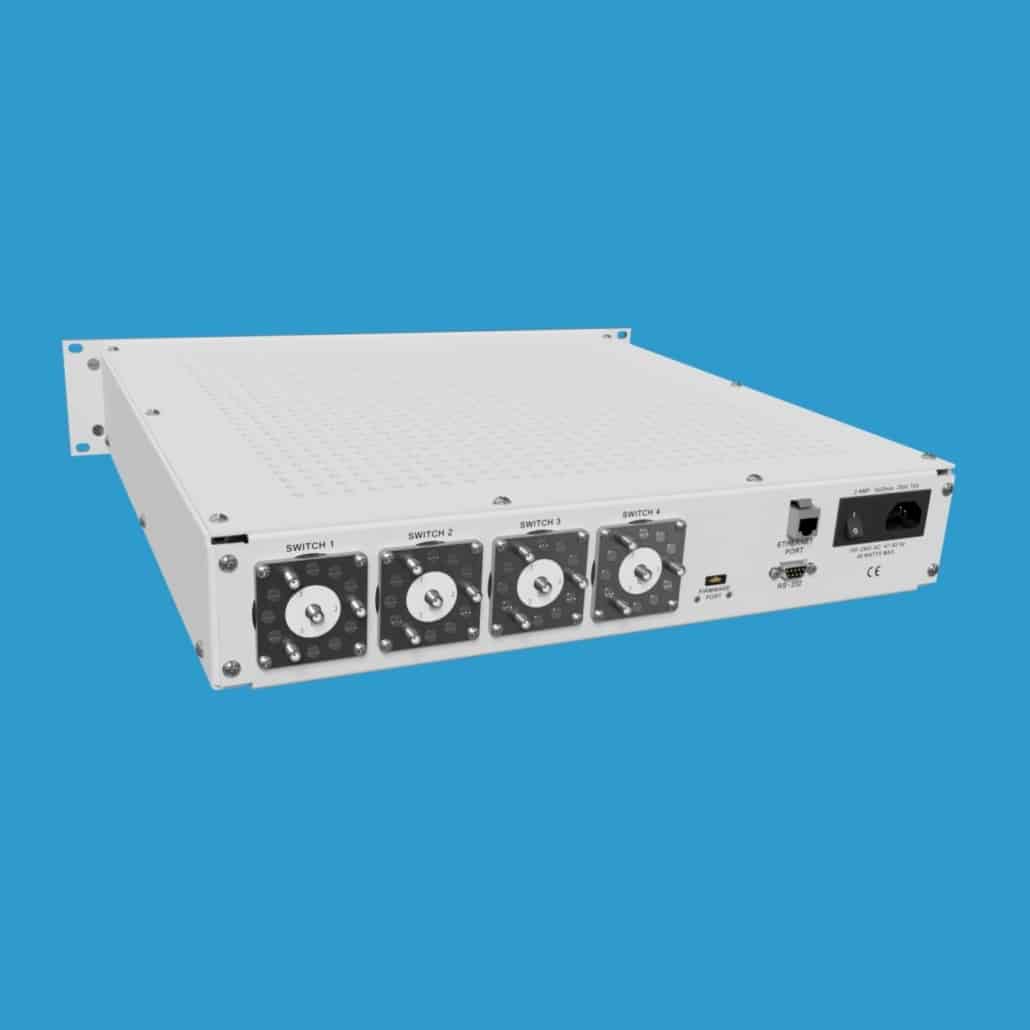

JFW model 50SA-423 RF Switch Assembly with Ethernet/Serial remote control

Assembly with 4 RF Switches 1P3T DC-18 GHz | 50SA-423 SMA

JFW Model #: 50SA-323
Type: RF switch assembly
Impedance: 50 Ohm
Number of Switches: 4 Switches
RF Switch Type: 1P3T Self-Terminating
Frequency Range: DC-18 GHz
RF Input Power: 100 Watts @ 4 GHz
Control: Manual, Ethernet, RS-232
RF Connectors: SMA
Documentation: Data Sheet | Drawing

Categories: 19 Inch Rack RF Switch Assemblies (50 Ohm), RF Switch Assemblies, Test Systems
  • Additional information

Additional information

Connector Type

SMA Female
