You are here: Home1 / Shop2 / Terminations and Mismatch Loads3 / 50 Ohm Terminations and Mismatch Loads (75 to 1000 Watts)4 / 200 Watt Termination & Mismatch | 50T-338-XXX

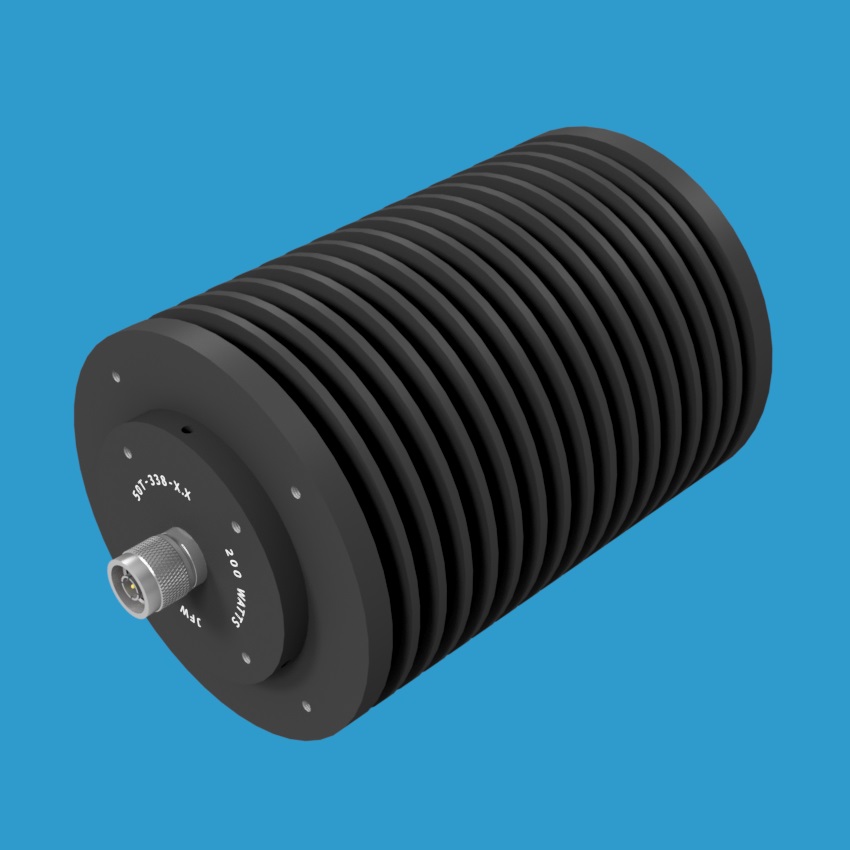

JFW model 50T-338 termination and mismatch 200 Watt average 50 Ohm impedance

200 Watt Termination & Mismatch | 50T-338-XXX

JFW Model #: 50T-338-XXX
Impedance: 50 Ohm
Frequency Ranges:
DC-3000 MHz (Termination)
DC-2500 MHz (1.1:1 to 1.2:1 Mismatch)
DC-2000 MHz (1.3:1 to 3.0:1 Mismatch)
DC-1000 MHz (3.1:1 to 10.0:1 Mismatch)
RF Input Power: 200 Watts
Heatsink Style: Round
RF Connectors: N, 7/16 Female or Male
Documentation: Data Sheet | Drawing

Clear
Categories: 50 Ohm Terminations and Mismatch Loads (75 to 1000 Watts), Terminations and Mismatch Loads
  • Description
  • Additional information

Description

Model 50T-338-XXX can be ordered as a 50 Ohm termination or as a mismatch load.  This model is rated at 200 Watts RF input power.  It has threaded mounting holes on both ends of the heatsink.  It is available with 50 Ohm RF connectors: N or 7/16 (male or female).

1.0:1 termination = 50 Ohm load in a 50 Ohm system
2.0:1 mismatch = 100 Ohm load in a 50 Ohm system
3.0:1 mismatch = 150 Ohm load in a 50 Ohm system
4.0:1 mismatch = 200 Ohm load in a 50 Ohm system
5.0:1 mismatch = 250 Ohm load in a 50 Ohm system
6.0:1 mismatch = 300 Ohm load in a 50 Ohm system
7.0:1 mismatch = 350 Ohm load in a 50 Ohm system
8.0:1 mismatch = 400 Ohm load in a 50 Ohm system
9.0:1 mismatch = 450 Ohm load in a 50 Ohm system
10.0:1 mismatch = 500 Ohm load in a 50 Ohm system

For model 50T-338-XXX, replace the XXX with the desired VSWR mismatch value and add the RF connector type at the end to create the full model number.  Specify male (M) or female (F) for the RF connector.

Example Model Numbers:

50T-338-1.0 N M  (1.0:1 termination)
50T-338-1.0 N F  (1.0:1 termination)
50T-338-1.0 7/16 M  (1.0:1 termination)
50T-338-1.0 7/16 F  (1.0:1 termination)

50T-338-1.1 N M  (1.1:1 mismatch)
50T-338-1.2 N M  (1.2:1 mismatch)
50T-338-1.3 N M  (1.3:1 mismatch)
50T-338-1.4 N M  (1.4:1 mismatch)
50T-338-1.5 N M  (1.5:1 mismatch)
50T-338-1.6 N M  (1.6:1 mismatch)
50T-338-1.7 N M  (1.7:1 mismatch)
50T-338-1.8 N M  (1.8:1 mismatch)
50T-338-1.9 N M  (1.9:1 mismatch)

50T-338-2.0 N F  (2.0:1 mismatch)
50T-338-2.1 N F  (2.1:1 mismatch)
50T-338-2.2 N F  (2.2:1 mismatch)
50T-338-2.3 N F  (2.3:1 mismatch)
50T-338-2.4 N F  (2.4:1 mismatch)
50T-338-2.5 N F  (2.5:1 mismatch)
50T-338-2.6 N F  (2.6:1 mismatch)
50T-338-2.7 N F  (2.7:1 mismatch)
50T-338-2.8 N F  (2.8:1 mismatch)
50T-338-2.9 N F  (2.9:1 mismatch)

50T-338-3.0 7/16 M  (3.0:1 mismatch)
50T-338-3.1 7/16 M  (3.1:1 mismatch)
50T-338-3.2 7/16 M  (3.2:1 mismatch)
50T-338-3.3 7/16 M  (3.3:1 mismatch)
50T-338-3.4 7/16 M  (3.4:1 mismatch)
50T-338-3.5 7/16 M  (3.5:1 mismatch)
50T-338-3.6 7/16 M  (3.6:1 mismatch)
50T-338-3.7 7/16 M  (3.7:1 mismatch)
50T-338-3.8 7/16 M  (3.8:1 mismatch)
50T-338-3.9 7/16 M  (3.9:1 mismatch)

50T-338-4.0 7/16 F  (4.0:1 mismatch)
50T-338-4.1 7/16 F  (4.1:1 mismatch)
50T-338-4.2 7/16 F  (4.2:1 mismatch)
50T-338-4.3 7/16 F  (4.3:1 mismatch)
50T-338-4.4 7/16 F  (4.4:1 mismatch)
50T-338-4.5 7/16 F  (4.5.1 mismatch)
50T-338-4.6 7/16 F  (4.6:1 mismatch)
50T-338-4.7 7/16 F  (4.7:1 mismatch)
50T-338-4.8 7/16 F  (4.8:1 mismatch)
50T-338-4.9 7/16 F  (4.9:1 mismatch)

50T-338-5.0 N M  (5.0:1 mismatch)
50T-338-5.1 N M  (5.1:1 mismatch)
50T-338-5.2 N M  (5.2:1 mismatch)
50T-338-5.3 N M  (5.3:1 mismatch)
50T-338-5.4 N M  (5.4:1 mismatch)
50T-338-5.5 N M  (5.5.1 mismatch)
50T-338-5.6 N M  (5.6:1 mismatch)
50T-338-5.7 N M  (5.7:1 mismatch)
50T-338-5.8 N M  (5.8:1 mismatch)
50T-338-5.9 N M  (5.9:1 mismatch)

50T-338-6.0 N F  (6.0:1 mismatch)
50T-338-6.1 N F  (6.1:1 mismatch)
50T-338-6.2 N F  (6.2:1 mismatch)
50T-338-6.3 N F  (6.3:1 mismatch)
50T-338-6.4 N F  (6.4:1 mismatch)
50T-338-6.5 N F  (6.5.1 mismatch)
50T-338-6.6 N F  (6.6:1 mismatch)
50T-338-6.7 N F  (6.7:1 mismatch)
50T-338-6.8 N F  (6.8:1 mismatch)
50T-338-6.9 N F  (6.9:1 mismatch)

50T-338-7.0 7/16 M  (7.0:1 mismatch)
50T-338-7.1 7/16 M  (7.1:1 mismatch)
50T-338-7.2 7/16 M  (7.2:1 mismatch)
50T-338-7.3 7/16 M  (7.3:1 mismatch)
50T-338-7.4 7/16 M  (7.4:1 mismatch)
50T-338-7.5 7/16 M  (7.5.1 mismatch)
50T-338-7.6 7/16 M  (7.6:1 mismatch)
50T-338-7.7 7/16 M  (7.7:1 mismatch)
50T-338-7.8 7/16 M  (7.8:1 mismatch)
50T-338-7.9 7/16 M  (7.9:1 mismatch)

50T-338-8.0 7/16 F  (8.0:1 mismatch)
50T-338-8.1 7/16 F  (8.1:1 mismatch)
50T-338-8.2 7/16 F  (8.2:1 mismatch)
50T-338-8.3 7/16 F  (8.3:1 mismatch)
50T-338-8.4 7/16 F  (8.4:1 mismatch)
50T-338-8.5 7/16 F  (8.5.1 mismatch)
50T-338-8.6 7/16 F  (8.6:1 mismatch)
50T-338-8.7 7/16 F  (8.7:1 mismatch)
50T-338-8.8 7/16 F  (8.8:1 mismatch)
50T-338-8.9 7/16 F  (8.9:1 mismatch)

50T-338-9.0 N M  (9.0:1 mismatch)
50T-338-9.1 N M  (9.1:1 mismatch)
50T-338-9.2 N M  (9.2:1 mismatch)
50T-338-9.3 N M  (9.3:1 mismatch)
50T-338-9.4 N M  (9.4:1 mismatch)
50T-338-9.5 N M  (9.5.1 mismatch)
50T-338-9.6 N M  (9.6:1 mismatch)
50T-338-9.7 N M  (9.7:1 mismatch)
50T-338-9.8 N M  (9.8:1 mismatch)
50T-338-9.9 N M  (9.9:1 mismatch)

50T-338-10.0 N F  (10.0:1 mismatch)
