You are here: Home1 / Shop2 / Terminations and Mismatch Loads3 / 50 Ohm Terminations and Mismatch Loads (0.5 to 2 Watts)4 / 2 Watt Termination or Mismatch DC-3GHz | 50T-464-XXX

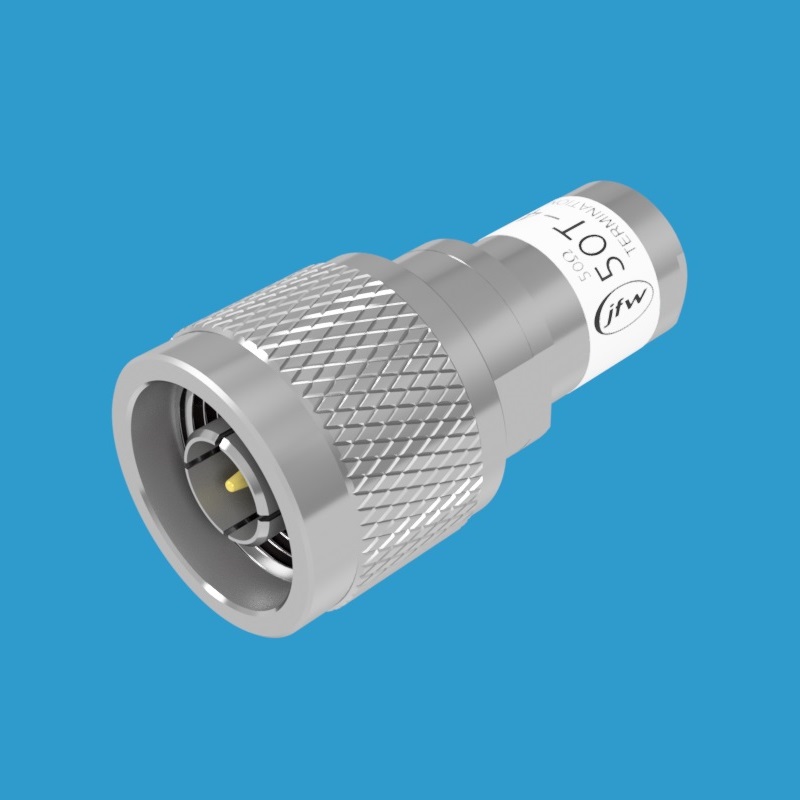

Model 50T-464-XXX-N-M termination 50 Ohm 2 Watt N male

2 Watt Termination or Mismatch DC-3GHz | 50T-464-XXX

JFW Model #: 50T-464-XXX
Impedance: 50 Ohm
Frequency Range: DC-3000 MHz
RF Input Power: 2 Watts
RF Connectors: BNC, N, SMA, TNC
Documentation: Data Sheet | Drawing (BNC Male) | Drawing (N Male) | Drawing (SMA Male)

Clear
Categories: 50 Ohm Terminations and Mismatch Loads (0.5 to 2 Watts), Terminations and Mismatch Loads
  • Description
  • Additional information

Description

Model 50T-464-XXX can be ordered as a 50 Ohm termination or as a mismatch load.  This model operates DC-3000 MHz and is rated at 2 Watts RF input power.  It is available with 50 Ohm RF connectors: BNC, N, SMA, or TNC (male or female).

1.0:1 termination = 50 Ohm load in a 50 Ohm system
2.0:1 mismatch = 100 Ohm load in a 50 Ohm system
3.0:1 mismatch = 150 Ohm load in a 50 Ohm system
4.0:1 mismatch = 200 Ohm load in a 50 Ohm system
5.0:1 mismatch = 250 Ohm load in a 50 Ohm system

For model 50T-464-XXX, replace the XXX with the desired VSWR mismatch value and add the RF connector type at the end to create the full model number.  Specify male (M) or female (F) for the RF connector.

Example Model Numbers:

50T-464-1.0 N M (1.0:1 termination)
50T-464-1.0 BNC M (1.0:1 termination)
50T-464-1.0 SMA M (1.0:1 termination)
50T-464-1.0 TNC M (1.0:1 termination)

50T-464-1.1 BNC M  (1.1:1 mismatch)
50T-464-1.2 BNC M  (1.2:1 mismatch)
50T-464-1.3 BNC M  (1.3:1 mismatch)
50T-464-1.4 BNC M  (1.4:1 mismatch)
50T-464-1.5 BNC F  (1.5:1 mismatch)
50T-464-1.6 BNC F  (1.6:1 mismatch)
50T-464-1.7 BNC F  (1.7:1 mismatch)
50T-464-1.8 BNC F  (1.8:1 mismatch)
50T-464-1.9 BNC F  (1.9:1 mismatch)

50T-464-2.0 N M  (2.0:1 mismatch)
50T-464-2.1 N M  (2.1:1 mismatch)
50T-464-2.2 N M  (2.2:1 mismatch)
50T-464-2.3 N M  (2.3:1 mismatch)
50T-464-2.4 N M  (2.4:1 mismatch)
50T-464-2.5 N F  (2.5:1 mismatch)
50T-464-2.6 N F  (2.6:1 mismatch)
50T-464-2.7 N F  (2.7:1 mismatch)
50T-464-2.8 N F  (2.8:1 mismatch)
50T-464-2.9 N F  (2.9:1 mismatch)

50T-464-3.0 SMA M  (3.0:1 mismatch)
50T-464-3.1 SMA M  (3.1:1 mismatch)
50T-464-3.2 SMA M  (3.2:1 mismatch)
50T-464-3.3 SMA M  (3.3:1 mismatch)
50T-464-3.4 SMA M  (3.4:1 mismatch)
50T-464-3.5 SMA F  (3.5:1 mismatch)
50T-464-3.6 SMA F  (3.6:1 mismatch)
50T-464-3.7 SMA F  (3.7:1 mismatch)
50T-464-3.8 SMA F  (3.8:1 mismatch)
50T-464-3.9 SMA F  (3.9:1 mismatch)

50T-464-4.0 TNC M  (4.0:1 mismatch)
50T-464-4.1 TNC M  (4.1:1 mismatch)
50T-464-4.2 TNC M  (4.2:1 mismatch)
50T-464-4.3 TNC M  (4.3:1 mismatch)
50T-464-4.4 TNC M  (4.4:1 mismatch)
50T-464-4.5 TNC F  (4.5.1 mismatch)
50T-464-4.6 TNC F  (4.6:1 mismatch)
50T-464-4.7 TNC F  (4.7:1 mismatch)
50T-464-4.8 TNC F  (4.8:1 mismatch)
50T-464-4.9 TNC F  (4.9:1 mismatch)

50T-464-5.0 TNC M  (5.0:1 mismatch)

Additional information

Weight 0.02 lbs
Connector Type

BNC Female, BNC Male, N Female, N Male, SMA Female, SMA Male, TNC Female, TNC Male

VSWR

Termination 1.0:1, Mismatch 1.1:1, Mismatch 1.2:1, Mismatch 1.3:1, Mismatch 1.4:1, Mismatch 1.5:1, Mismatch 1.6:1, Mismatch 1.7:1, Mismatch 1.8:1, Mismatch 1.9:1, Mismatch 2.0:1, Mismatch 2.1:1, Mismatch 2.2:1, Mismatch 2.3:1, Mismatch 2.4:1, Mismatch 2.5:1, Mismatch 2.6:1, Mismatch 2.7:1, Mismatch 2.8:1, Mismatch 2.9:1, Mismatch 3.0:1, Mismatch 3.1:1, Mismatch 3.2:1, Mismatch 3.3:1, Mismatch 3.4:1, Mismatch 3.5:1, Mismatch 3.6:1, Mismatch 3.7:1, Mismatch 3.8:1, Mismatch 3.9:1, Mismatch 4.0:1, Mismatch 4.1:1, Mismatch 4.2:1, Mismatch 4.3:1, Mismatch 4.4:1, Mismatch 4.5:1, Mismatch 4.6:1, Mismatch 4.7:1, Mismatch 4.8:1, Mismatch 4.9:1, Mismatch 5.0:1
