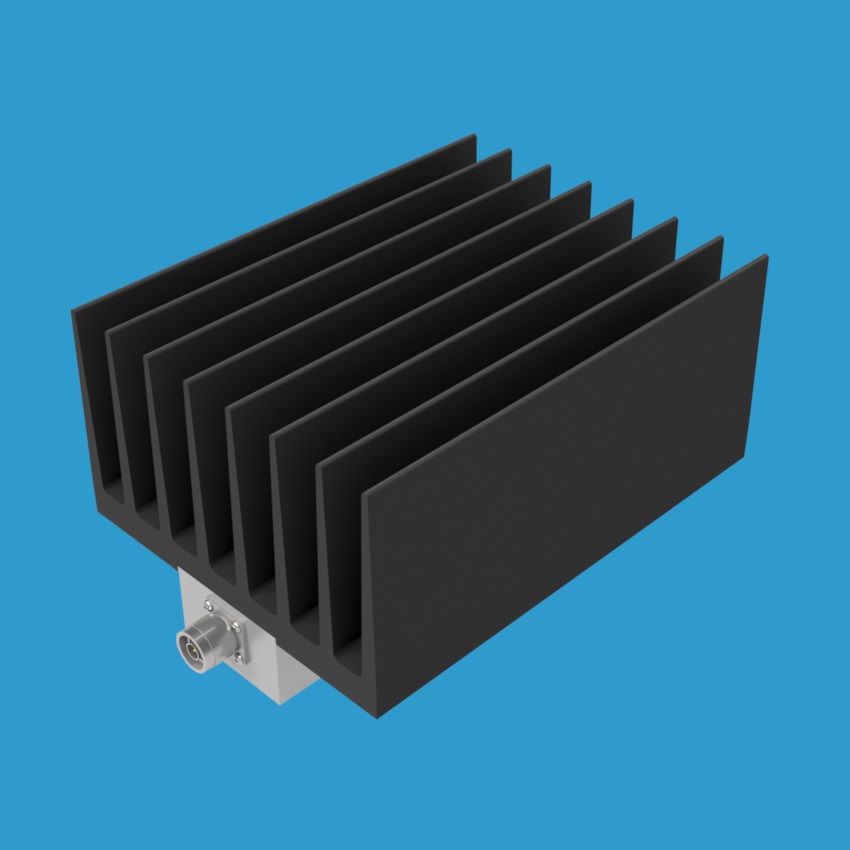

JFW model 50T-541 termination and mismatch 500 Watt average 50 Ohm impedance

500 Watt Mismatch DC-1GHz | 50T-541-XXX

JFW Model #: 50T-541-XXX
Impedance: 50 Ohm
Frequency Range: DC-1000 MHz
RF Input Power: 500 Watts
Heatsink Style: Square
RF Connectors: N, TNC, 7/16 male or female
Documentation: Data Sheet | Drawing

Clear
Categories: 50 Ohm Terminations and Mismatch Loads (75 to 1000 Watts), Terminations and Mismatch Loads
  • Description
  • Additional information

Description

Model 50T-541-XXX is a high power mismatch load operating DC-1GHz.  It is rated for 500 Watts average input power.  It has threaded mounting holes on the bottom side of the heatsink.  It is available with 50 Ohm RF connectors:  N, TNC, or 7/16 (male or female).

2.0:1 mismatch = 100 Ohm load in a 50 Ohm system
3.0:1 mismatch = 150 Ohm load in a 50 Ohm system
3.5:1 mismatch = 175 Ohm load in a 50 Ohm system
4.0:1 mismatch = 200 Ohm load in a 50 Ohm system

For model 50T-541-XXX, replace the XXX with the desired VSWR mismatch value and add the RF connector type at the end to create the full model number.  Specify male (M) or female (F) for the RF connector.

Example Model Numbers:

50T-541-2.0 N M  (2.0:1 mismatch)
50T-541-3.0 N M  (3.0:1 mismatch)
50T-541-3.5 N F  (3.5:1 mismatch)
50T-541-4.0 N F  (4.0:1 mismatch)

50T-541-2.0 TNC M  (2.0:1 mismatch)
50T-541-3.0 TNC M  (3.0:1 mismatch)
50T-541-3.5 TNC F  (3.5:1 mismatch)
50T-541-4.0 TNC F  (4.0:1 mismatch)

50T-541-2.0 7/16 M  (2.0:1 mismatch)
50T-541-3.0 7/16 M  (3.0:1 mismatch)
50T-541-3.5 7/16 F  (3.5:1 mismatch)
50T-541-4.0 7/16 F  (4.0:1 mismatch)

Additional information

Connector Type

7/16 Female, 7/16 Male, N Female, N Male, TNC Female, TNC Male

VSWR

Mismatch 1.3:1, Mismatch 1.4:1, Mismatch 1.5:1, Mismatch 1.6:1, Mismatch 1.7:1, Mismatch 1.8:1, Mismatch 1.9:1, Mismatch 2.0:1, Mismatch 2.1:1, Mismatch 2.2:1, Mismatch 2.3:1, Mismatch 2.4:1, Mismatch 2.5:1, Mismatch 2.6:1, Mismatch 2.7:1, Mismatch 2.8:1, Mismatch 2.9:1, Mismatch 3.0:1, Mismatch 3.1:1, Mismatch 3.2:1, Mismatch 3.3:1, Mismatch 3.4:1, Mismatch 3.5:1, Mismatch 3.6:1, Mismatch 3.7:1, Mismatch 3.8:1, Mismatch 3.9:1, Mismatch 4.0:1, Mismatch 4.1:1, Mismatch 4.2:1, Mismatch 4.3:1, Mismatch 4.4:1, Mismatch 4.5:1, Mismatch 4.6:1, Mismatch 4.7:1, Mismatch 4.8:1, Mismatch 4.9:1, Mismatch 5.0:1
