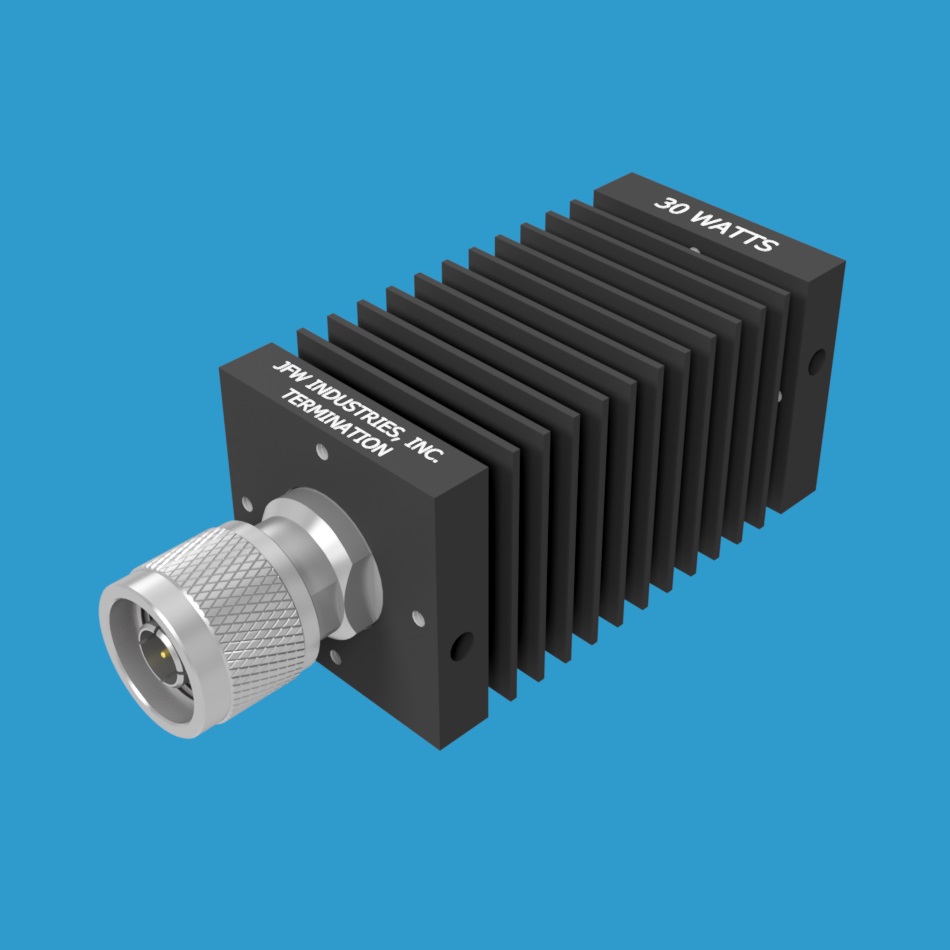

JFW model 50T-548 termination 30 Watt with 50 Ohm N male

30 Watt Termination DC-3GHz | 50T-548

JFW Model #: 50T-548
Impedance: 50 Ohm
Frequency Range: DC-3000 MHz
RF Input Power: 30 Watts
Heatsink Style: Square
RF Connectors: 7/16, BNC, N, SMA, TNC
Documentation: Data Sheet | Drawing

Clear
Categories: 50 Ohm Terminations and Mismatch Loads (5 to 50 Watts), Terminations and Mismatch Loads
  • Description
  • Additional information

Description

Model 50T-548 is a 50 Ohm termination (aka dummy load) rated at 30 Watts RF input power.  The heatsink is square with mounting holes on the bottom side and both ends.  The unit operates DC-3000 MHz and is available with BNC, N, SMA, TNC or 7/16 RF connectors as either male or female.

Additional information

Weight 0.18 lbs
Connector Type

7/16 Female, 7/16 Male, BNC Female, BNC Male, N Female, N Male, SMA Female, SMA Male, TNC Female, TNC Male
