Benchtop Manual Attenuator | Model 75BR-014

75 Ohm Benchtop Attenuator DC-1000 MHz 0-90dB x 1dB | 75BR-014

JFW Model #: 75BR-014
Type: Manually variable attenuator
Enclosure: Benchtop
Impedance: 75 Ohm
dB Total: 90 dB
dB Step: 1 dB
Frequency Range: DC-1000 MHz
RF Input Power: 1 Watt
RF Connectors: BNC, F, N
Documentation: Data Sheet | Drawing

Clear
Categories: Benchtop Manual Attenuators (Enclosure), Manually Variable Attenuators
  • Description
  • Additional information

Description

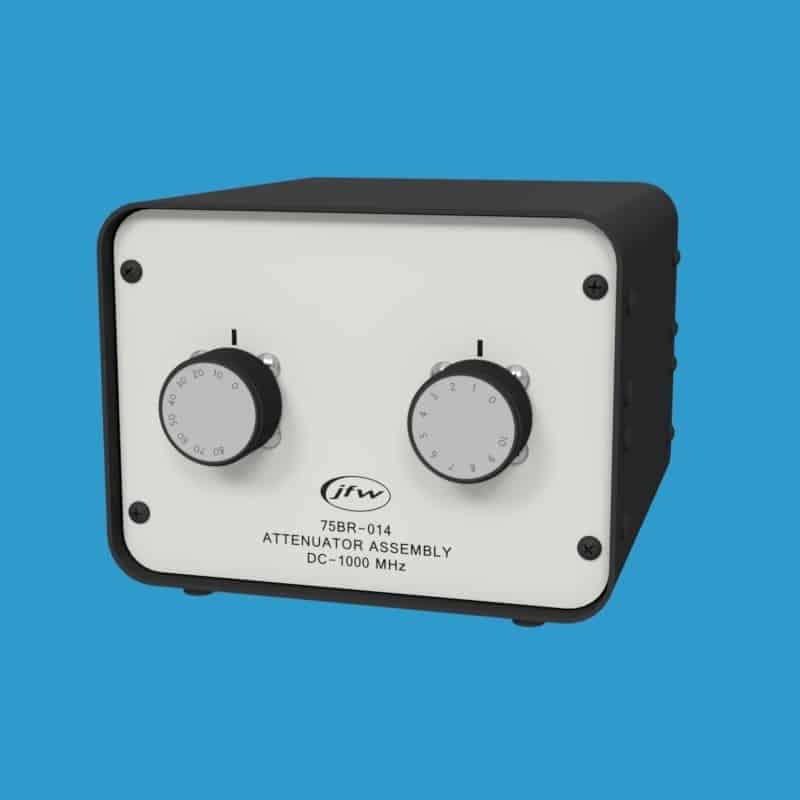

Model 75BR-014 is a 75 Ohm manual step attenuator in a benchtop enclosure.  The attenuation range is 0 to 90dB by 1dB steps.  It operates DC-1000 MHz and is rated for 1 Watt average of RF input power.  There are two knobs on the front panel used to set the attenuation value.  One knob is 1dB step.  The other knob is 10dB step.  It is available with 75 Ohm coaxial RF connectors:  BNC, F or N female.  The two RF connectors are located on the rear panel.

Additional information

Weight 2.3 lbs
Connector Type

BNC Female, F Female, N Female
