Benchtop Manual Attenuator | Model 75BR-036

75 Ohm Benchtop Attenuator DC-1218 MHz 0-70.75dB x 0.25dB | 75BR-036

JFW Model #: 75BR-036
Type: Manually variable attenuator
Enclosure: Benchtop
Impedance: 75 Ohm
dB Total: 70.75 dB
dB Step: 0.25 dB
Frequency Range: DC-1218 MHz
RF Input Power: 1 Watt
RF Connectors: F Female
Documentation: Data Sheet | Drawing

Categories: Benchtop Manual Attenuators (Enclosure), Manually Variable Attenuators
  • Description
  • Additional information

Description

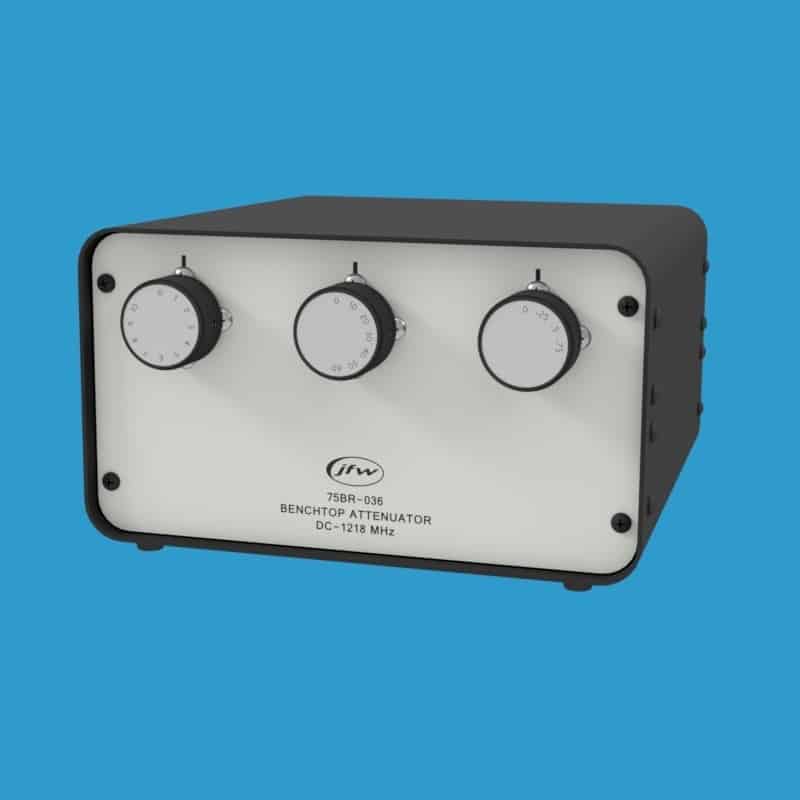

Model 75BR-036 is a 75 Ohm manual step attenuator in a benchtop enclosure.  The attenuation range is 0 to 70.75dB by 0.25dB steps.  It operates DC-1218 MHz and is rated at 1 Watt average of RF input power.  There are three knobs on the front panel used to set the attenuation value (0.25dB step knob, 1dB step knob, 10dB step knob).  It is available with F female 75 Ohm coaxial RF connectors.  The two RF connectors are located on the rear panel.

Additional information

Weight 2.3 lbs
Connector Type

F Female
