You are here: Home1 / Shop2 / Industry Specific Products3 / CATV & Satellite Models4 / Resistive Coupler 75 Ohm DC-2150 MHz | 75C-049-XX

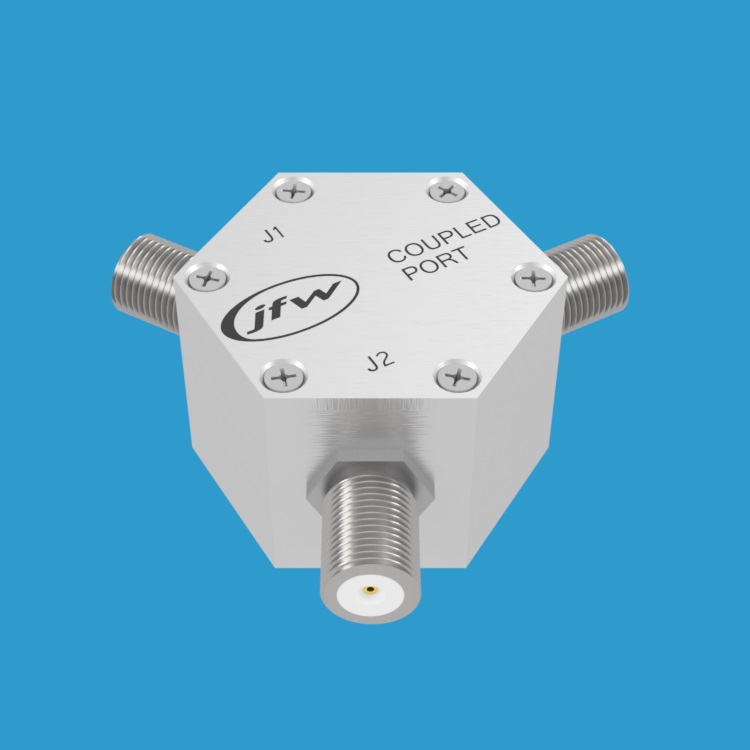

Resistive Coupler with 75 Ohm F female

Resistive Coupler 75 Ohm DC-2150 MHz | 75C-049-XX

JFW Model #: 75C-049-XX
Impedance: 75 Ohm
Description: Resistive Coupler
Coupling Value: 20 dB
Frequency Range: DC-2150 MHz
RF Input Power: 0.5 Watts
RF Connectors: F Female
Documentation: Data Sheet | Drawing

Categories: CATV & Satellite Models, Couplers, Industry Specific Products, Test Accessories
  • Description
  • Additional information

Description

75C-049-20 is a 20dB resistive coupler.  It has 75 Ohm impedance and is available with F female connectors.  It couples in both directions.  This model operates from DC to 2150 MHz.

RF path descriptions:

  • J1 to J2:  insertion loss
  • J2 to J1:  insertion loss
  • J1 to COUPLED PORT:  coupled value
  • J2 to COUPLED PORT:  coupled value
  • COUPLED PORT to J1:  coupled value
  • COUPLED PORT to J2:  coupled value

Additional information

Connector Type

F Female

Coupling Value

20 dB
