Description

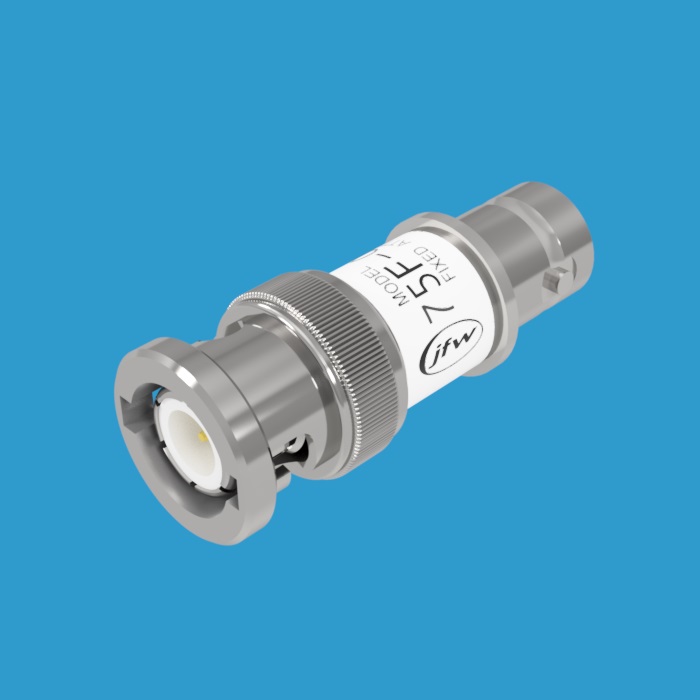

Model 75F-xxx BNC is a 75 Ohm coaxial fixed attenuator rated at 1 Watt maximum RF input power and operates DC-500 MHz. Available dB values from 1dB to 30dB. It is available with BNC type RF connectors.
For model 75F-XXX BNC, replace the XXX with the desired attenuation value to complete the model number.
Example Model Numbers:
75F-001 BNC (1dB with BNC male/female)
75F-002 BNC (2dB with BNC male/female)
75F-003 BNC (3dB with BNC male/female)
75F-004 BNC (4dB with BNC male/female)
75F-005 BNC (5dB with BNC male/female)
75F-006 BNC (6dB with BNC male/female)
75F-007 BNC (7dB with BNC male/female)
75F-008 BNC (8dB with BNC male/female)
75F-009 BNC (9dB with BNC male/female)
75F-010 BNC (10dB with BNC male/female)
75F-011 BNC (11dB with BNC male/female)
75F-012 BNC (12dB with BNC male/female)
75F-013 BNC (13dB with BNC male/female)
75F-014 BNC (14dB with BNC male/female)
75F-015 BNC (15dB with BNC male/female)
75F-016 BNC (16dB with BNC male/female)
75F-017 BNC (17dB with BNC male/female)
75F-018 BNC (18dB with BNC male/female)
75F-019 BNC (19dB with BNC male/female)
75F-020 BNC (20dB with BNC male/female)
75F-021 BNC (21dB with BNC male/female)
75F-022 BNC (22dB with BNC male/female)
75F-023 BNC (23dB with BNC male/female)
75F-024 BNC (24dB with BNC male/female)
75F-025 BNC (25dB with BNC male/female)
75F-026 BNC (26dB with BNC male/female)
75F-027 BNC (27dB with BNC male/female)
75F-028 BNC (28dB with BNC male/female)
75F-029 BNC (29dB with BNC male/female)
75F-030 BNC (30dB with BNC male/female)
