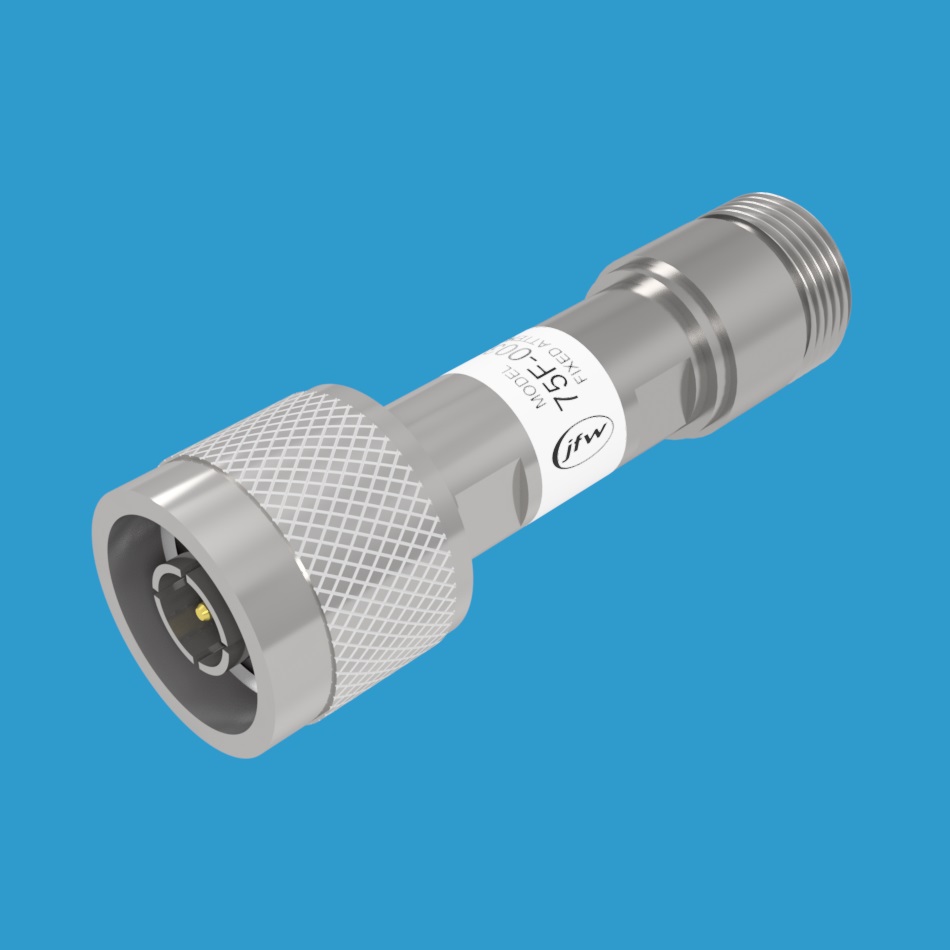

JFW model 75F-XXX N fixed attenuator 1 Watt with 75 Ohm N male/female connectors

1 Watt Fixed Attenuator DC-1GHz | 75F-XXX N

JFW Model #: 75F-XXX N
Impedance: 75 Ohm
Frequency Range: DC-1000 MHz
RF Input Power: 1 Watt
Attenuation Values: 1-20 dB
RF Connectors: N
Documentation: Data Sheet | Drawing

Clear
Categories: 75 Ohm Fixed Attenuators, Fixed Attenuators
  • Description
  • Additional information

Description

Model 75F-xxx N is a 75 Ohm coaxial fixed attenuator rated at 1 Watt maximum RF input power and operates DC-1000 MHz.  Available dB values from 1dB to 20dB.  It is available with N type RF connectors.

For model 75F-XXX N, replace the XXX with the desired attenuation value to complete the model number.

Example Model Numbers:

75F-001 N   (1dB with N male/female)
75F-002 N   (2dB with N male/female)
75F-003 N   (3dB with N male/female)
75F-004 N   (4dB with N male/female)
75F-005 N   (5dB with N male/female)
75F-006 N   (6dB with N male/female)
75F-007 N   (7dB with N male/female)
75F-008 N   (8dB with N male/female)
75F-009 N   (9dB with N male/female)
75F-010 N   (10dB with N male/female)
75F-011 N   (11dB with N male/female)
75F-012 N   (12dB with N male/female)
75F-013 N   (13dB with N male/female)
75F-014 N   (14dB with N male/female)
75F-015 N   (15dB with N male/female)
75F-016 N   (16dB with N male/female)
75F-017 N   (17dB with N male/female)
75F-018 N   (18dB with N male/female)
75F-019 N   (19dB with N male/female)
75F-020 N   (20dB with N male/female)

Additional information

Attenuation Value

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20

Connector Type

N
