You are here: Home1 / Shop2 / Fixed Attenuators3 / 75 Ohm Fixed Attenuators4 / 1 Watt Fixed Attenuator DC-1GHz | 75F-XXX TNC

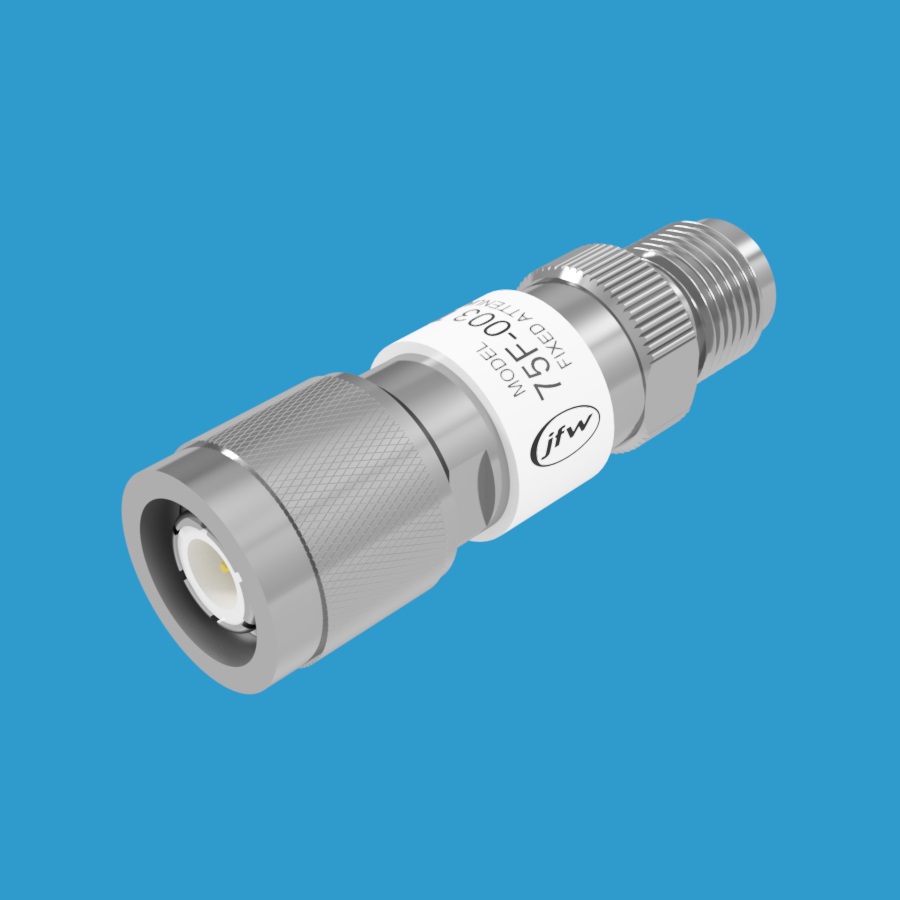

JFW model 75F-XXX TNC fixed attenuator 1 Watt with 75 Ohm TNC male/female connectors

1 Watt Fixed Attenuator DC-1GHz | 75F-XXX TNC

JFW Model #: 75F-XXX TNC
Impedance: 75 Ohm
Frequency Range: DC-1000 MHz
RF Input Power: 1 Watt
Attenuation Values: 1-20 dB
RF Connectors: TNC
Documentation: Data Sheet | Drawing

Clear
Categories: 75 Ohm Fixed Attenuators, Fixed Attenuators
  • Description
  • Additional information

Description

Model 75F-xxx TNC is a 75 Ohm coaxial fixed attenuator rated at 1 Watt maximum RF input power and operates DC-1000 MHz.  Available dB values from 1dB to 20dB.  It is available with TNC male/female type RF connectors.

For model 75F-XXX TNC, replace the XXX with the desired attenuation value to complete the model number.

Example Model Numbers:

75F-001 TNC   (1dB with TNC male/female)
75F-002 TNC   (2dB with TNC male/female)
75F-003 TNC   (3dB with TNC male/female)
75F-004 TNC   (4dB with TNC male/female)
75F-005 TNC   (5dB with TNC male/female)
75F-006 TNC   (6dB with TNC male/female)
75F-007 TNC   (7dB with TNC male/female)
75F-008 TNC   (8dB with TNC male/female)
75F-009 TNC   (9dB with TNC male/female)
75F-010 TNC   (10dB with TNC male/female)
75F-011 TNC   (11dB with TNC male/female)
75F-012 TNC   (12dB with TNC male/female)
75F-013 TNC   (13dB with TNC male/female)
75F-014 TNC   (14dB with TNC male/female)
75F-015 TNC   (15dB with TNC male/female)
75F-016 TNC   (16dB with TNC male/female)
75F-017 TNC   (17dB with TNC male/female)
75F-018 TNC   (18dB with TNC male/female)
75F-019 TNC   (19dB with TNC male/female)
75F-020 TNC   (20dB with TNC male/female)

Additional information

Attenuation Value

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20

Connector Type

TNC
