Description

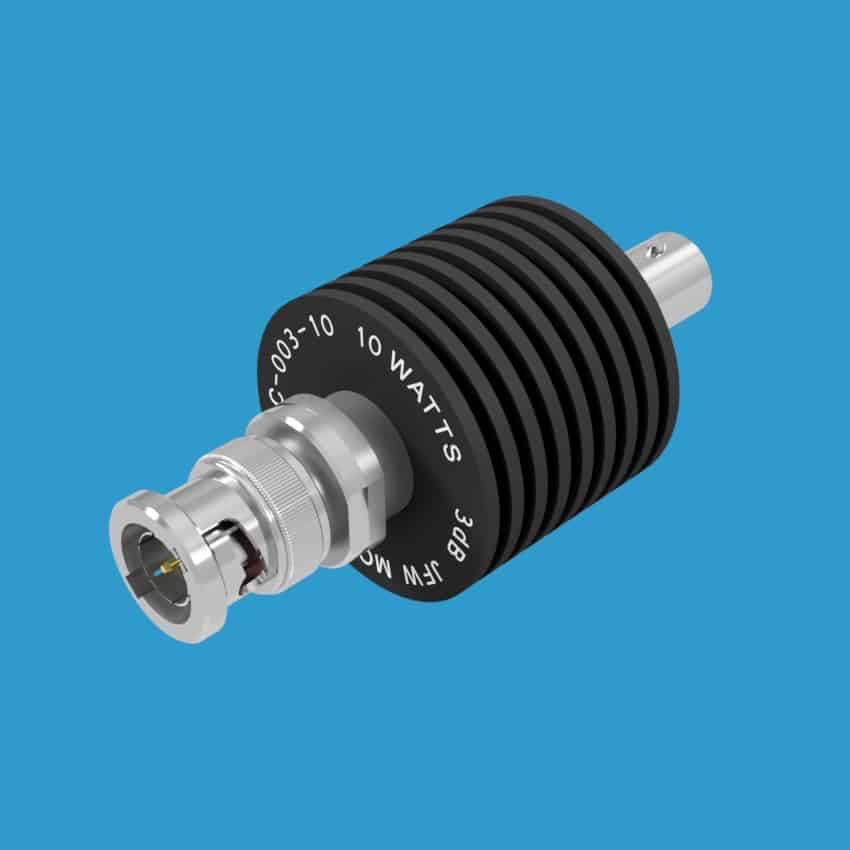

Model 75FHC-xxx-10 is a 75 Ohm coaxial fixed attenuator with a round heatsink rated at 10 Watts maximum RF input power. Available dB values from 3dB to 30dB. The RF connectors can be BNC male/female or N male/female.
For model 75FHC-XXX-10, replace the XXX with the desired attenuation value and add the RF connector type at the end to create the full model number.
Example Model Numbers:
75FHC-003-10 BNC (3dB with BNC male/female)
75FHC-004-10 BNC (4dB with BNC male/female)
75FHC-005-10 BNC (5dB with BNC male/female)
75FHC-006-10 BNC (6dB with BNC male/female)
75FHC-007-10 BNC (7dB with BNC male/female)
75FHC-008-10 BNC (8dB with BNC male/female)
75FHC-009-10 BNC (9dB with BNC male/female)
75FHC-010-10 BNC (10dB with BNC male/female)
75FHC-011-10 BNC (11dB with BNC male/female)
75FHC-012-10 BNC (12dB with BNC male/female)
75FHC-013-10 BNC (13dB with BNC male/female)
75FHC-014-10 BNC (14dB with BNC male/female)
75FHC-015-10 BNC (15dB with BNC male/female)
75FHC-016-10 N (16dB with N male/female)
75FHC-017-10 N (17dB with N male/female)
75FHC-018-10 N (18dB with N male/female)
75FHC-019-10 N (19dB with N male/female)
75FHC-020-10 N (20dB with N male/female)
75FHC-021-10 N (21dB with N male/female)
75FHC-022-10 N (22dB with N male/female)
75FHC-023-10 N (23dB with N male/female)
75FHC-024-10 N (24dB with N male/female)
75FHC-025-10 N (25dB with N male/female)
75FHC-026-10 N (26dB with N male/female)
75FHC-027-10 N (27dB with N male/female)
75FHC-028-10 N (28dB with N male/female)
75FHC-029-10 N (29dB with N male/female)
75FHC-030-10 N (30dB with N male/female)
Non-standard and mixed RF connector configurations are available upon request:
75FHC-020-10 BNC F/F (BNC female/female)
75FHC-020-10 N F/F (N female/female)
75FHC-020-10 BNC M/N F (BNC male/N female)
75FHC-020-10 BNC F/N F (BNC female/N female)
75FHC-020-10 N M/BNC F (N male/BNC female)
75FHC-020-10 N F/BNC F (N female/BNC female)
