You are here: Home1 / Shop2 / Fixed Attenuators3 / 75 Ohm Fixed Attenuators4 / 1 Watt Fixed Attenuator DC-2GHz | 75FP-XXX-2G

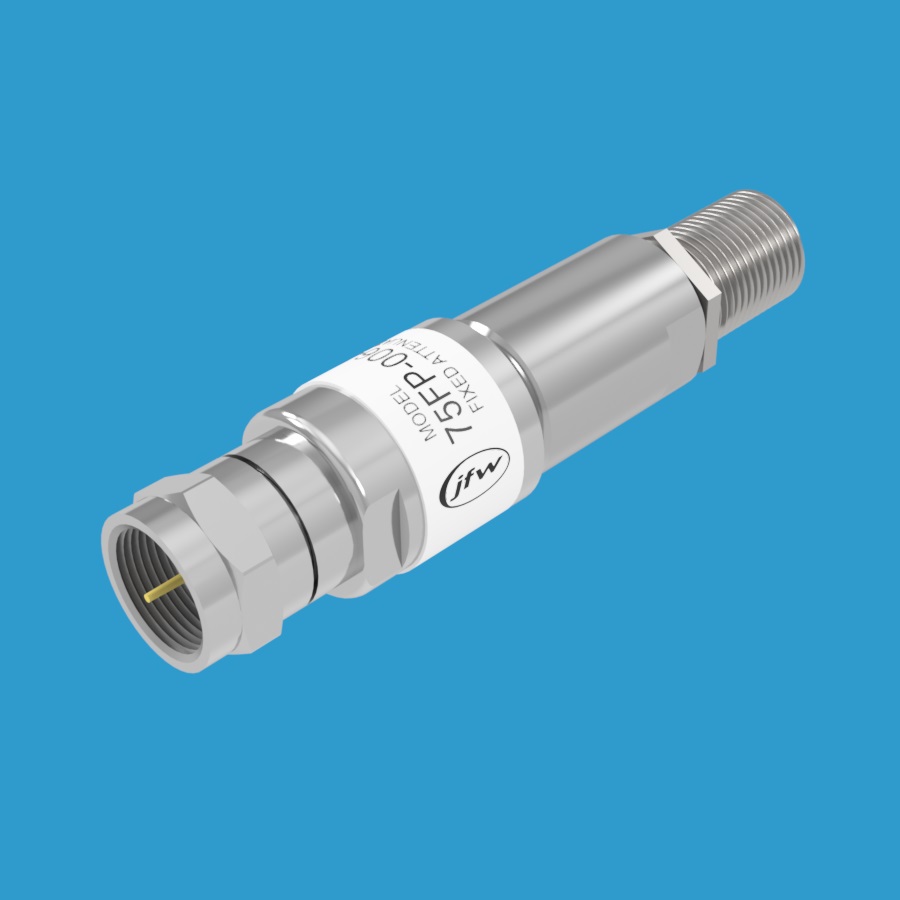

JFW model 75FP-XXX-2G fixed attenuator 1 Watt with 75 Ohm F male/female connectors

1 Watt Fixed Attenuator DC-2GHz | 75FP-XXX-2G

JFW Model #: 75FP-XXX-2G
Impedance: 75 Ohm
Frequency Range: DC-2000 MHz
RF Input Power: 1 Watt
Attenuation Values: 1-20 dB
RF Connectors: BNC, F, N, TNC
Documentation: Data Sheet | Drawing (BNC) | Drawing (F) | Drawing (N) | Drawing (TNC)

Clear
Categories: 75 Ohm Fixed Attenuators, CATV & Satellite Models, Fixed Attenuators, Industry Specific Products
  • Description
  • Additional information

Description

Model 75FP-xxx-2G is a 75 Ohm coaxial fixed attenuator rated at 1 Watt maximum RF input power that operates DC-2 GHz.  Available dB values from 1dB to 20dB.  The RF connectors can be BNC, TNC, N or F.

For model 75FP-XXX-2G, replace the XXX with the desired attenuation value and add the RF connector type at the end to create the full model number.

Example Model Numbers:

75FP-001-2G BNC   (1dB with BNC male/female)
75FP-002-2G BNC   (2dB with BNC male/female)
75FP-003-2G BNC   (3dB with BNC male/female)
75FP-004-2G BNC   (4dB with BNC male/female)
75FP-005-2G BNC   (5dB with BNC male/female)

75FP-006-2G TNC   (6dB with TNC male/female)
75FP-007-2G TNC   (7dB with TNC male/female)
75FP-008-2G TNC   (8dB with TNC male/female)
75FP-009-2G TNC   (9dB with TNC male/female)
75FP-010-2G TNC   (10dB with TNC male/female)

75FP-011-2G F   (11dB with F male/female)
75FP-012-2G F   (12dB with F male/female)
75FP-013-2G F   (13dB with F male/female)
75FP-014-2G F   (14dB with F male/female)
75FP-015-2G F   (15dB with F male/female)

75FP-016-2G N   (16dB with N male/female)
75FP-017-2G N   (17dB with N male/female)
75FP-018-2G N   (18dB with N male/female)
75FP-019-2G N   (19dB with N male/female)
75FP-020-2G N   (20dB with N male/female)

Additional information

Weight N/A
Attenuation Value

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20

Connector Type

BNC, F, N, TNC
