You are here: Home1 / Shop2 / Programmable Attenuators3 / 75 Ohm Solid-State Programmable Attenuators4 / Programmable Attenuator 50-2000 MHz 0-127dB x 1dB | 75P-177

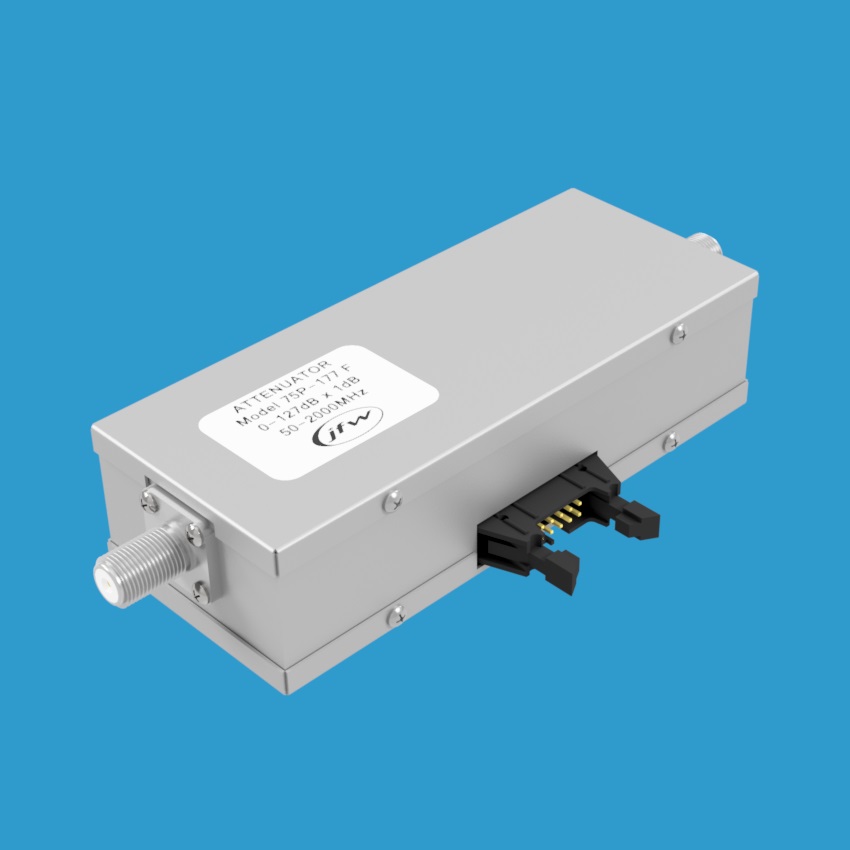

75 Ohm programmable attenuator with F female connectors

Programmable Attenuator 50-2000 MHz 0-127dB x 1dB | 75P-177

JFW Model #: 75P-177
Type:  Solid-State Programmable Attenuator
Impedance:  75 Ohm
dB Total: 127 dB
dB Step: 1 dB
Frequency Range: 50-2000 MHz
Switching Speed: 2 uS
RF Input Power: +10 dBm
Control: TTL
RF Connectors: F
Documentation: Data Sheet | Drawing

Categories: 75 Ohm Solid-State Programmable Attenuators, Programmable Attenuators
  • Description
  • Additional information

Description

Model 75P-177 is a 75 Ohm solid-state programmable attenuator with attenuation range 0 to 127dB by 1dB steps.  It operates 50 MHz to 2 GHz and is rated for +10 dBm of RF input power.  This step attenuator is available with 75 Ohm BNC, F or N female coaxial RF connectors.  The attenuator has seven individually controlled steps:  1dB, 2dB, 4dB, 8dB, 16dB, 32dB and 64dB.

TTL Controlled
Each of the attenuation steps has a corresponding TTL control line.  There are seven TTL control lines for this model.  See the outline drawing for the control pinout.  TTL high will turn on an attenuation step.  TTL low will turn off an attenuation step.  Use multiple control lines simultaneously to set combinational attenuation values.  To activate the 7dB setting, the 1dB/2dB/4dB control lines must all be TTL high.  To activate the 17dB setting, the 1dB/16dB control lines must be TTL high.  To set the attenuator to the insertion loss state (i.e. 0dB setting), all control lines must be set to TTL low.

Recommended Accessories:

Additional information

Connector Type

F Female
