You are here: Home1 / Shop2 / RF Switches3 / 75 Ohm Electro-Mechanical RF Switches4 / 1P2T RF Switch DC-2150 MHz | 75S-111

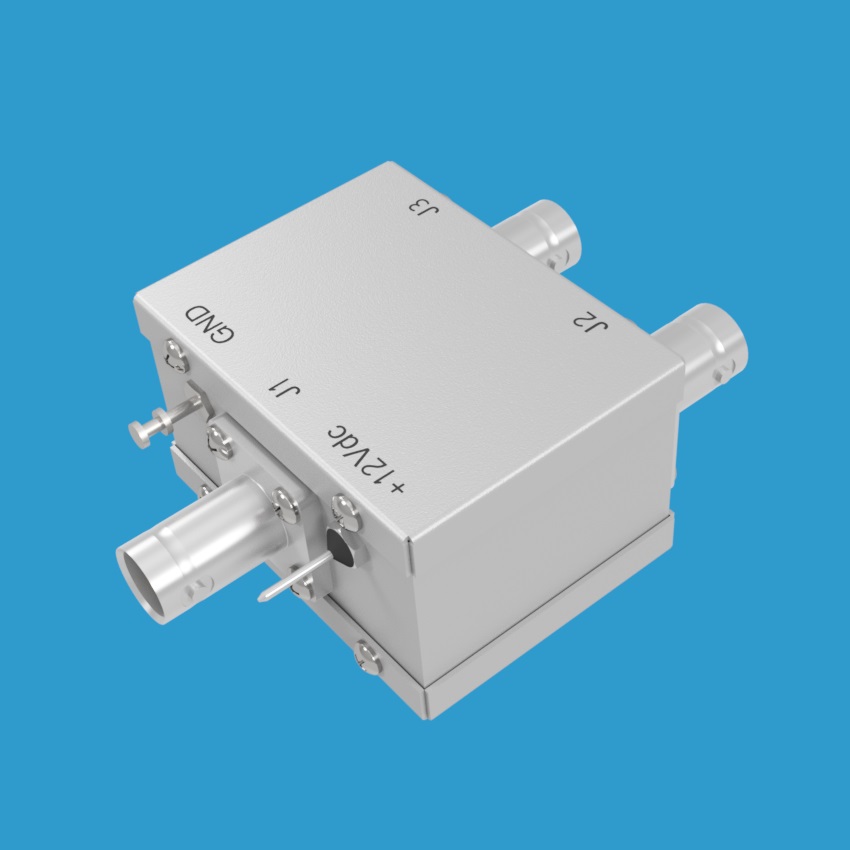

75S-111 BNC electro-mechanical 1P2T RF switch

1P2T RF Switch DC-2150 MHz | 75S-111

JFW Model #: 75S-111
Impedance: 75 Ohm
Switch Configuration: 1P2T
Switch Type: Failsafe, Absorptive
Frequency Range: DC-2150 MHz
Switching Speed: 10 mS
RF Connectors: BNC, F or TNC
Control Voltage: +12 Vdc
Documentation: Data Sheet | Drawing (BNC) | Drawing (F)

Clear
Categories: 75 Ohm Electro-Mechanical RF Switches, CATV & Satellite Models, Industry Specific Products, RF Switches
  • Description
  • Additional information

Description

Model 75S-111 is a 75 Ohm electro-mechanical 1P2T RF switch operating DC-2150 MHz.  The 1P2T is failsafe and absorptive (i.e. self-terminating).  The unused port will self-terminate at 75 Ohm impedance.  Available with 75 Ohm RF connectors:  BNC, F or TNC.  This 1P2T RF switch has one control line.  The control line is activated with +12 Vdc signal level.
