You are here: Home1 / Shop2 / Test Systems3 / RF Switch Assemblies4 / Benchtop RF Switch Assemblies (75 Ohm)5 / Assembly with 4 RF Switches 1P2T 5-2150 MHz | 75SA-096

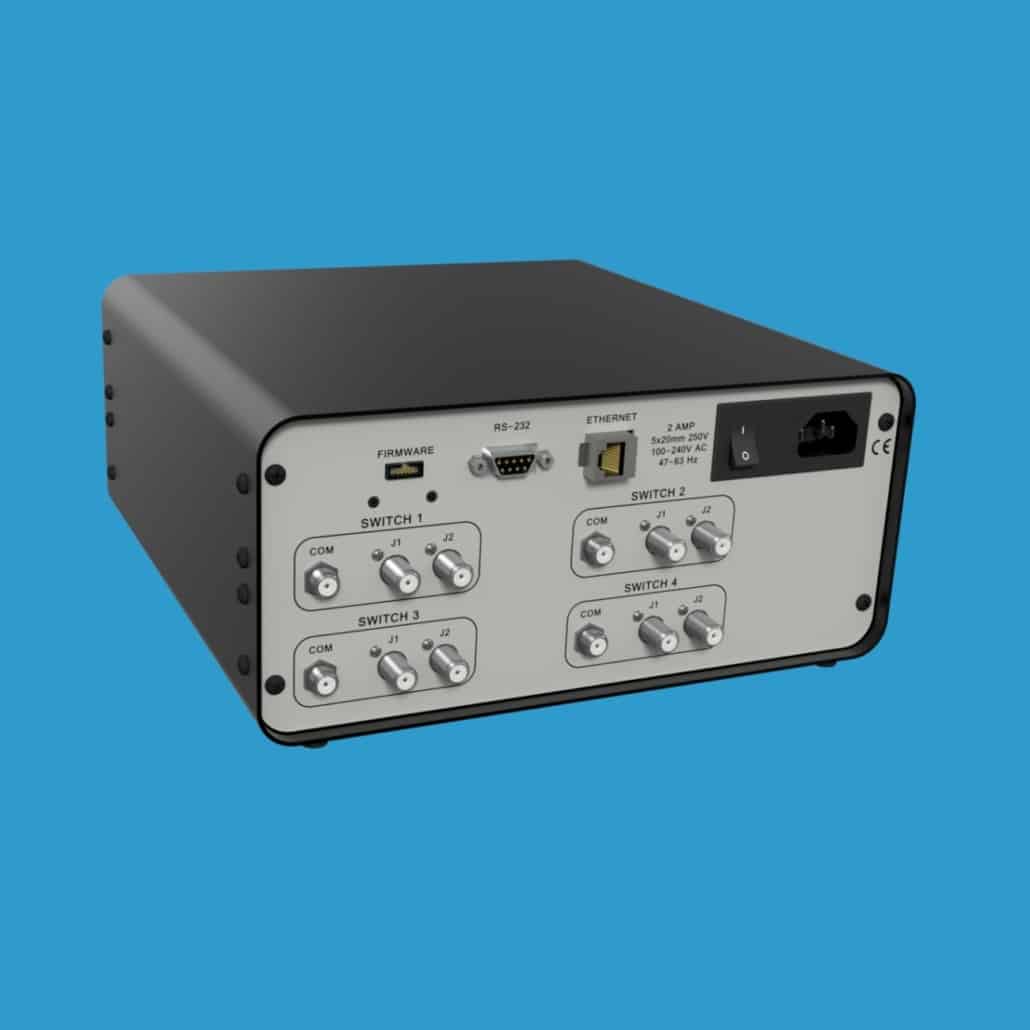

JFW model 75SA-096 F rf switch assembly with Ethernet and Serial remote control

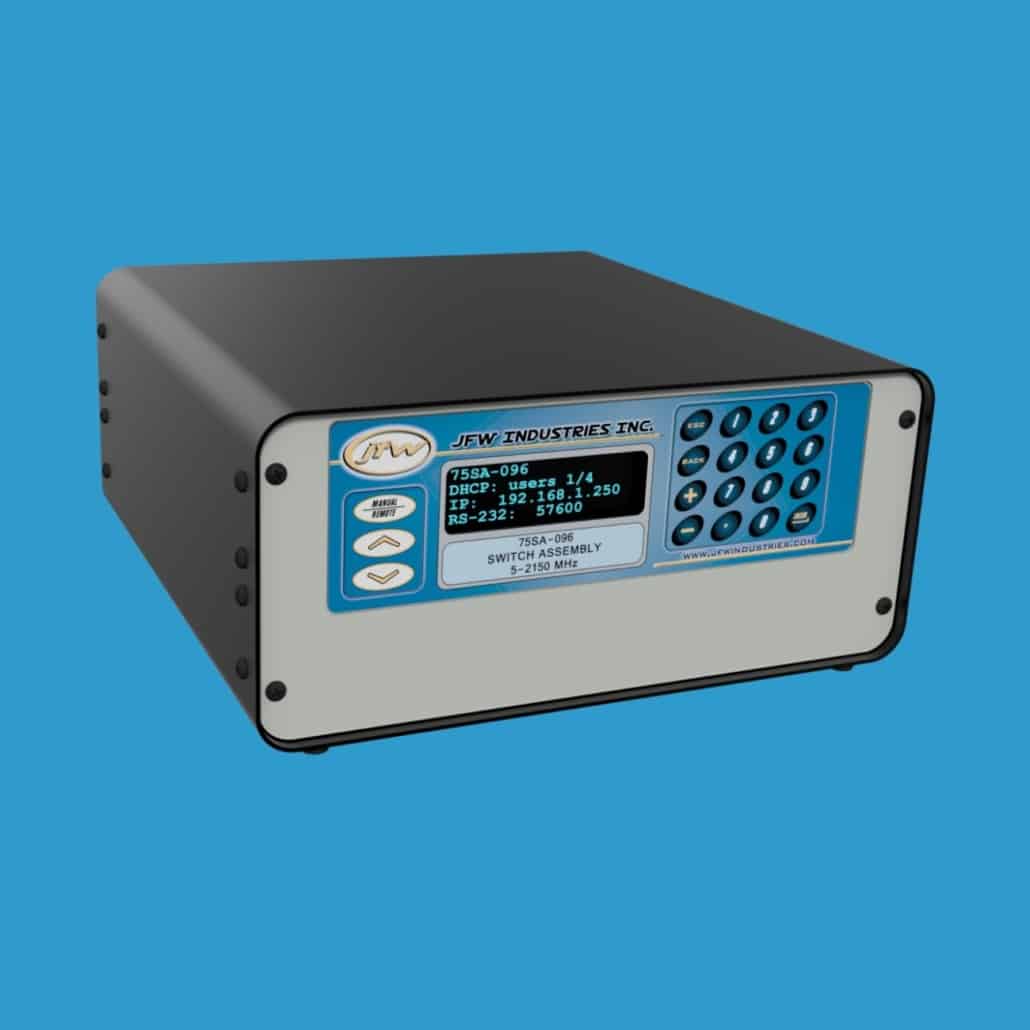

JFW model 75SA-096 F rf switch assembly with Ethernet and Serial remote control

Assembly with 4 RF Switches 1P2T 5-2150 MHz | 75SA-096

JFW Model #: 75SA-096
Impedance: 75 Ohm
Number of Switches: 4 Switches
RF Switch Type: 1P2T Self-Terminating
Frequency Range: 5-2150 MHz
RF Input Power: +20 dBm
Control: Manual, Ethernet, RS-232
RF Connectors: BNC, F, TNC
Documentation: Data Sheet | Drawing

Clear
Categories: Benchtop RF Switch Assemblies (75 Ohm), RF Switch Assemblies, Test Systems
  • Additional information

Additional information

Connector Type

BNC Female, F Female, TNC Female
