You are here: Home1 / Shop2 / Manually Variable Attenuators3 / Toggle Attenuators4 / 75 Ohm Toggle Attenuator DC-500 MHz 0-65dB x 1dB | 75TA-006
Manual attenuator with Toggle Switches
Manual attenuator with Toggle Switches

75 Ohm Toggle Attenuator DC-500 MHz 0-65dB x 1dB | 75TA-006

JFW Model #: 75TA-006
Type: Manually variable attenuator
Impedance: 75 Ohm
dB Total: 65 dB
dB Step: 1 dB
Frequency Range: DC-500 MHz
RF Input Power: 0.5 Watts
RF Connectors: BNC, F, N
Documentation: Data Sheet |Drawing

Clear
Categories: Manually Variable Attenuators, Toggle Attenuators
  • Description
  • Additional information

Description

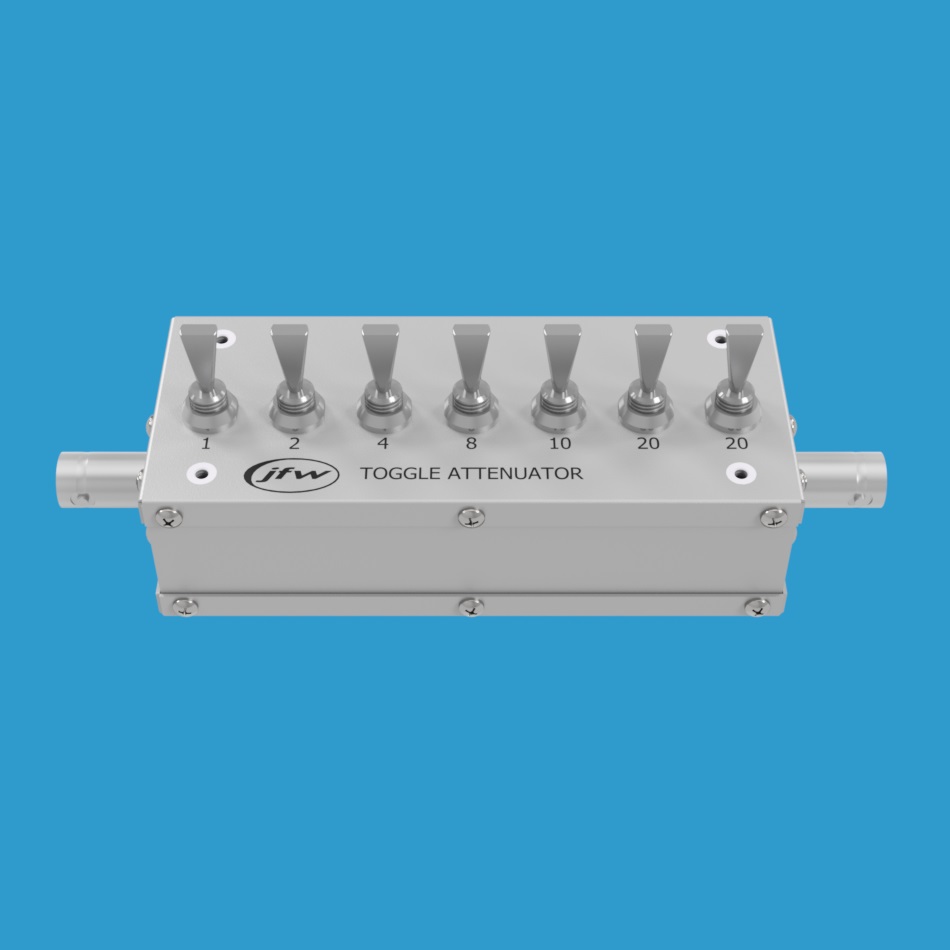

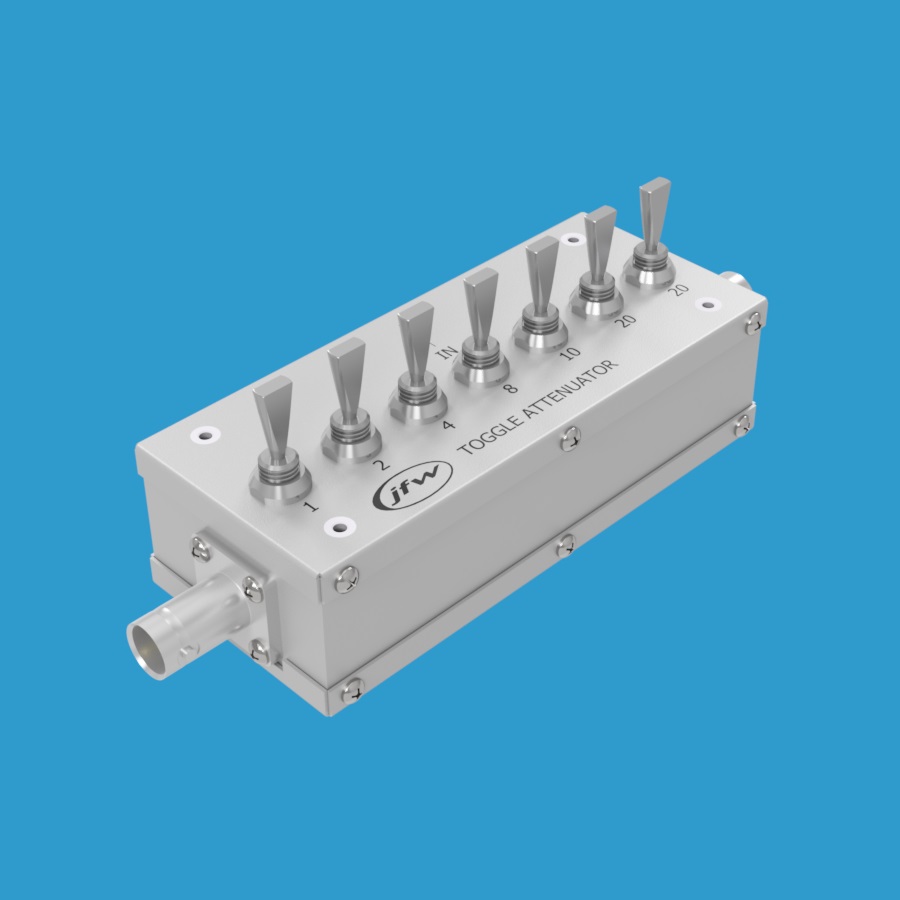

Model 75TA-006 is a 75 Ohm toggle switch attenuator with attenuation range 0 to 65dB by 1dB steps.  It operates DC-500 MHz and is rated for 0.5 Watts average RF input power.  Each toggle switch controls an attenuation step.  This model has 7 toggles total:  1dB, 2dB, 4dB, 8dB, 10dB, 20dB and 20dB.  Activate multiple toggles simultaneously to achieve combinational attenuation values.  This manual attenuator is available with 75 Ohm coaxial RF connectors:  BNC, F or N female.  The attenuator has four mounting holes to allow for panel mounting.

Additional information

Connector Type

BNC Female, F Female, N Female
