You are here: Home1 / Shop2 / Fixed Attenuators3 / 50 Ohm Fixed Attenuators (5 to 50 Watts)4 / 10 Watt Fixed Attenuator DC-26.5 GHz | 50HFFA-XXX-10/26

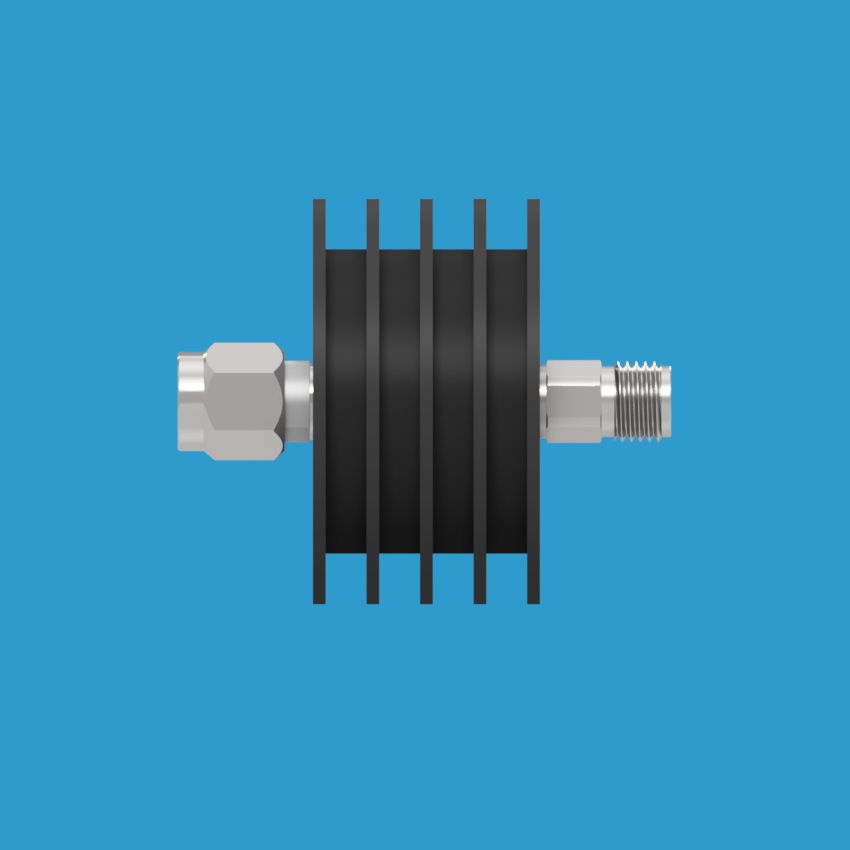

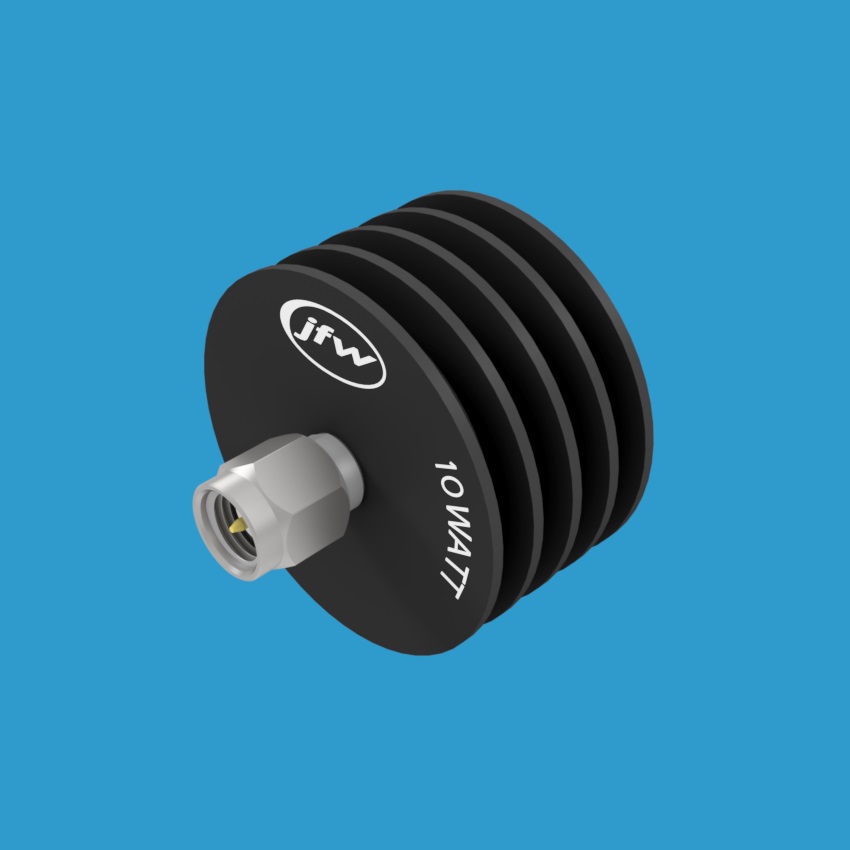

Fixed Attenuator 10 Watts DC-26.5GHz SMA male/female
Fixed Attenuator 10 Watts DC-26.5GHz SMA male/female

10 Watt Fixed Attenuator DC-26.5 GHz | 50HFFA-XXX-10/26

JFW Model #: 50HFFA-XXX-10/26
Type:  Fixed Attenuator
Impedance: 50 Ohm
Frequency Range: DC-26.5 GHz
RF Input Power: 10 Watts
Attenuation Values: 1-30 dB
Heatsink Style: Round
RF Connectors: SMA male/female
Documentation: data sheet | drawing

Clear
Categories: 50 Ohm Fixed Attenuators (5 to 50 Watts), Fixed Attenuators
  • Description
  • Additional information

Description

Model 50HFFA-xxx-10/26 is a 50 Ohm coaxial fixed attenuator rated at 10 Watts average input power and operates DC-26.5 GHz. This model is available with SMA connectors.

For model 50HFFA-xxx-10/26, replace the XXX with the desired attenuation value and add the RF connector type at the end to create the full model number.

Example Model Numbers:

50HFFA-001-10/26SMA (1dB with SMA male/female)
50HFFA-002-10/26SMA (2dB with SMA male/female)
50HFFA-003-10/26SMA (3dB with SMA male/female)
50HFFA-004-10/26SMA (4dB with SMA male/female)
50HFFA-005-10/26SMA (5dB with SMA male/female)
50HFFA-006-10/26SMA (6dB with SMA male/female)
50HFFA-007-10/26SMA (7dB with SMA male/female)
50HFFA-008-10/26SMA (8dB with SMA male/female)
50HFFA-009-10/26SMA (9dB with SMA male/female)
50HFFA-010-10/26SMA (10dB with SMA male/female)
50HFFA-011-10/26SMA (11dB with SMA male/female)
50HFFA-012-10/26SMA (12dB with SMA male/female)
50HFFA-013-10/26SMA (13dB with SMA male/female)
50HFFA-014-10/26SMA (14dB with SMA male/female)
50HFFA-015-10/26SMA (15dB with SMA male/female)
50HFFA-016-10/26SMA (16dB with SMA male/female)
50HFFA-017-10/26SMA (17dB with SMA male/female)
50HFFA-018-10/26SMA (18dB with SMA male/female)
50HFFA-019-10/26SMA (19dB with SMA male/female)
50HFFA-020-10/26SMA (20dB with SMA male/female)
50HFFA-021-10/26SMA (21dB with SMA male/female)
50HFFA-022-10/26SMA (22dB with SMA male/female)
50HFFA-023-10/26SMA (23dB with SMA male/female)
50HFFA-024-10/26SMA (24dB with SMA male/female)
50HFFA-025-10/26SMA (25dB with SMA male/female)
50HFFA-026-10/26SMA (26dB with SMA male/female)
50HFFA-027-10/26SMA (27dB with SMA male/female)
50HFFA-028-10/26SMA (28dB with SMA male/female)
50HFFA-029-10/26SMA (29dB with SMA male/female)
50HFFA-030-10/26SMA (30dB with SMA male/female)

Additional information

Attenuation Value

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30
