You are here: Home1 / Shop2 / Fixed Attenuators3 / 50 Ohm Fixed Attenuators (5 to 50 Watts)4 / 10 Watt Fixed Attenuator DC-40 GHz | 50HFFB-XXX-10/40

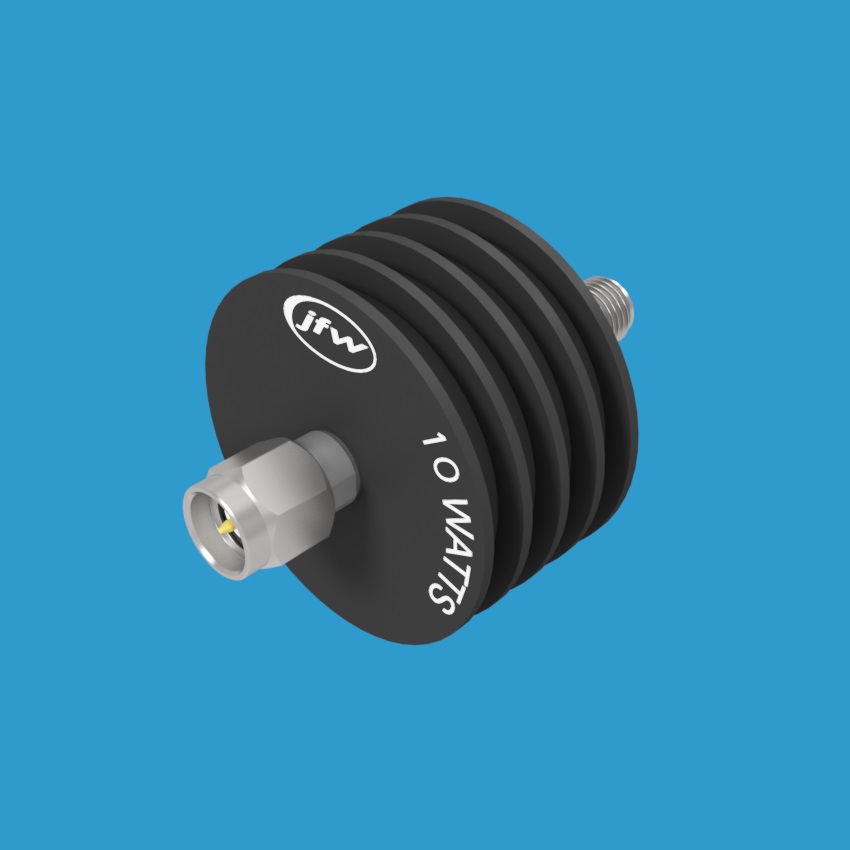

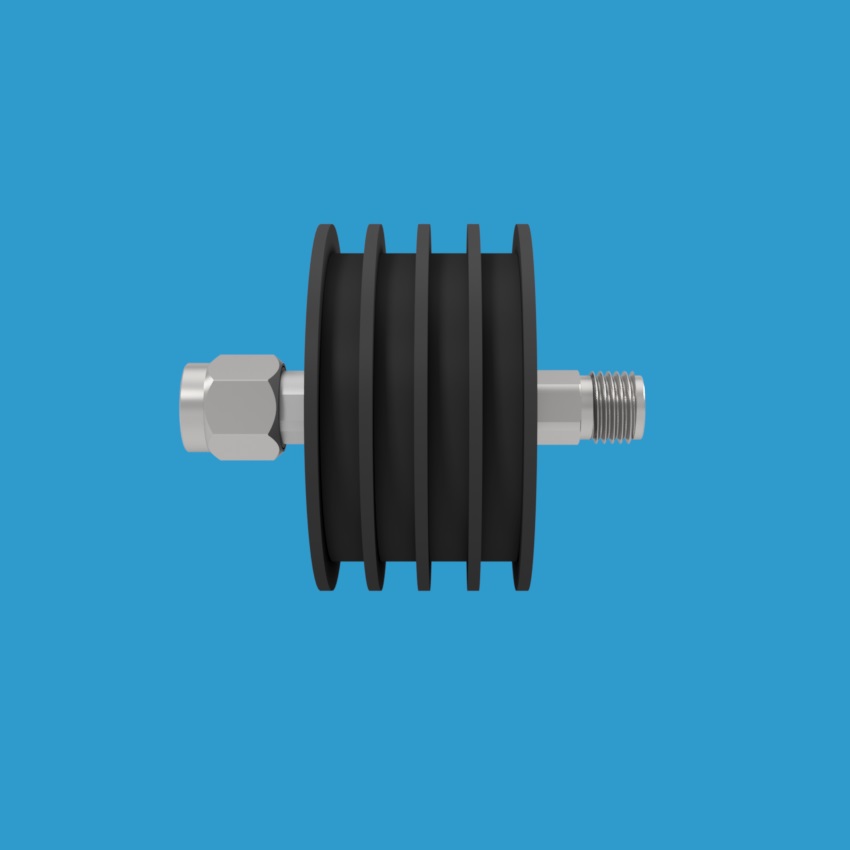

Fixed Attenuator 10 Watts DC-40GHz 2.92mm male/female
Fixed Attenuator 10 Watts DC-40GHz 2.92mm male/female

10 Watt Fixed Attenuator DC-40 GHz | 50HFFB-XXX-10/40

JFW Model #: 50HFFB-XXX-10/40
Impedance: 50 Ohm
Frequency Range: DC-40 GHz
RF Input Power: 10 Watts
Attenuation Values: 1-10, 20, 30 dB
Heatsink Style: Round
RF Connectors: 2.92 mm

Documentation:
Data Sheet
Drawing (2.92mm Male/Female)
Drawing (2.92mm Male/Male)

Clear
Categories: 50 Ohm Fixed Attenuators (5 to 50 Watts), Fixed Attenuators
  • Description
  • Additional information

Description

Model 50HFFB-xxx-10/40 is a 50 Ohm coaxial fixed attenuator rated at 10 Watts average input power and operates DC-40 GHz. This model is available with 2.92mm connectors.

For model 50HFFB-xxx-5/40, replace the XXX with the desired attenuation value and add the RF connector type at the end to create the full model number.

Example Model Numbers:

50HFFB-001-10/40 2.9MM (1dB with 2.9mm male/female)
50HFFB-002-10/40 2.9MM (2dB with 2.9mm male/female)
50HFFB-003-10/40 2.9MM (3dB with 2.9mm male/female)
50HFFB-004-10/40 2.9MM (4dB with 2.9mm male/female)
50HFFB-005-10/40 2.9MM (5dB with 2.9mm male/female)
50HFFB-006-10/40 2.9MM (6dB with 2.9mm male/female)
50HFFB-007-10/40 2.9MM (7dB with 2.9mm male/female)
50HFFB-008-10/40 2.9MM (8dB with 2.9mm male/female)
50HFFB-009-10/40 2.9MM (9dB with 2.9mm male/female)
50HFFB-010-10/40 2.9MM (10dB with 2.9mm male/female)
50HFFB-020-10/40 2.9MM (20dB with 2.9mm male/female)
50HFFB-030-10/40 2.9MM (30dB with 2.9mm male/female)

50HFFB-010-10/40 2.9MM M/M (10dB with 2.9mm male/male)
50HFFB-020-10/40 2.9MM M/M (20dB with 2.9mm male/male)
50HFFB-030-10/40 2.9MM M/M (30dB with 2.9mm male/male)

50HFFB-010-10/40 2.9MM F/F (10dB with 2.9mm female/female)
50HFFB-020-10/40 2.9MM F/F (20dB with 2.9mm female/female)
50HFFB-030-10/40 2.9MM F/F (30dB with 2.9mm female/female)

Additional information

Attenuation Value

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 20, 30

Connector Type

2.92mm Female/Female, 2.92mm Male/Female, 2.92mm Male/Male
