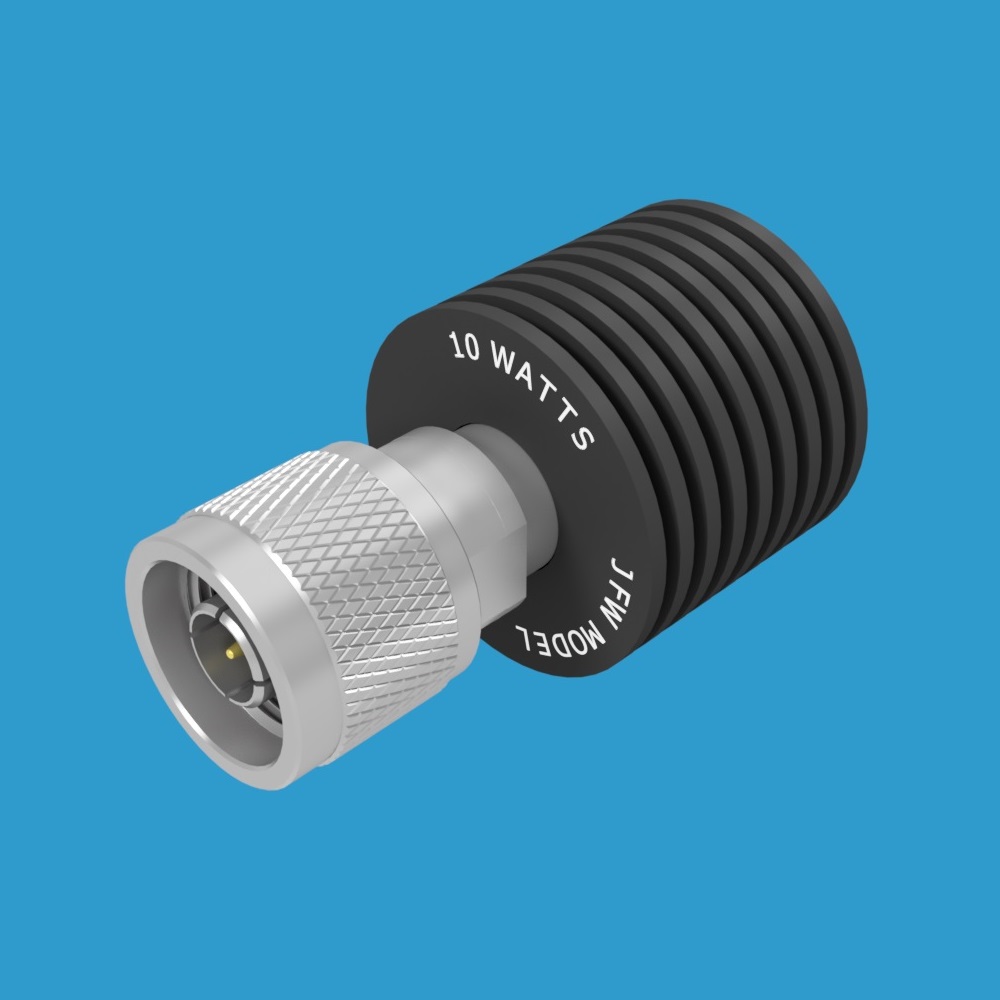

10 Watt Mismatch Load DC-6 GHz | 50T-704-XXX

10 Watt Mismatch Load DC-6 GHz | 50T-704-XXX

JFW Model #: 50T-704-XXX
Description: Mismatch Load
Impedance: 50 Ohm
Frequency Range: DC-6 GHz
RF Input Power: 10 Watts
RF Connectors: N or SMA
Documentation: Data Sheet | Drawing

Clear
Categories: 50 Ohm Terminations and Mismatch Loads (5 to 50 Watts), Terminations and Mismatch Loads
  • Description
  • Additional information

Description

Model 50T-704-XXX is a mismatch load referenced to 50 Ohm. It is available with either N or SMA (male or female). It operates DC-6 GHz and is rated for 10 Watts average input power.

1.5:1 mismatch = 75 Ohm load in a 50 Ohm system
2.0:1 mismatch = 100 Ohm load in a 50 Ohm system
2.5:1 mismatch = 125 Ohm load in a 50 Ohm system
3.0:1 mismatch = 150 Ohm load in a 50 Ohm system

Example model numbers:

50T-704-1.2 N M (1.2:1 mismatch, N male)
50T-704-1.3 N M (1.3:1 mismatch, N male)
50T-704-1.4 N M (1.4:1 mismatch, N male)
50T-704-1.5 N M (1.5:1 mismatch, N male)
50T-704-1.6 N M (1.6:1 mismatch, N male)
50T-704-1.7 N M (1.7:1 mismatch, N male)
50T-704-1.8 N M (1.8:1 mismatch, N male)
50T-704-1.9 N F (1.9:1 mismatch, N female)
50T-704-2.0 N F (2.0:1 mismatch, N female)
50T-704-2.1 N F (2.1:1 mismatch, N female)
50T-704-2.2 N F (2.2:1 mismatch, N female)
50T-704-2.3 SMA M (2.3:1 mismatch, SMA male)
50T-704-2.4 SMA M (2.4:1 mismatch, SMA male)
50T-704-2.5 SMA M (2.5:1 mismatch, SMA male)
50T-704-2.6 SMA M (2.6:1 mismatch, SMA male)
50T-704-2.7 SMA F (2.7:1 mismatch, SMA female)
50T-704-2.8 SMA F (2.8:1 mismatch, SMA female)
50T-704-2.9 SMA F (2.9:1 mismatch, SMA female)
50T-704-3.0 SMA F (3.0:1 mismatch, SMA female)

Additional information

Weight 0.18 lbs
Connector Type

N Female, N Male, SMA Female, SMA Male

VSWR

Mismatch 1.2:1, Mismatch 1.3:1, Mismatch 1.4:1, Mismatch 1.5:1, Mismatch 1.6:1, Mismatch 1.7:1, Mismatch 1.8:1, Mismatch 1.9:1, Mismatch 2.0:1, Mismatch 2.1:1, Mismatch 2.2:1, Mismatch 2.3:1, Mismatch 2.4:1, Mismatch 2.5:1, Mismatch 2.6:1, Mismatch 2.7:1, Mismatch 2.8:1, Mismatch 2.9:1, Mismatch 3.0:1
