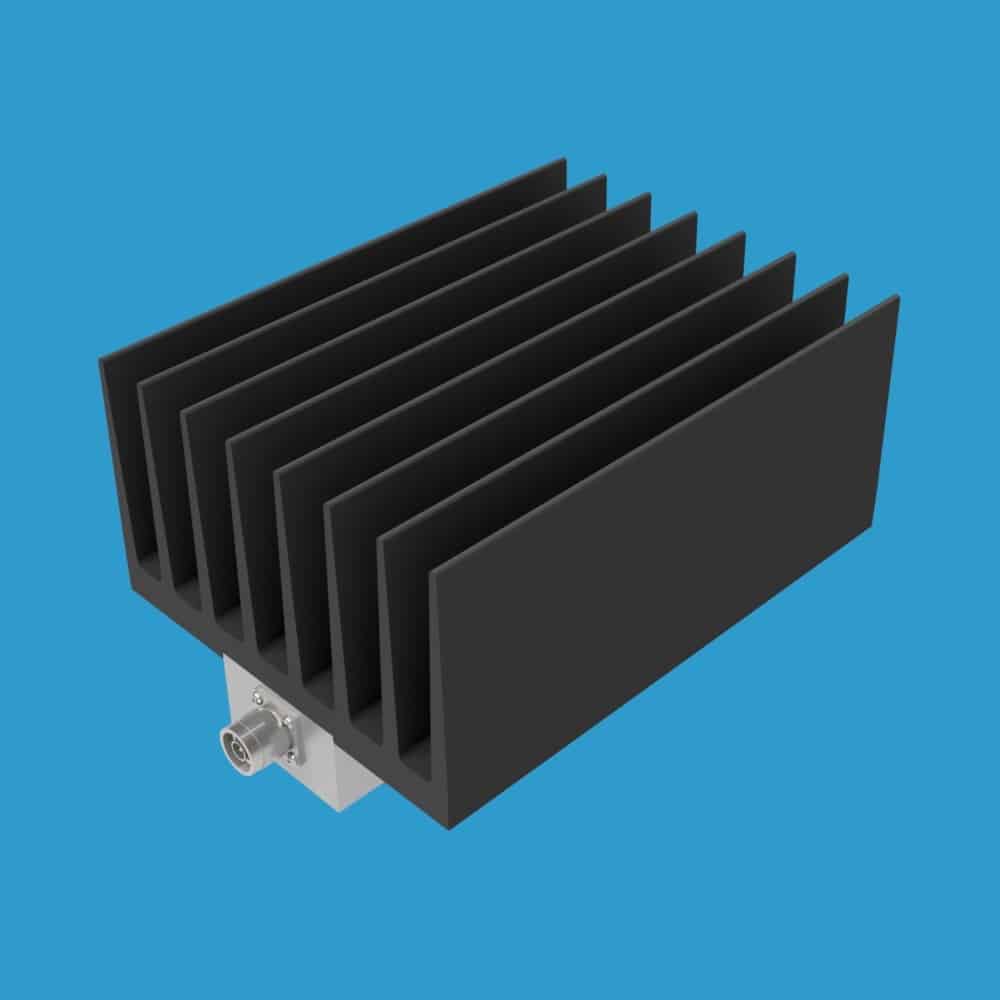

1000 Watt fixed attenuator | 50 Ohm

1000 Watt Fixed Attenuator DC-1GHz | 50FHPZ-XXX-1000

JFW Model #: 50FHPZ-003-1000
Impedance: 50 Ohm
Frequency Range: DC-1000 MHz
RF Input Power: 1000 Watts uni-directional
Attenuation Value: 3 dB
Heatsink Style: Square
RF Connectors: N
Documentation: Data Sheet | Drawing

If Connector Type is Other, please specify in REMARKS field of the Request a Quote form.

Clear
Categories: 50 Ohm Fixed Attenuators (75 to 1000 Watts), Fixed Attenuators
  • Description
  • Additional information

Description

50 Ohm coaxial fixed attenuator rated at 1000 Watts maximum RF input power that operates DC-1000 MHz.  Available with 3dB attenuation value.  The heatsink has mounting holes on the bottom plate.  This attenuator can be mounted in any position except with mounting plate up.

For model 50FHPZ-XXX-1000, replace the XXX with the desired attenuation value and add the RF connector type at the end to create the full model number.

Example Model Numbers:

50FHPZ-003-1000N   (3dB with N male/female)
50FHPZ-003-1000 7/16   (3dB with 7/16 male/female)

50FHPZ-003-1000N F/F   (3dB with N female/female)
50FHPZ-003-1000 7/16 F/F   (3dB with 7/16 female/female)

Additional information

Attenuation Value

3

Input Connector

N male, N female, 7/16 male, 7/16 female, Other

Output Connector

N male, N female, 7/16 male, 7/16 female, Other
