You are here: Home1 / Shop2 / Test Systems3 / Matrix Switches4 / 50MS-420 | 16×16 Non-Blocking Matrix Switch

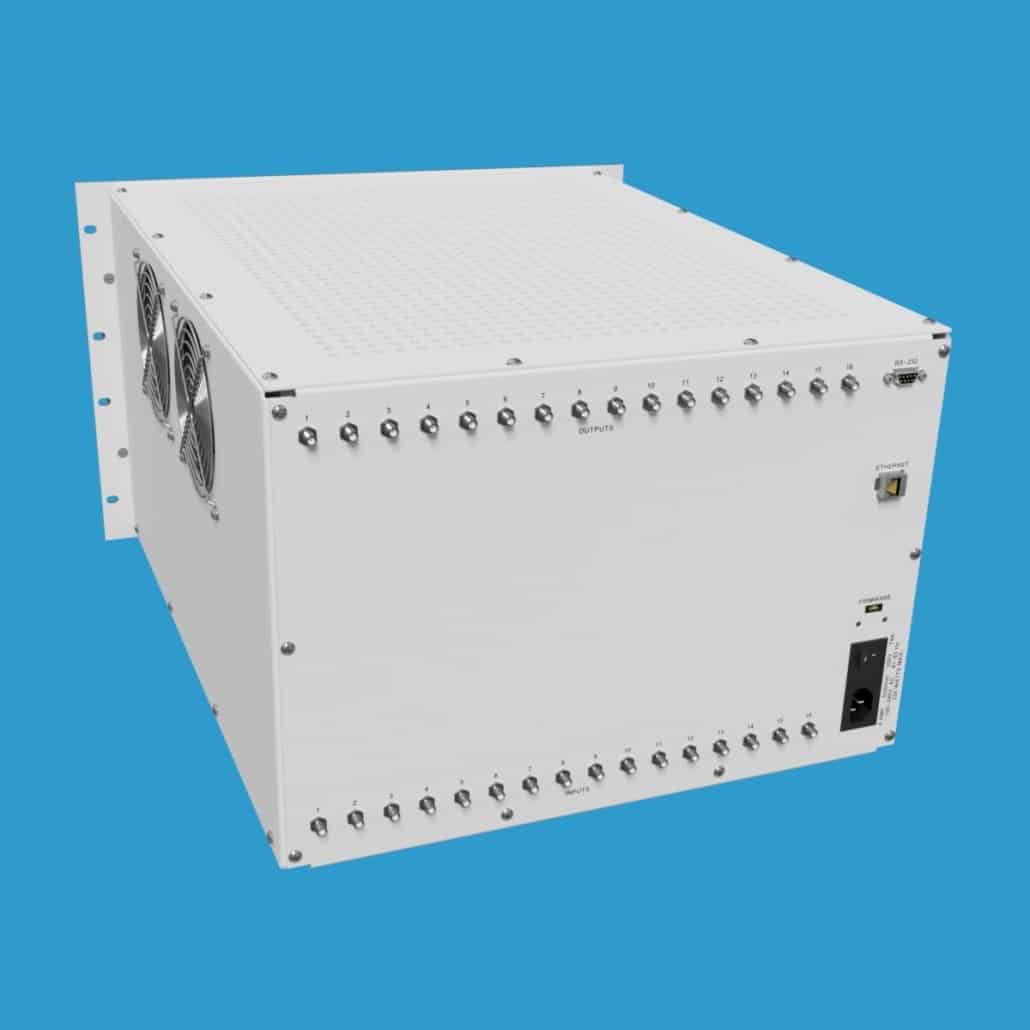

JFW model 50MS-335 SMA 50 Ohm 8x16 non-blocking matrix switch

50MS-420 | 16×16 Non-Blocking Matrix Switch

JFW Model #: 50MS-420
Impedance: 50 Ohm
Configuration: 16 x 16 Non-Blocking Matrix Switch
Frequency Range: 20-3000 MHz
Switch Type:
 Solid-state
Unused Ports: Absorptive
RF Input Power: +30 dBm
RF Connectors: N, SMA
Documentation: Data Sheet | Diagram | Drawing

Clear
Categories: Matrix Switches, Non-Blocking Matrix Switches, Test Systems
  • Description
  • Additional information

Description

Model 50MS-420 is an 16X16 non-blocking matrix switch operating 20-3000MHz.  Each input port can be connected to multiple output ports simultaneously.  Each output port can be connected to only one input port.  A 16X16 non-blocking matrix can only have a maximum of 16 active paths.  All unused ports are absorptive (i.e. self-terminating into 50 Ohm).  It is available with 50 Ohm N or SMA female connectors.  We label the ports as IN and OUT as a naming convention only.  All ports operate bi-directionally.

Remote Control
The matrix switch can be remotely controlled via an Ethernet connection or a serial connection (i.e. RS-232).  The network settings can be changed manually with the keypad or remotely using the NET remote command.  The network interface can be set to either DHCP mode or Fixed Address mode.  All new test systems are shipped from the factory in DHCP mode.  A RS-232 connection to the test system is made using a null modem type serial cable.  Baud rates up to 155200 baud are available.  The baud rate can be changed manually with the keypad or remotely with the SERIAL remote command.

Additional information

Connector Type

N Female, SMA Female
