You are here: Home1 / Shop2 / RF Switches3 / 50 Ohm Solid-State RF Switches (Absorptive)4 / 1P2T RF Switch 20-8400 MHz | 50S-2143
1P2T RF Switch 20-8000 MHz | 50S-2143

1P2T RF Switch 20-8400 MHz | 50S-2143

JFW Model #: 50S-2143
Impedance: 50 Ohm
Configuration: 1P2T Solid-state RF switch
Type: Absorptive (i.e. Self-Terminating)
Frequency Range: 20-8400 MHz
Switching Speed: 10 uS
RF Connectors: SMA female
Control Logic: TTL
Documentation: Data Sheet | Drawing

Categories: 50 Ohm Solid-State RF Switches (Absorptive), RF Switches
  • Description
  • Additional information

Description

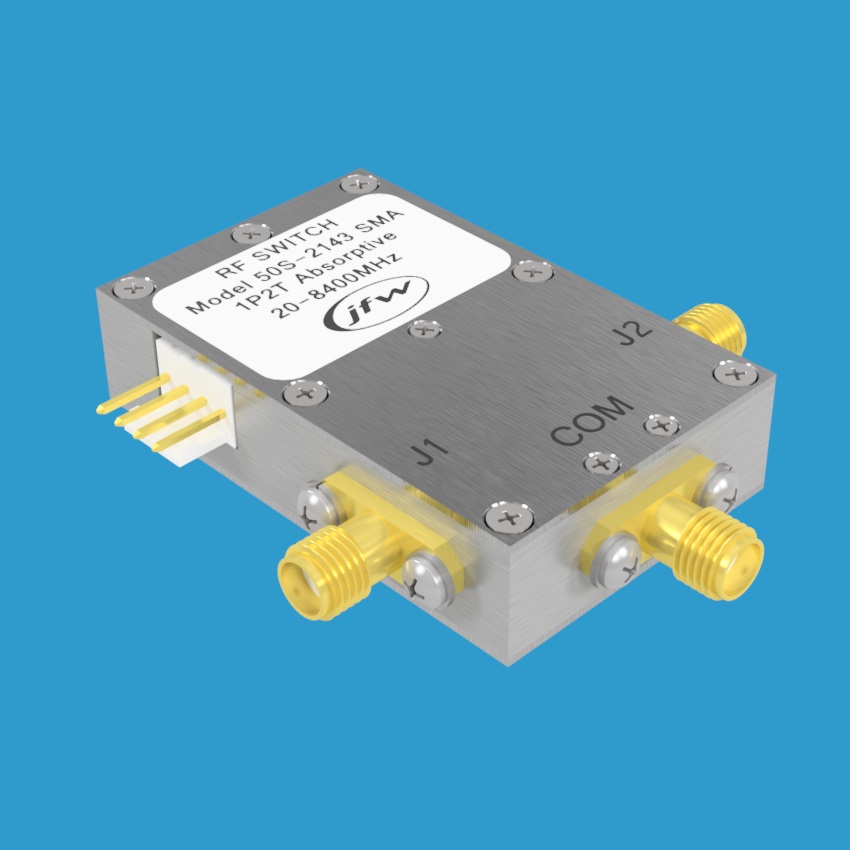

Model 50S-2143 is a solid-state 1P2T RF switch operating 20-8400 MHz. It is rated for +26dBm input power. The unused port will self-terminate at 50 Ohm. For example: path COM-to-J1 is active, then port J2 will self-terminate at 50 Ohm. It is available with 50 Ohm SMA female RF connectors. This RF switch is controlled via a TTL control line. TTL low to activate path COM-to-J1. TTL high to activate path COM-to-J2.

Additional information

Connector Type

SMA Female

Related products

  • 1P2T high power 50 Ohm solid-state RF switch with SMA female

    1P2T RF Switch 20-1000 MHz | 50S-1559

    Read more
  • 1P2T solid-state RF switch with N female

    1P2T RF Switch 10-1000 MHz 30 Watts | 50S-1463

    Read more
  • Absorptive 1P4T solid-state RF switch with SMA female

    1P4T RF Switch 20-100 MHz 20 Watt | 50S-2040

    Read more Show Details
  • 1P2T solid-state RF switch with SMA female

    1P2T RF Switch 800-2200 MHz 15 Watt | 50S-1873

    Read more Show Details
