Power Divider/Combiner Assembly

2-Way Power Divider/Combiner | 0.35-6 GHz | 50PDA-270-XX

JFW Model #: 50PDA-270-XX
Impedance: 50 Ohm
Configuration: 2-Way Divider/Combiner
Number of 2-Way:  up to sixteen 2-Way
Rack Mounting Type:  19 in rack mount
Frequency Range: 350-6000 MHz
RF Connectors: SMA female
Documentation:
Data Sheet

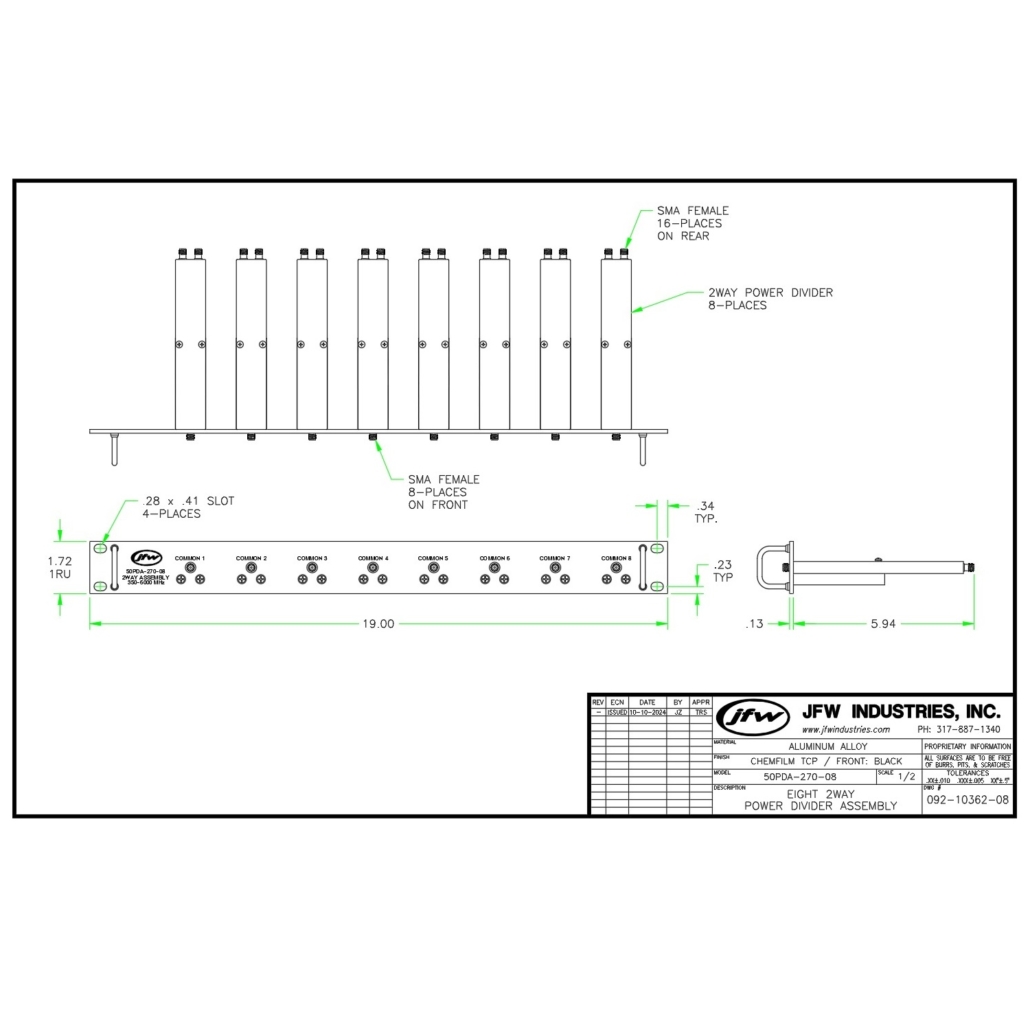

Drawing (50PDA-270-08)
Drawing (50PDA-270-16)

Clear
Categories: Power Divider/Combiner Assemblies, Reactive & Resistive Power Divider/Combiner
  • Description
  • Additional information

Description

Model 50PDA-270-XX SMA is a power divider assembly that is available with different number of 2-Way dividers.  You can select from 1 to 16 for the quantity of 2-Way’s in the assembly.

Example model numbers:

50PDA-270-01 SMA (one 2-Way)
50PDA-270-02 SMA (two 2-Way)
50PDA-270-03 SMA (three 2-Way)
50PDA-270-04 SMA (four 2-Way)
50PDA-270-05 SMA (five 2-Way)
50PDA-270-06 SMA (six 2-Way)
50PDA-270-07 SMA (seven 2-Way)
50PDA-270-08 SMA (eight 2-Way)
50PDA-270-09SMA (nine 2-Way)
50PDA-270-10 SMA (ten 2-Way)
50PDA-270-11 SMA (eleven 2-Way)
50PDA-270-12 SMA (twelve 2-Way)
50PDA-270-13 SMA (thirteen 2-Way)
50PDA-270-14 SMA (fourteen 2-Way)
50PDA-270-15 SMA (fifteen 2-Way)
50PDA-270-16 SMA (sixteen 2-Way)

Additional information

Number of 2Way

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16
