You are here: Home1 / Shop2 / Reactive & Resistive Power Divider/Combiner3 / 50 Ohm Reactive Divider/Combiner (Low Power)4 / 2-Way Power Divider/Combiner 1-8 GHz | 50PD-882 SMA

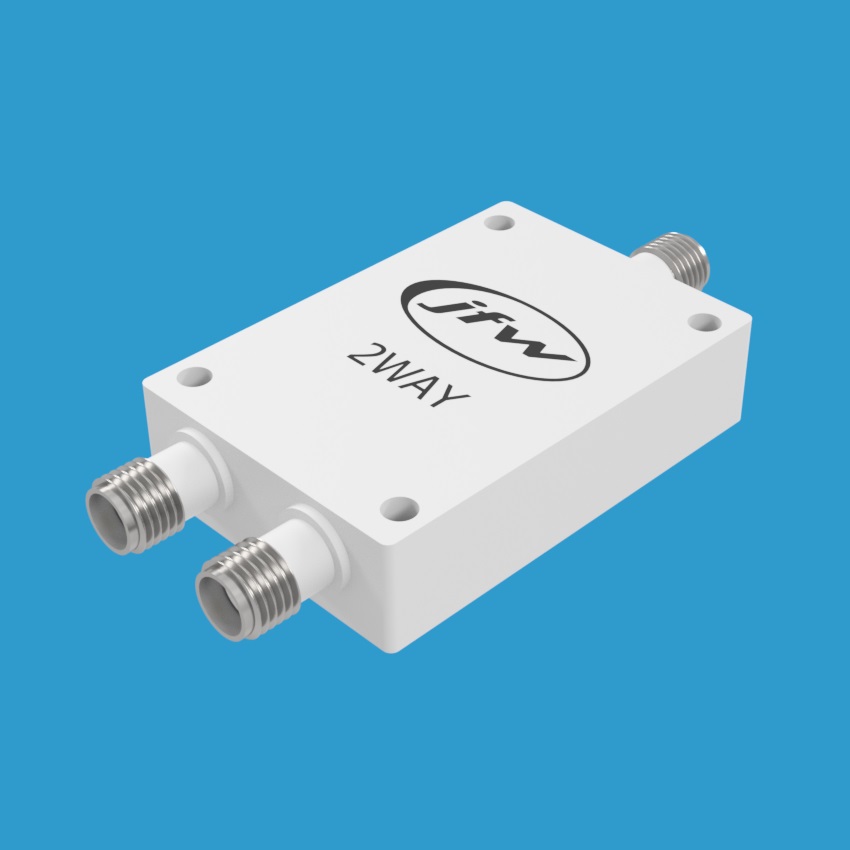

JFW model 50PD-882 SMA power divider combiner 2way Wilkinson type

2-Way Power Divider/Combiner 1-8 GHz | 50PD-882 SMA

JFW Model #: 50PD-882
Impedance: 50 Ohm
Configuration: 2-Way power divider/combiner
Frequency Range: 1-8 GHz
RF Input Power: 5 Watts
RF Connectors: SMA female
Documentation: Data Sheet | Drawing

Categories: 50 Ohm Reactive Divider/Combiner (Low Power), Reactive & Resistive Power Divider/Combiner
  • Description
  • Additional information

Description

Model 50PD-882 SMA is a 50 Ohm reactive 2-Way power divider/combiner that operates 1000-8000 MHz.  It uses a reactive Wilkinson splitter design which is ideal when the application is to fan-in or fan-out RF signals with minimum loss.  It is available with SMA female connectors.  It has one divider port and two combiner ports.  Any signal from divider port to combiner port will have insertion loss (i.e. 3 dB nominal loss).  Any RF signal from combiner port to combiner port will have isolation (i.e. 20 dB nominal loss).

Additional information

Weight 0.56 lbs
Connector Type

SMA Female
