You are here: Home1 / Shop2 / Reactive & Resistive Power Divider/Combiner3 / 50 Ohm Reactive Divider/Combiner (Low Power)4 / 3-Way Power Divider/Combiner 0.8-2.4 GHz | 50PD-615 SMA

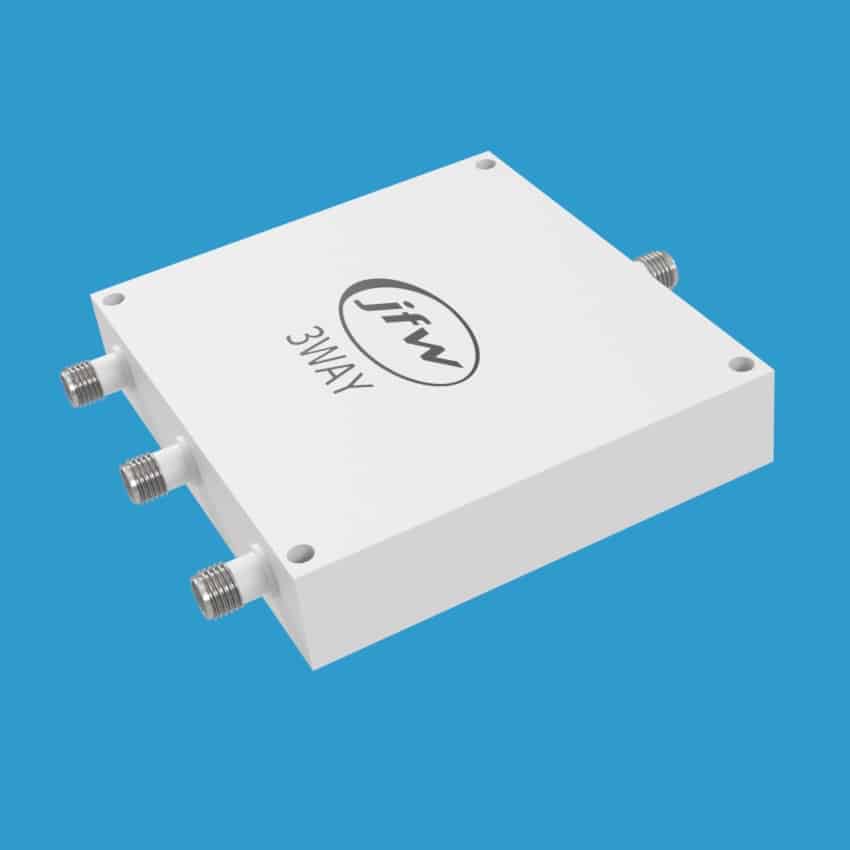

3-Way Power Divider/Combiner 0.8-2.4 GHz | 50PD-615 SMA

3-Way Power Divider/Combiner 0.8-2.4 GHz | 50PD-615 SMA

JFW Model #: 50PD-615
Impedance: 50 Ohm
Configuration: 3-Way power divider/combiner
Frequency Range: 800-2400 MHz
RF Input Power: 5 Watts
RF Connectors: SMA female
Documentation: Data Sheet | Drawing

Categories: 50 Ohm Reactive Divider/Combiner (Low Power), Reactive & Resistive Power Divider/Combiner
  • Description
  • Additional information

Description

Model 50PD-615 SMA is a 50 Ohm reactive 3-Way power divider/combiner that operates 800-2400 MHz. It uses a reactive Wilkinson splitter design which is ideal when the application is to fan-in or fan-out RF signals with minimum loss. It has one divider port and three combiner ports. Any signal from divider port to combiner port will have insertion loss (i.e. 4.8 dB nominal loss). Any RF signal from a combiner port to another combiner port will have isolation (i.e. 18 dB nominal loss).

Additional information

Weight 0.56 lbs
Connector Type

SMA Female
