You are here: Home1 / Shop2 / Reactive & Resistive Power Divider/Combiner3 / 50 Ohm Reactive Divider/Combiner (Low Power)4 / 3-Way Power Divider/Combiner 2-8 GHz | 50PD-936 SMA

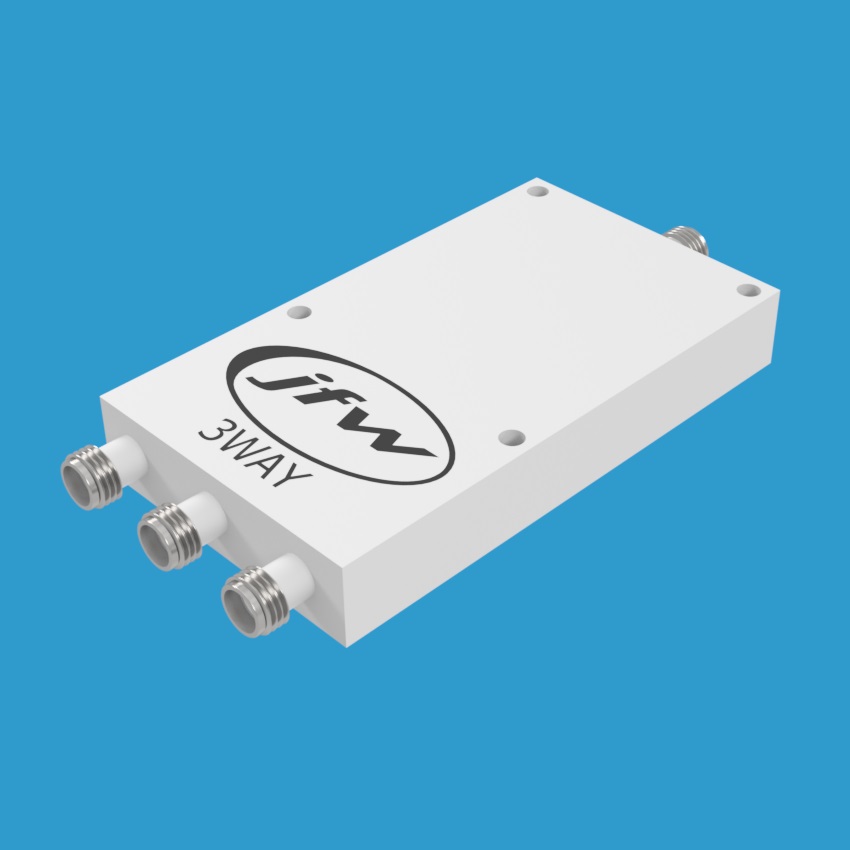

3-Way Power Divider/Combiner 2-8 GHz | 50PD-936 SMA

3-Way Power Divider/Combiner 2-8 GHz | 50PD-936 SMA

JFW Model #: 50PD-936
Impedance: 50 Ohm
Configuration: 3-Way power divider/combiner
Frequency Range: 2000-8000 MHz
RF Input Power: 5 Watts
RF Connectors: SMA female
Documentation: Data Sheet | Drawing

Categories: 50 Ohm Reactive Divider/Combiner (Low Power), Reactive & Resistive Power Divider/Combiner
  • Description
  • Additional information

Description

Model 50PD-936 SMA is a 50 Ohm reactive 3-Way power divider/combiner that operates 2-8 GHz. It uses a reactive Wilkinson splitter design which is ideal when the application is to fan-in or fan-out RF signals with minimum loss. It has one divider port and three combiner ports. Any signal from divider port to combiner port will have insertion loss (i.e. 4.8 dB nominal loss). Any RF signal from a combiner port to another combiner port will have isolation (i.e. 18 dB nominal loss).
