You are here: Home1 / Shop2 / Fixed Attenuators3 / 50 Ohm Fixed Attenuators (75 to 1000 Watts)4 / 300 Watt Fixed Attenuator DC-1 GHz | 50FHDQ-XXX-300

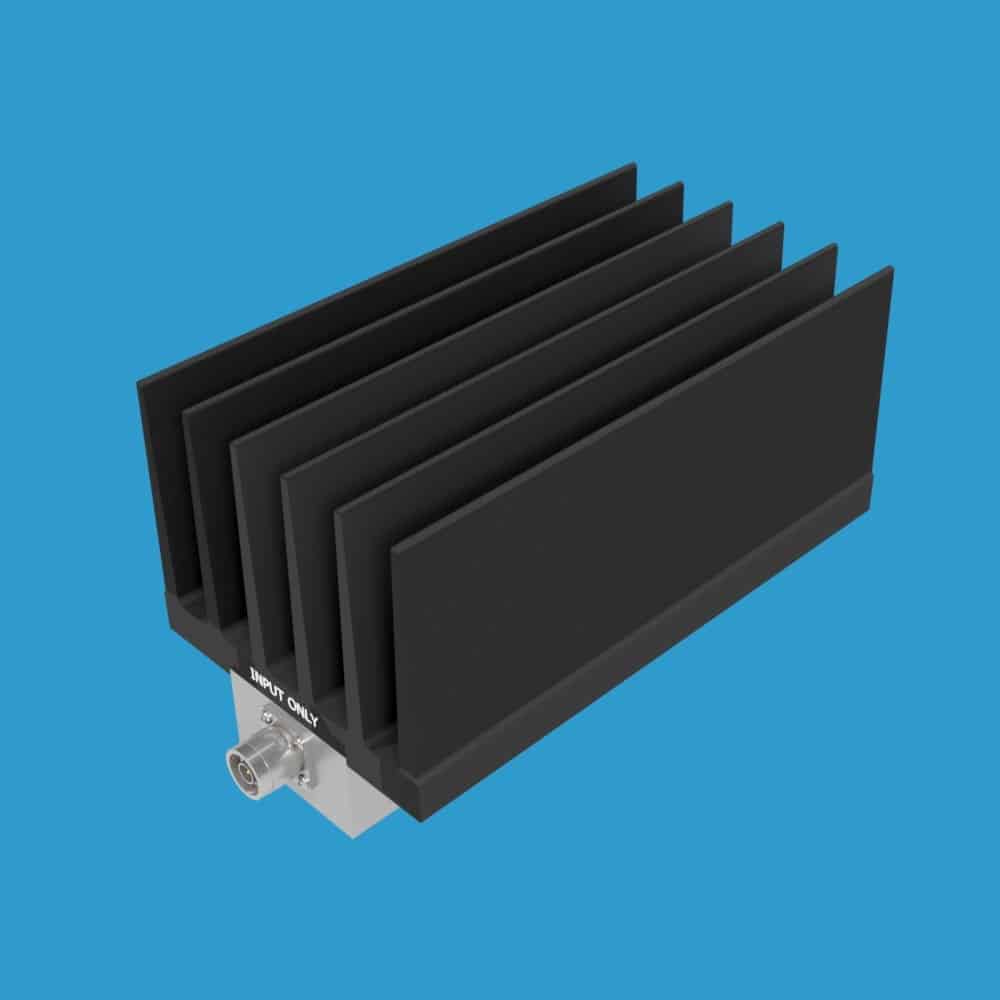

300 Watt Fixed Attenuator DC-1 GHz | 50FHDQ-XXX-300

300 Watt Fixed Attenuator DC-1 GHz | 50FHDQ-XXX-300

JFW Model #: 50FHDQ-XXX-300
Impedance: 50 Ohm
Frequency Range: DC-1 GHz
RF Input Power: 300 Watts uni-directional
Attenuation Values: 3-40 dB
Heatsink Style: Square
RF Connectors: N, TNC or 7/16
Documentation: Data Sheet | Drawing

If Connector Type is Other, please specify in REMARKS field of the Request a Quote form.

Clear
Categories: 50 Ohm Fixed Attenuators (75 to 1000 Watts), Fixed Attenuators
  • Description
  • Additional information

Description

This model is a 50 Ohm coaxial fixed attenuator rated at 300 Watts maximum and operates DC-1000 MHz. Available with dB values from 3dB to 40dB. The heatsink has mounting holes on the bottom plate. This attenuator can be mounted in any position except with mounting plate up.
For model 50FHDQ-XXX-300, replace the XXX with the desired attenuation value and add the RF connector type at the end to create the full model number.

Example Model Numbers:

50FHDQ-003-300 N (3dB with N male/female)
50FHDQ-004-300 N (4dB with N male/female)
50FHDQ-005-300 N (5dB with N male/female)
50FHDQ-006-300 N (6dB with N male/female)
50FHDQ-007-300 N (7dB with N male/female)
50FHDQ-008-300 N (8dB with N male/female)
50FHDQ-009-300 N (9dB with N male/female)
50FHDQ-010-300 N (10dB with N male/female)
50FHDQ-011-300 N (11dB with N male/female)
50FHDQ-012-300 N (12dB with N male/female)
50FHDQ-013-300 N (13dB with N male/female)
50FHDQ-014-300 N (14dB with N male/female)

50FHDQ-015-300 TNC (15dB with TNC male/female)
50FHDQ-016-300 TNC (16dB with TNC male/female)
50FHDQ-017-300 TNC (17dB with TNC male/female)
50FHDQ-018-300 TNC (18dB with TNC male/female)
50FHDQ-019-300 TNC (19dB with TNC male/female)
50FHDQ-020-300 TNC (20dB with TNC male/female)
50FHDQ-021-300 TNC (21dB with TNC male/female)
50FHDQ-022-300 TNC (22dB with TNC male/female)
50FHDQ-023-300 TNC (23dB with TNC male/female)
50FHDQ-024-300 TNC (24dB with TNC male/female)
50FHDQ-025-300 TNC (25dB with TNC male/female)
50FHDQ-026-300 TNC (26dB with TNC male/female)

50FHDQ-027-300 7/16 (27dB with 7/16 male/female)
50FHDQ-028-300 7/16 (28dB with 7/16 male/female)
50FHDQ-029-300 7/16 (29dB with 7/16 male/female)
50FHDQ-030-300 7/16 (30dB with 7/16 male/female)
50FHDQ-031-300 7/16 (31dB with 7/16 male/female)
50FHDQ-032-300 7/16 (32dB with 7/16 male/female)
50FHDQ-033-300 7/16 (33dB with 7/16 male/female)
50FHDQ-034-300 7/16 (34dB with 7/16 male/female)
50FHDQ-035-300 7/16 (35dB with 7/16 male/female)
50FHDQ-036-300 7/16 (36dB with 7/16 male/female)
50FHDQ-037-300 7/16 (37dB with 7/16 male/female)
50FHDQ-038-300 7/16 (38dB with 7/16 male/female)
50FHDQ-039-300 7/16 (39dB with 7/16 male/female)
50FHDQ-040-300 7/16 (40dB with 7/16 male/female)

Non-standard and mixed RF connector configurations are available upon request:

50FHDQ-003-300 N F/F (N female/female)
50FHDQ-020-300 7/16 F/F (7/16 female/female)
50FHDQ-010-300 N M/TNC F (N male/TNC female)
50FHDQ-020-300 7/16 M/N F (7/16 male/N female)

Additional information

Attenuation Value

3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40

Input Connector

N male, N female, TNC male, TNC female, 7/16 male, 7/16 female, Other

Output Connector

N male, N female, TNC male, TNC female, 7/16 male, 7/16 female, Other

Related products

  • JFW model 50FH-XXX-30 fixed attenuator 30 Watt with 50 Ohm N male/female

    30 Watt Fixed Attenuator DC-2GHz | 50FH-XXX-30

    Read more
  • 50FFP-XXX-N dc passing fixed attenuator 50 Ohm 4 Amps

    DC Passing Attenuator 400-2500MHz | 50FFP-XXX

    Read more
  • JFW model 50FH-XXX-10 fixed attenuator 10 Watt with 50 Ohm N male/female

    10 Watt Fixed Attenuator DC-2GHz | 50FH-xxx-10

    Read more
  • Model 50FP-XXX-H2 N fixed attenuator 50 Ohm 2 Watts N male/female

    2 Watt Fixed Attenuator DC-2GHz | 50FP-XXX-H2

    Read more
