You are here: Home1 / Shop2 / Terminations and Mismatch Loads3 / 50 Ohm Terminations and Mismatch Loads (75 to 1000 Watts)4 / 300 Watt Mismatch Load DC-1 GHz | 50T-684-XXX

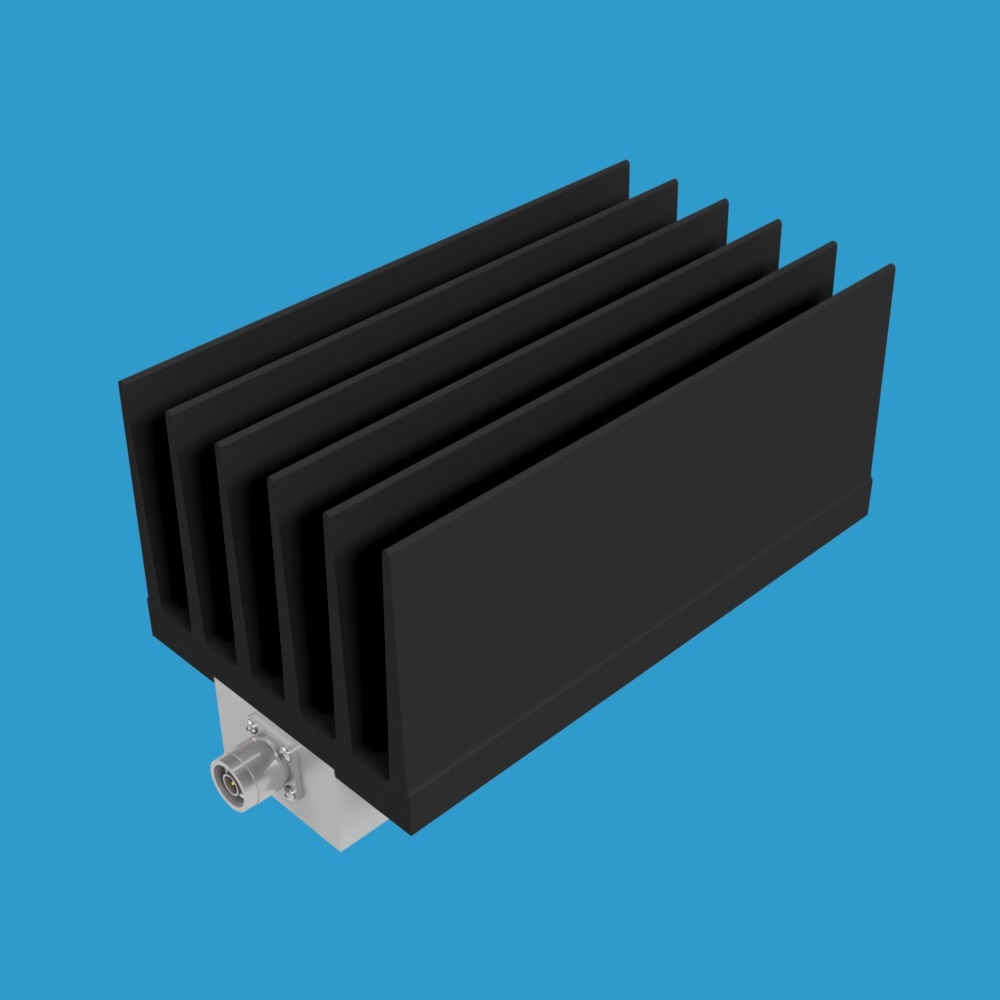

300 Watt Mismatch Load DC-1 GHz | 50T-684-XXX

300 Watt Mismatch Load DC-1 GHz | 50T-684-XXX

JFW Model #: 50T-684-XXX
Impedance: 50 Ohm
Frequency Range: DC-1 GHz
RF Input Power: 300 Watts
Heatsink Style: Square
RF Connectors: N, TNC, 7/16 or 4.3/10
Documentation: Data Sheet | Drawing

Clear
Categories: 50 Ohm Terminations and Mismatch Loads (75 to 1000 Watts), Terminations and Mismatch Loads
  • Description
  • Additional information

Description

Model 50T-684-XXX is a mismatch load referenced to 50 Ohm.  It operates DC-1 GHz and is rated for 300 Watts average RF input power.  It is available with N, TNC, or 7/16 as the RF connector.  It has threaded mounting holes on the bottom side of the heatsink.

2.0:1 mismatch = 100 Ohm load in a 50 Ohm system
3.0:1 mismatch = 150 Ohm load in a 50 Ohm system
3.5:1 mismatch = 175 Ohm load in a 50 Ohm system
4.0:1 mismatch = 200 Ohm load in a 50 Ohm system

For model 50T-684-XXX, replace the XXX with the desired VSWR mismatch value and add the RF connector type at the end to create the full model number.  Specify male (M) or female (F) for the RF connector.

Example Model Numbers:

50T-684-2.0 N M  (2.0:1 mismatch)
50T-684-2.1 N M  (2.1:1 mismatch)
50T-684-2.2 N M  (2.2:1 mismatch)
50T-684-2.3 N M  (2.3:1 mismatch)
50T-684-2.4 N F  (2.4:1 mismatch)
50T-684-2.5 N F  (2.5:1 mismatch)
50T-684-2.6 N F  (2.6:1 mismatch)
50T-684-2.7 N F  (2.7:1 mismatch)
50T-684-2.8 N F  (2.8:1 mismatch)
50T-684-2.9 TNC M  (2.9:1 mismatch)
50T-684-3.0 TNC M  (3.0:1 mismatch)
50T-684-3.1 TNC M  (3.1:1 mismatch)
50T-684-3.2 TNC F  (3.2:1 mismatch)
50T-684-3.3 TNC F  (3.3:1 mismatch)
50T-684-3.4 TNC F  (3.4:1 mismatch)
50T-684-3.5 7/16 M  (3.5:1 mismatch)
50T-684-3.6 7/16 M  (3.6:1 mismatch)
50T-684-3.7 7/16 M  (3.7:1 mismatch)
50T-684-3.8 7/16 F  (3.8:1 mismatch)
50T-684-3.9 7/16 F  (3.9:1 mismatch)
50T-684-4.0 7/16 F  (4.0:1 mismatch)

Additional information

Connector Type

7/16 Female, 7/16 Male, N Female, N Male, TNC Female, TNC Male

VSWR

Mismatch 1.3:1, Mismatch 1.4:1, Mismatch 1.5:1, Mismatch 1.6:1, Mismatch 1.7:1, Mismatch 1.8:1, Mismatch 1.9:1, Mismatch 2.0:1, Mismatch 2.1:1, Mismatch 2.2:1, Mismatch 2.3:1, Mismatch 2.4:1, Mismatch 2.5:1, Mismatch 2.6:1, Mismatch 2.7:1, Mismatch 2.8:1, Mismatch 2.9:1, Mismatch 3.0:1, Mismatch 3.1:1, Mismatch 3.2:1, Mismatch 3.3:1, Mismatch 3.4:1, Mismatch 3.5:1, Mismatch 3.6:1, Mismatch 3.7:1, Mismatch 3.8:1, Mismatch 3.9:1, Mismatch 4.0:1, Mismatch 4.1:1, Mismatch 4.2:1, Mismatch 4.3:1, Mismatch 4.4:1, Mismatch 4.5:1, Mismatch 4.6:1, Mismatch 4.7:1, Mismatch 4.8:1, Mismatch 4.9:1, Mismatch 5.0:1
