You are here: Home1 / Shop2 / Reactive & Resistive Power Divider/Combiner3 / 50 Ohm Reactive Divider/Combiner (Low Power)4 / 4-Way Power Divider/Combiner 18-40 GHz | 50PD-950 2.92mm

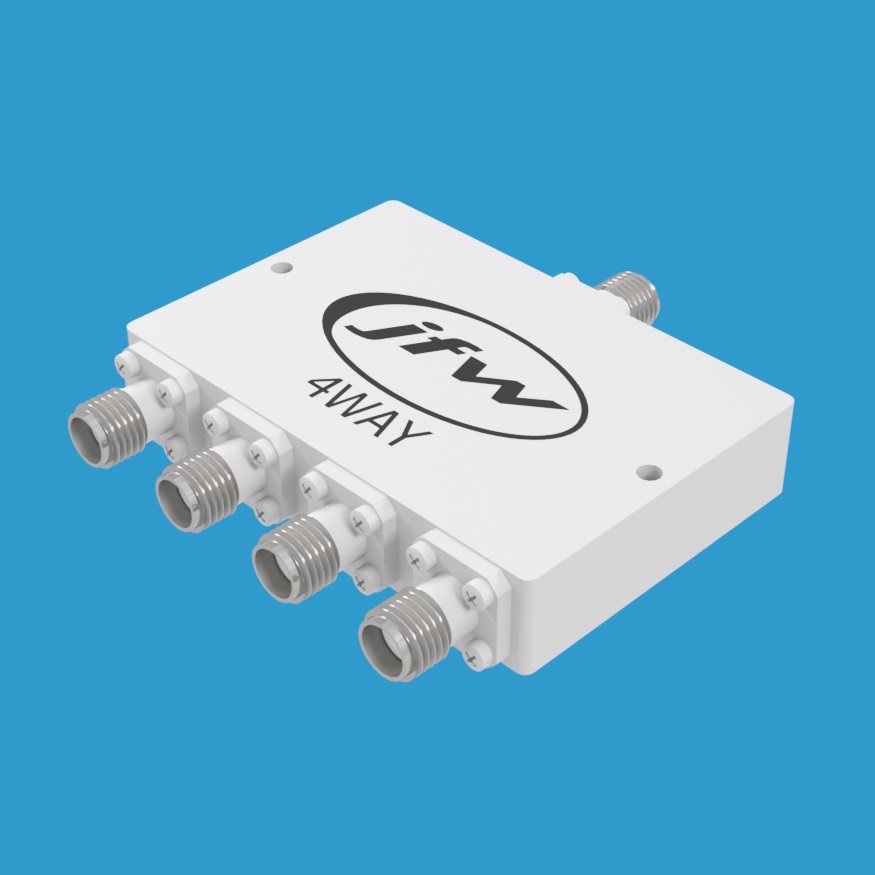

4Way | 2.92mm female | 18-40GHz

4-Way Power Divider/Combiner 18-40 GHz | 50PD-950 2.92mm

JFW Model #: 50PD-950
Impedance: 50 Ohm
Configuration: 4-Way power divider/combiner
Frequency Range: 18-40 GHz
RF Input Power: 10 Watts (divider port), 0.25 Watts (combiner port)
RF Connectors: 2.9mm female
Documentation: Data Sheet | Drawing

Categories: 50 Ohm Reactive Divider/Combiner (Low Power), Reactive & Resistive Power Divider/Combiner
  • Description
  • Additional information

Description

Model 50PD-950 2.9MM is a 50 Ohm reactive 4-Way power divider/combiner that operates 18-40 GHz. Its low loss reactive design is ideal for fan-in or fan-out of RF signals. It is only available with 2.92mm female coaxial RF connectors. It has one divider port and four combiner ports.

Additional information

Weight 0.56 lbs
Connector Type

SMA Female
