You are here: Home1 / Shop2 / Reactive & Resistive Power Divider/Combiner3 / 50 Ohm Reactive Divider/Combiner (Low Power)4 / 4-Way Power Divider/Combiner 2-26.5 GHz | 50PD-860 SMA

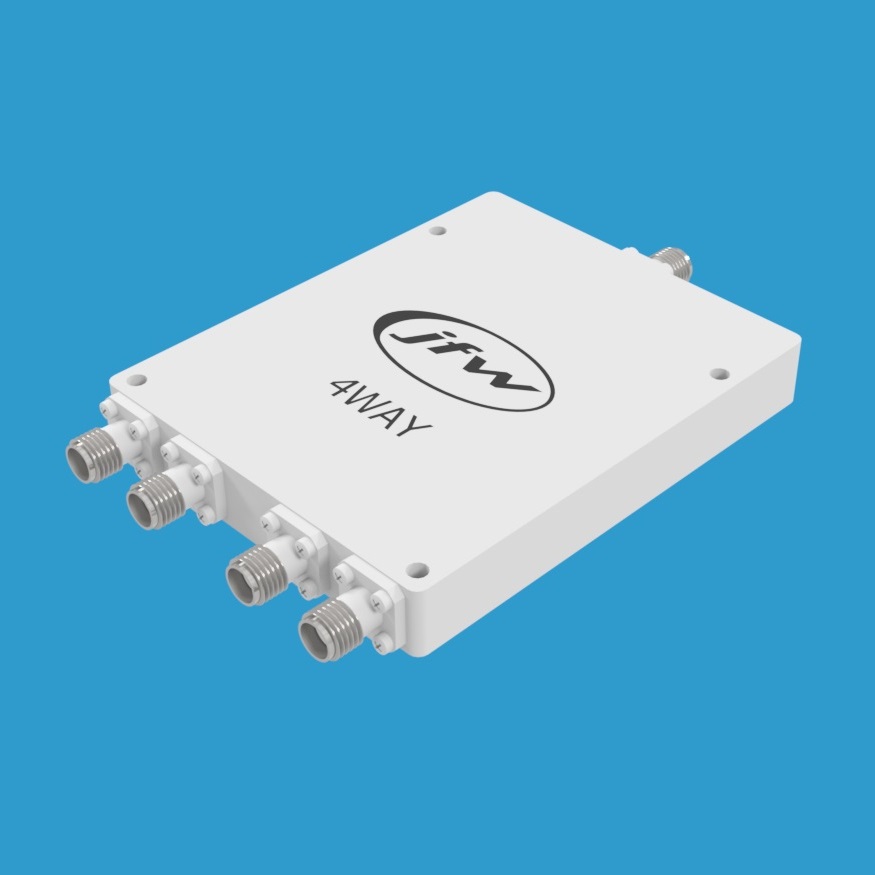

50 Ohm Wilkinson type 4-way reactive power divider combiner with SMA female

4-Way Power Divider/Combiner 2-26.5 GHz | 50PD-860 SMA

JFW Model #: 50PD-860
Impedance: 50 Ohm
Configuration: 4-Way power divider/combiner
Frequency Range: 2-26.5 GHz
RF Input Power: 10 Watts (divider port), 0.25 Watts (combiner port)
RF Connectors: SMA female
Documentation: Data Sheet | Drawing

Categories: 50 Ohm Reactive Divider/Combiner (Low Power), Reactive & Resistive Power Divider/Combiner
  • Description
  • Additional information

Description

Model 50PD-860 SMA is a 50 Ohm reactive 4-Way power divider/combiner that operates 2-26.5 GHz. Its low loss reactive design is ideal for fan-in or fan-out of RF signals. It is only available with SMA female coaxial RF connectors. It has one divider port and four combiner ports.

Additional information

Weight 0.56 lbs
Connector Type

SMA Female
