5 Watt Fixed Attenuator DC-8.4 GHz | 50HFFA-XXX-5/8

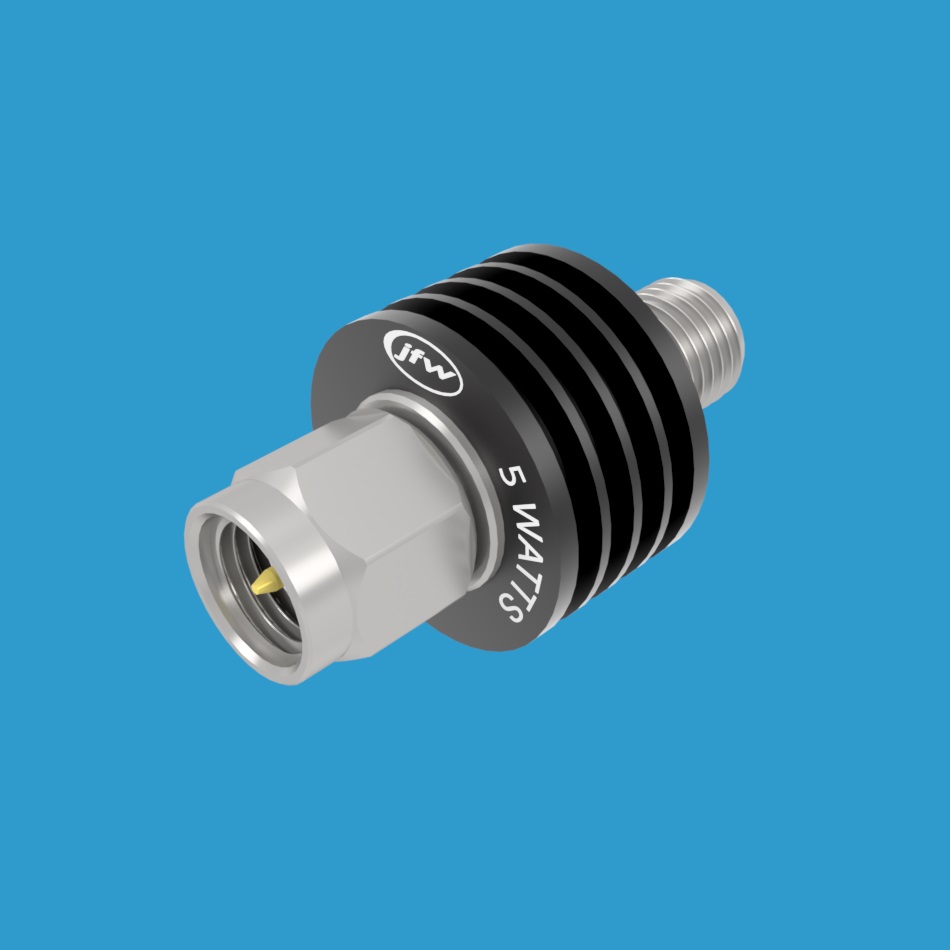

5 Watt Fixed Attenuator | SMA

5 Watt Fixed Attenuator DC-8.4 GHz | 50HFFA-XXX-5/8

JFW Model #: 50HFFA-XXX-5/8
Impedance: 50 Ohm
Frequency Range: DC-8.4 GHz
RF Input Power: 5 Watts
Attenuation Values: 1-30 dB
Heatsink Style: Round
RF Connectors: N or SMA

Data Sheet for SMA:
SMA data sheet
SMA outline drawing

Data Sheet for N:
N data sheet
N outline drawing

Clear
Categories: 50 Ohm Fixed Attenuators (5 to 50 Watts), Fixed Attenuators
  • Description
  • Additional information

Description

Model 50HFFA-xxx-5/8 is a 50 Ohm coaxial fixed attenuator rated at 5 Watts average input power and operates DC-8.4 GHz. This model is available with N or SMA connectors.

For model 50HFFA-xxx-5/8, replace the XXX with the desired attenuation value and add the RF connector type at the end to create the full model number.

Example Model Numbers:
50HFFA-001-5/8SMA (1dB with SMA male/female)
50HFFA-002-5/8SMA (2dB with SMA male/female)
50HFFA-003-5/8SMA (3dB with SMA male/female)
50HFFA-004-5/8SMA (4dB with SMA male/female)
50HFFA-005-5/8SMA (5dB with SMA male/female)

50HFFA-001-5/8N (1dB with N male/female)
50HFFA-002-5/8N (2dB with N male/female)
50HFFA-003-5/8N (3dB with N male/female)
50HFFA-004-5/8N (4dB with N male/female)
50HFFA-005-5/8N (5dB with N male/female)
50HFFA-006-5/8N (6dB with N male/female)
50HFFA-007-5/8N (7dB with N male/female)
50HFFA-008-5/8N (8dB with N male/female)
50HFFA-009-5/8N (9dB with N male/female)
50HFFA-010-5/8N (10dB with N male/female)
50HFFA-011-5/8N (11dB with N male/female)
50HFFA-012-5/8N (12dB with N male/female)
50HFFA-013-5/8N (13dB with N male/female)
50HFFA-014-5/8N (14dB with N male/female)
50HFFA-015-5/8N (15dB with N male/female)
50HFFA-016-5/8N (16dB with N male/female)
50HFFA-017-5/8N (17dB with N male/female)
50HFFA-018-5/8N (18dB with N male/female)
50HFFA-019-5/8N (19dB with N male/female)
50HFFA-020-5/8N (20dB with N male/female)
50HFFA-021-5/8N (21dB with N male/female)
50HFFA-022-5/8N (22dB with N male/female)
50HFFA-023-5/8N (23dB with N male/female)
50HFFA-024-5/8N (24dB with N male/female)
50HFFA-025-5/8N (25dB with N male/female)
50HFFA-026-5/8N (26dB with N male/female)
50HFFA-027-5/8N (27dB with N male/female)
50HFFA-028-5/8N (28dB with N male/female)
50HFFA-029-5/8N (29dB with N male/female)
50HFFA-030-5/8N (30dB with N male/female)

50HFFA-020-5/8N F/F (20dB with N female/female)
50HFFA-021-5/8N F/F (21dB with N female/female)
50HFFA-022-5/8N F/F (22dB with N female/female)
50HFFA-023-5/8N F/F (23dB with N female/female)
50HFFA-024-5/8N F/F (24dB with N female/female)
50HFFA-025-5/8N F/F (25dB with N female/female)
50HFFA-026-5/8N F/F (26dB with N female/female)
50HFFA-027-5/8N F/F (27dB with N female/female)
50HFFA-028-5/8N F/F (28dB with N female/female)
50HFFA-029-5/8N F/F (29dB with N female/female)
50HFFA-030-5/8N F/F (30dB with N female/female)

Additional information

Attenuation Value

0, 1, 2, 3, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30

Connector Type

N Female/Female, N Male/Female, SMA Male/Female
