5 Watt Termination DC-8 GHz | 50T-653

5 Watt Termination DC-8 GHz | 50T-653

JFW Model #: 50T-653
Impedance: 50 Ohm
Frequency Range: DC-8 GHz
RF Input Power: 5 Watts
Heatsink Style: Round
RF Connectors: N, SMA, TNC (male or female)
Documentation: Data Sheet | Drawing (N) | Drawing (SMA)

If Connector Type is Other, please specify in REMARKS field of the Request a Quote form.

Clear
Categories: 50 Ohm Terminations and Mismatch Loads (5 to 50 Watts), Terminations and Mismatch Loads
  • Description
  • Additional information

Description

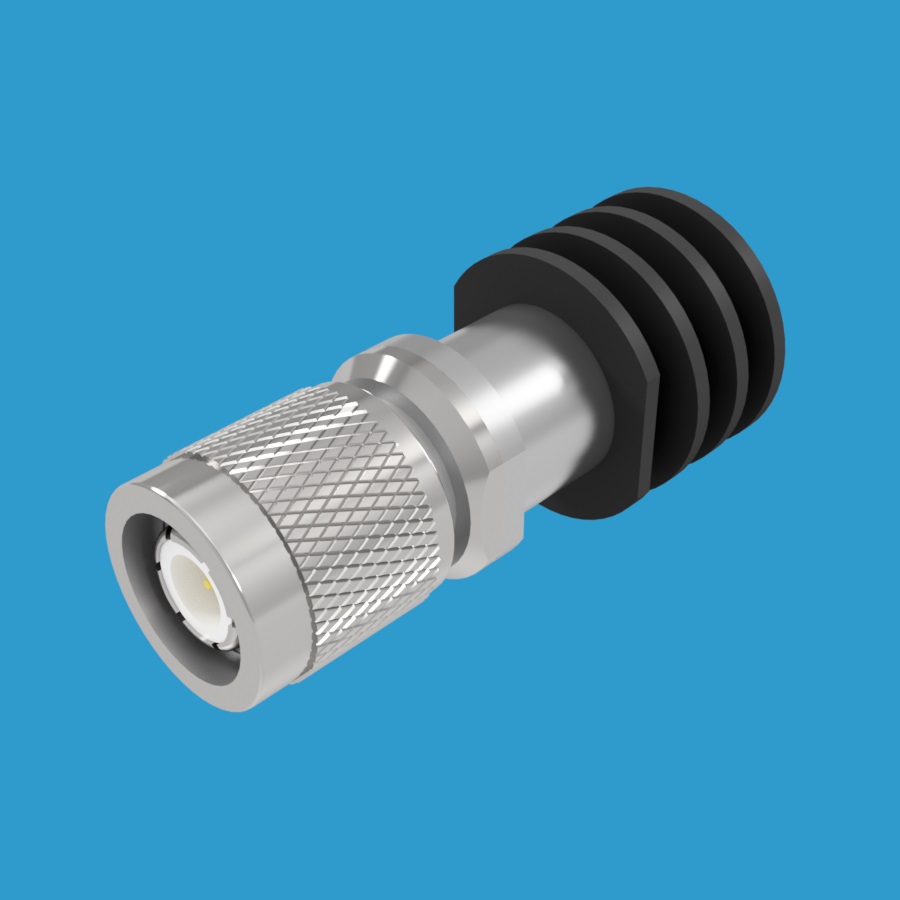

Model 50T-653 is a 50 Ohm RF termination. It operates DC-8 GHz and is rated for 5 Watts RF input power. It is available with N, SMA or TNC type RF connector (male or female).

Additional information

Weight 0.18 lbs
Connector Type

4.1/9.5 Female, 4.1/9.5 Male, 4.3/10 Female, 4.3/10 Male, N Female, N Male, Other, SMA Female, SMA Male, TNC Female, TNC Male
