Description

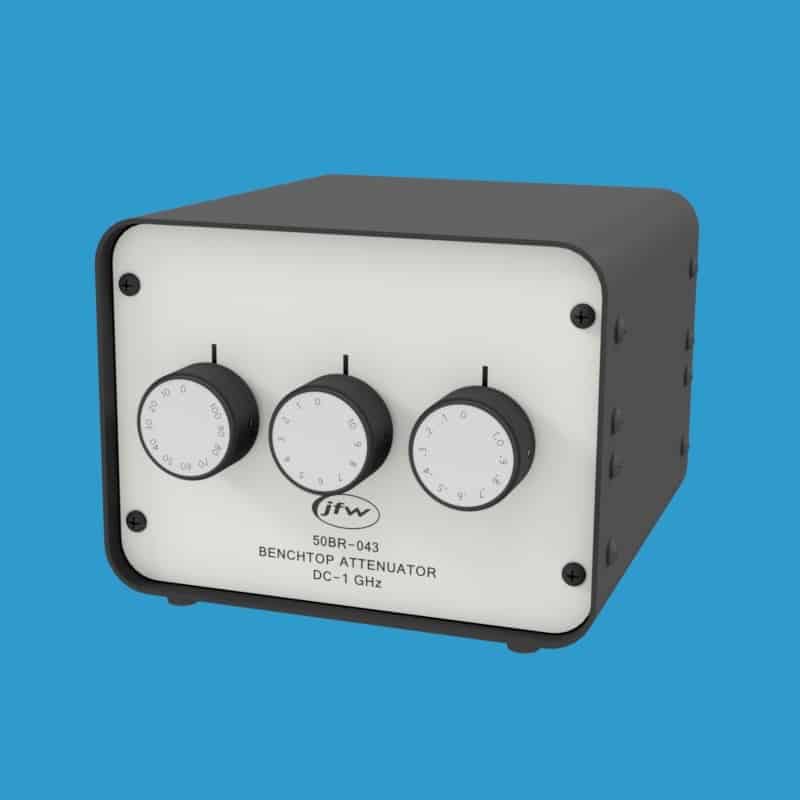

Model 50BR-043 is a 50 Ohm manual step attenuator in a benchtop enclosure. The attenuation range is 0 to 111dB by 0.1dB steps. It operates DC-1000 MHz and is rated for 2 Watts average of RF input power. There are three knobs on the front panel used to set the attenuation value (0.1dB step knob, 1dB step knob, 10dB step knob). It is available with 50 Ohm coaxial RF connectors: BNC, N, SMA or TNC female. The two RF connectors are located on the rear panel.
