Benchtop Manual Attenuator | 0-110dB x 1dB | DC-3.6GHz

50 Ohm Benchtop Attenuator DC-3.6 GHz 0-110dB x 1dB | 50BR-167

JFW Model #: 50BR-167
Type: Manually variable attenuator
Enclosure: Benchtop
Impedance: 50 Ohm
dB Total: 110 dB
dB Step: 1 dB
Frequency Range: DC-3600 MHz
RF Input Power: 2 Watts
RF Connectors: BNC, N, SMA, TNC
Documentation: Data Sheet | Drawing

Clear
Categories: Benchtop Manual Attenuators (Enclosure), Manually Variable Attenuators
  • Description
  • Additional information

Description

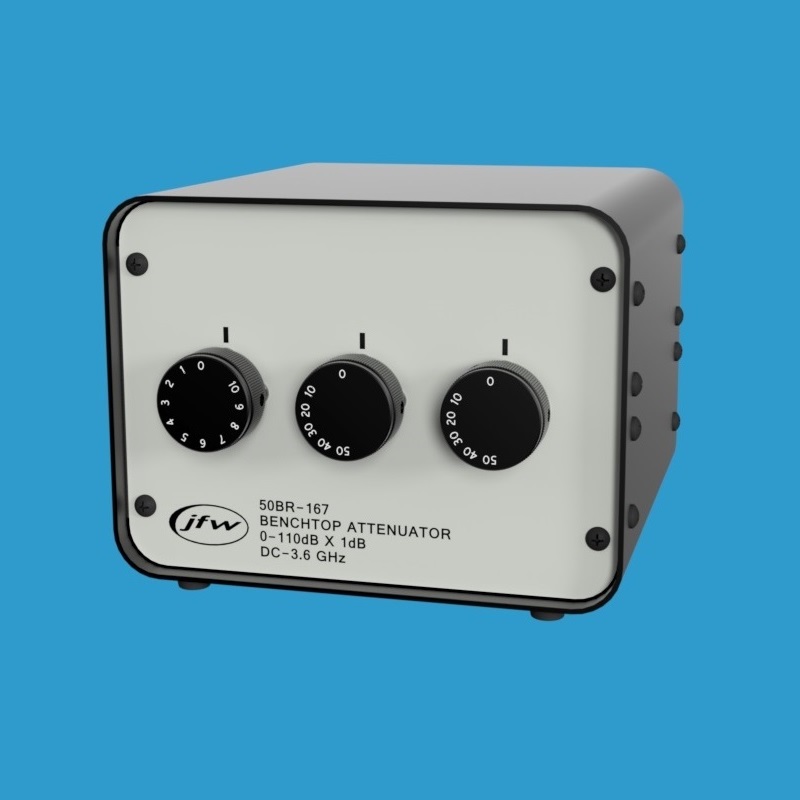

Model 50BR-167 is a 50 Ohm manual step attenuator in a benchtop enclosure.  The attenuation range is 0 to 110dB by 1dB steps.  It operates DC-3600 MHz and is rated for 2 Watts average of RF input power.  This attenuator assembly is constructed with a dual knob rotary attenuator and a single knob rotary attenuator that are connected in series with each other.  One knob is 1dB step.  The two other knobs are 10dB step.  With all three knobs set to their maximum setting, a total attenuation setting of 110dB can be achieved.  It is available with 50 Ohm coaxial RF connectors:  N, SMA or TNC female.  The two RF connectors are located on the rear panel.

Additional information

Weight 2.3 lbs
Connector Type

N Female, SMA Female, TNC Female
